Name: Endress+Hauser Level sensor Capacitive FTE20 FTE20-AA13AE41
Brand: Endress+Hauser
SKU: 2988469
Availability: BackOrder

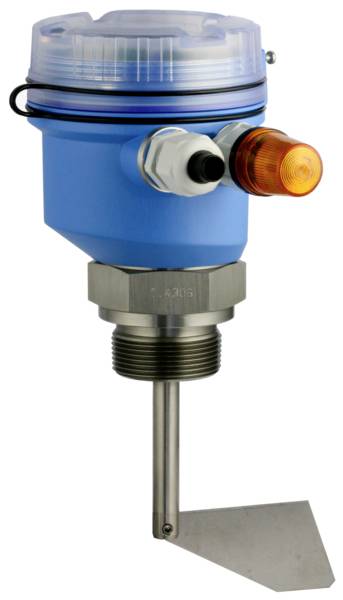

A blue device with a metal rod. It has an orange light and is intended for measurement or monitoring purposes.

Product type

Level sensor

Max. operating voltage

230 V AC

Model

Capacitive

Length

300 mm

Type

FTE20

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 275.00 / piece)

€ 275.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rotary wing limit switch swing arm limit switch FTE20-AA13AE41 230VAC standard; 304 shaft, 300mm

Approval: Ex-free range
Process connection; material: G1-1/2 external thread; PBT
Design, length: Shaft, 300mm
Power supply: 230VAC
Measurement blades; material: Standard; 304

Technical specifications

Product type: Level sensor

Type: FTE20

Max. operating voltage: 230 V AC

Operating voltage: 230 V AC (max)

Enclosure material: PBT

Model: Capacitive

Min. temperature: -20 °C

Max. temperature: 60 °C

Length: 300 mm

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2988469 Endress+Hauser Level sensor Capacitive FTE20 FTE20-AA13AE41

Description

The Soliswitch FTE20 is a swing arm switch for position detection in bulk materials. With its robust polymer housing and the compact design it is an ideal sensor for full, empty and demand messages. The optimized polymers make the device extremely robust and therefore suitable for use in areas subject to dust explosion hazards according to the latest standards.

This text is machine translated.

Features

Line-guided cable channel helps with the initial start-up, because it guides you to the clamps without clamping. A circuit diagram is included in the unit.
User-friendly thanks to undetachable screw cap, rotating housing and tool-free lid opening.
Easy testing during installation and - if necessary - quick fault search through function check very easily with a screwdriver. The paddle can be blocked without disassembling the device.
The visual rotating monitoring through the transparent lid is especially helpful in environments endangered by dust explosion.

Description

Features

Line-guided cable channel helps with the initial start-up, because it guides you to the clamps without clamping. A circuit diagram is included in the unit.
User-friendly thanks to undetachable screw cap, rotating housing and tool-free lid opening.
Easy testing during installation and - if necessary - quick fault search through function check very easily with a screwdriver. The paddle can be blocked without disassembling the device.
The visual rotating monitoring through the transparent lid is especially helpful in environments endangered by dust explosion.
