Name: Endress+Hauser RSG35
Brand: Endress+Hauser
SKU: 2989303
Availability: BackOrder

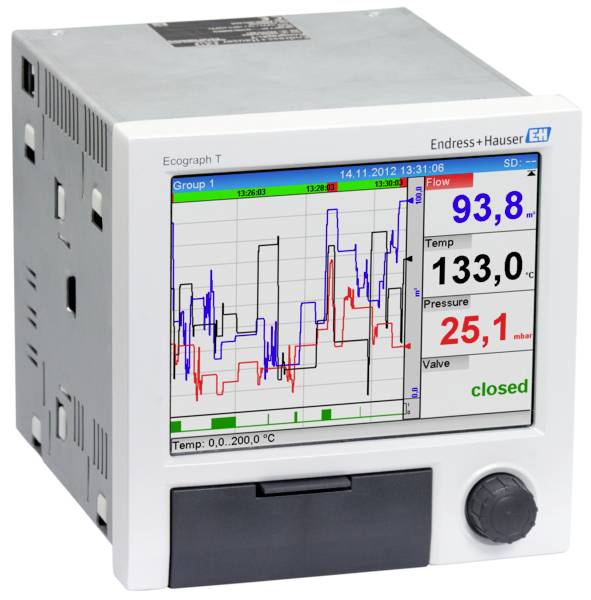

Digital recorder by Endress+Hauser with screen, displaying temperature (133.0°C), pressure (25.1 mbar) and valve status 'closed'.

Dispatches on Wed 21 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,995.00 / piece)

€ 1,995.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Graphic data manager screen recorder RSG35-B2D 4x universal 24V (-10%; +15%) AC/DC Modbus RTU/TCP slave + RS232/485 + Ethernet RJ45 + USB

Signal input 4x universal
POWER SUPPLY:24V (-10%; +15%) AC/DC
Communication: ModBus RTU/TCP Slave + RS232/485 + Ethernet RJ45 + USB

Technical specifications

Type: RSG35

Display technology: LCD

Operating voltage: 24 V DC/AC

Max. operating voltage: 27.60 V AC

Min. operating voltage: 21.60 V AC

Features: Colour display

Interfaces: USB

Interfaces: Ethernet

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989303 Endress+Hauser RSG35

Description

The Ecograph T RSG35 is a universal data manager that captures, displays and monitors all analogue or digital input signals. The measured values are saved safely and the limit values are monitored. On-site, the Navigator provides intuitive operation. Remote configuration and control at the PC is also possible thanks to the integrated web server - additional software does not need to be installed.

This text is machine translated.

Features

The data collected is stored tamper-proof in internal memory or on a separate SD card.
Intuitive operation via the Navigator (rotary/push button) on site or user-friendly operation on the PC via the integrated web server
Versatile with up to 12 universal inputs compatible with the most common measuring signals.
Programmable e-mail notification in the event of alarms and violations of limit values
5.7" TFT monitor for displaying measured values in up to four groups, with digital, bar and curve display.

Description

Features

The data collected is stored tamper-proof in internal memory or on a separate SD card.
Intuitive operation via the Navigator (rotary/push button) on site or user-friendly operation on the PC via the integrated web server
Versatile with up to 12 universal inputs compatible with the most common measuring signals.
Programmable e-mail notification in the event of alarms and violations of limit values
5.7" TFT monitor for displaying measured values in up to four groups, with digital, bar and curve display.
