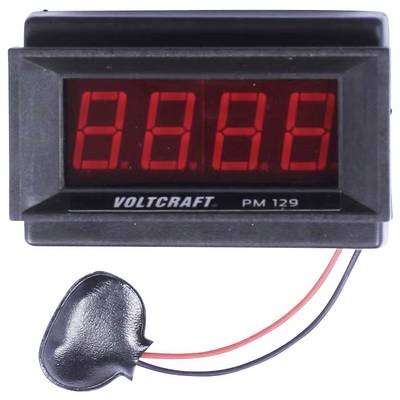

VOLTCRAFT PM 129 Digital rack-mount meter ± 199.9 mV
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 14.28
-29 %
€ 10.08
plus VAT.
Highlights & Details
LED Digital-Panel-Meter
- 2000 counts
Technical specifications
- Product type
Digital rack-mount meter
- Reading type
Voltage
- Type
PM 129
- Display (counts)
2000
- Dim
(W x H x D) 68 x 44 x 20 mm
- Width
68 mm
- Height
44 mm
- Interfaces
none
- Digit height
13 mm
- Depth
20 mm
- Digits
4
- Display (details)
LED
- Assembly dimensions
67 x 29 mm
- Total dimensions
44 x 68 mm
- Power supply (details)
9 V/DC 7 - 11
- Current consumption
60 mA
- Display range
1999
- Reading range
± 199.9 mV
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 106942 VOLTCRAFT PM 129 Digital rack-mount meter ± 199.9 mV
Conformity certificate
Conformity certificate 106942 VOLTCRAFT PM 129 Digital rack-mount meter ± 199.9 mV
Warranty Terms
Warranty Terms 106942 VOLTCRAFT PM 129 Digital rack-mount meter ± 199.9 mV
Description
This meter is suitable for many applications: With the help of series resistors, shunts, or simple circuit applications you can extend the 200 mV measurement range according to your wishes.
Features
- Input resistance: 100 MΩ
- Fixings: 2 x M3 threaded holes.
