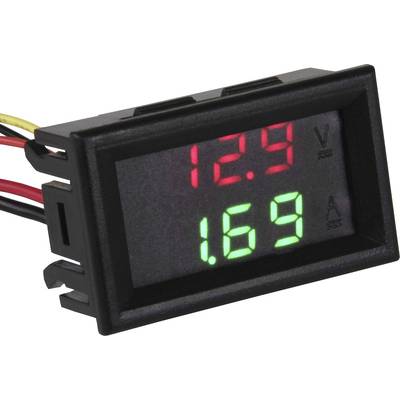

Joy-it VAM10010 Digital rack-mount meter
EAN:
Part number:
Item no:
Datasheet (PDF)
349 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€
Highlights & Details
Voltage/current measuring device 0 to 99 V/0 to 9.99 A
- Operating voltage 3.5 to 30 V (DC)
- Operation via measuring voltage possible
- Measuring range: 0 to 99 V/0 to 9.99 A
- Update rate: 500 ms
- 3-digit segment display for each measured value
- Display color: red (voltage)/green (power)
- Ideal for installation/Integration
Technical specifications
- Measuring range: 0 to 99.9 V/0 to 9.99 A
- Measuring accuracy: voltage: ± 0.5%/current: ± 1%
- Operating temperature: -10 to 65 °C
- Update rate: 500 ms
- Display mode: 3-digit segment display/per measurement value.
- Product type
Digital rack-mount meter
- Reading type
DC voltage
DC current
- Type
VAM10010
- Display technology
LED
- Display (counts)
6
- Dim
(L x W x H) 29 x 48 x 22 mm
- Weight
20
- Max. operating voltage
30 V
- Min. operating voltage
3.5 V
- Display lighting
green
red
- Features
Dual reading dial
- Width
48 mm
- Height
22 mm
- Length
29 mm
- Interfaces
3-core
Documents & Downloads
Datasheet
Datasheet 1874706 Joy-it VAM10010 Digital rack-mount meter
Datasheet 1874706 Joy-it VAM10010 Digital rack-mount meter
User & Safety Instructions
User & Safety Instructions 1874706 Joy-it VAM10010 Digital rack-mount meter
Description
The vam 10010 is an extremely compact voltage and current measuring device, which in a voltage range from 3.5 to 30 V works and directly via the measuring voltage can be operated. With the help of the integrated 0.28" displays can be measured values in the range of up to 100 V and 10 A be read easily.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Measuring device
