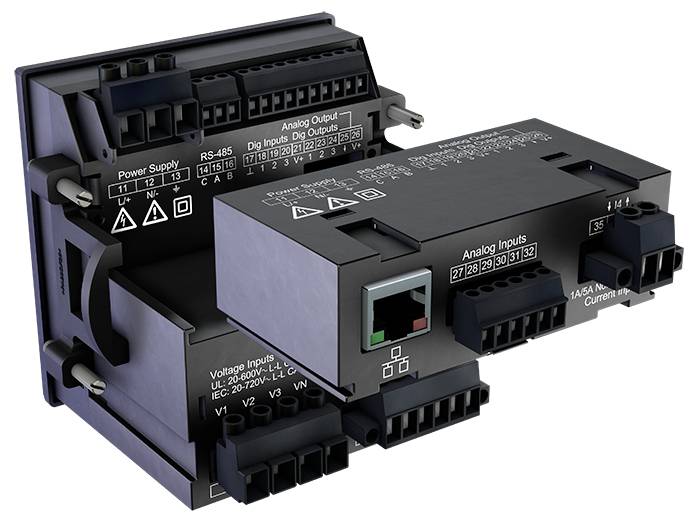

Janitza Modul 96-PA-RCM-EL Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Modular expandable network anaysator UMG 96-PA
- Record temperature and monitor via integrated comparatorEthernet interface and Modbus gatewayDifferential current measurement or DC power measurementNeutral conductor measurement (I4 – current measurement)
Technical specifications
- Product type
Expansion
- Reading type
Amperage
- Type
Modul 96-PA-RCM-EL
IP40 (Front)
IP54 (front)
IP20 (back panel)
- Operating voltage
230 V
- Dim
(W x H) 90.7 mm x 30.8 mm
- Weight
250 g
- Max. operating voltage
277 V AC
250 V DC
- Min. operating voltage
90 V AC
90 V DC
- Recess depth
75.7 mm
- Factory colour
Multicolour
- Width
90.7 mm
- Height
30.8 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2346635 Janitza Modul 96-PA-RCM-EL Expansion
User & Safety Instructions
User & Safety Instructions 2346635 Janitza Modul 96-PA-RCM-EL Expansion
Description
The device can be connected to an Ethernet interface, 2 differential current inputs, a temperature input, as well as a 4. Power input can be expanded quickly and easily. When using the Ethernet module, there are also additional connection options of up to 30 simple MID energy meters as slave devices, e.g. of type B23 312-10J.
This text is machine translated.
