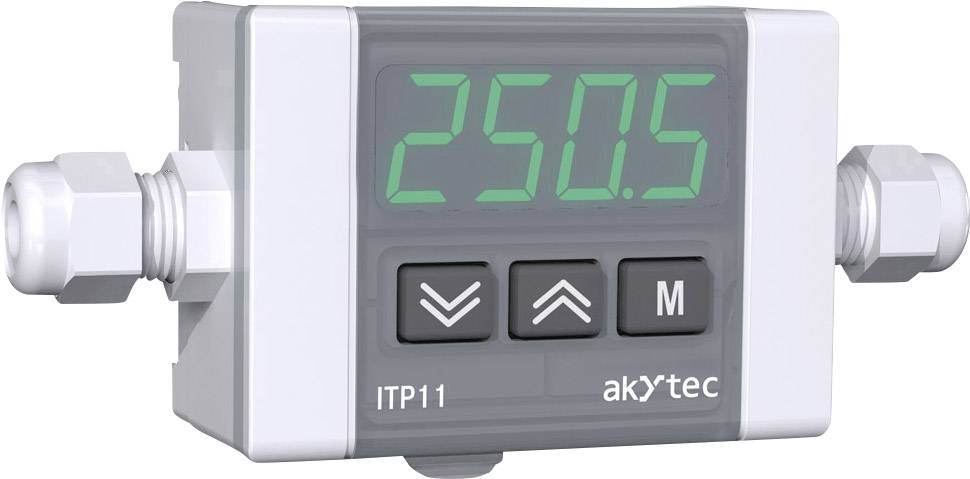

akYtec ITP11-G-W Meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 147.05 / piece)
€ 147.05
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Measurement rate 1s.
- Product type
Meter
- Reading type
DC current
- Reading range (min.)
4 mA
- Type
ITP11-G-W
- Reading range (max.)
20 mA
- Display technology
LED
IP65
- Display (counts)
9999
- Dim
(L x W x H) 28 x 70 x 50 mm
- Weight
120 g
- Display lighting
green
- Reading category
CAT I
- Width
70 mm
- Height
50 mm
- Length
28 mm
- Digit height
14 mm
Documents & Downloads
Datasheet
Datasheet 1603601 akYtec ITP11-G-W Meter
User & Safety Instructions
User & Safety Instructions 1603601 akYtec ITP11-G-W Meter
Conformity certificate
Conformity certificate 1603601 akYtec ITP11-G-W Meter
Description

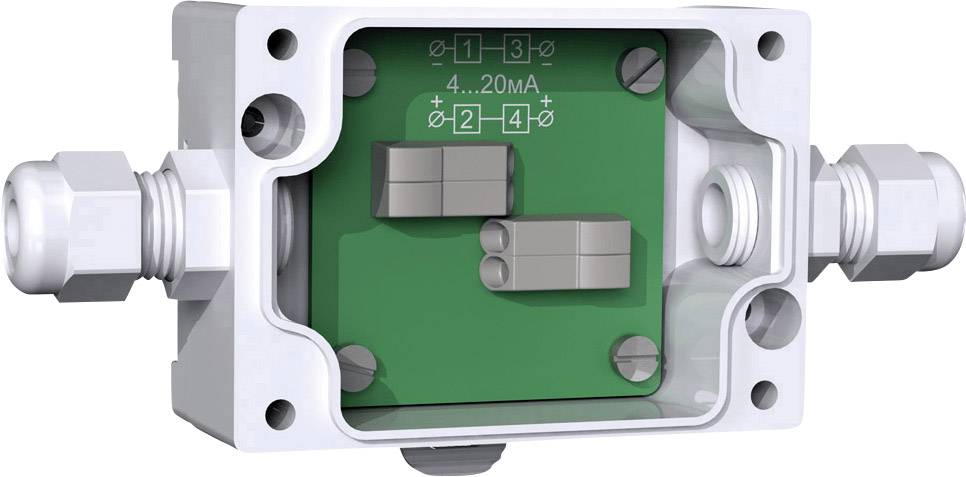

The ITP11-W is a universally usable display for monitoring industrial processes. The displayed measured values can be scaled and there is also a function to calculate the square root. The ITP11-W is for any sensors or transmitters with 4 - 20 mA output. It requires no separate auxiliary voltage, but is directly via the measuring power. It has a compact housing, which is suitable for wall mounting as well as for DIN-rail mounting is suitable. In addition, the device on pipes with up to 200 mm diameter.
Areas of application:
The 4 - 20 mA process display ITP11-W is very well suited for quick and convenient structure of visualisation systems for different processes, for example, in the water supply or in the thermal processing. The ITP11-W is characterised by minimum dimensions and can be used as a low-cost additional display of the measured values on site as well as a component of a complex visualization.
This text is machine translated.
Areas of application:
The 4 - 20 mA process display ITP11-W is very well suited for quick and convenient structure of visualisation systems for different processes, for example, in the water supply or in the thermal processing. The ITP11-W is characterised by minimum dimensions and can be used as a low-cost additional display of the measured values on site as well as a component of a complex visualization.
This text is machine translated.
Features
- Measurement and display of the standard signal 4 - 20 mA
- 4-set, 7-Segment LED display (character height 14 mm)
- Attenuation of the measuring signal.
- Calculation of the square root
- Error display in case of exceeding the measuring limit
- Password protection against unauthorized access
- Attaching to a pipe (ø 20 - 200 mm), on a wall or on the DIN-rail.
