Buy akYtec ITP16 Digital rack-mount meter

Digital display shows '250.5'. Control unit to the left with labels such as 'akytec', 'ITP16', 'IP65/IP20', '24V'.

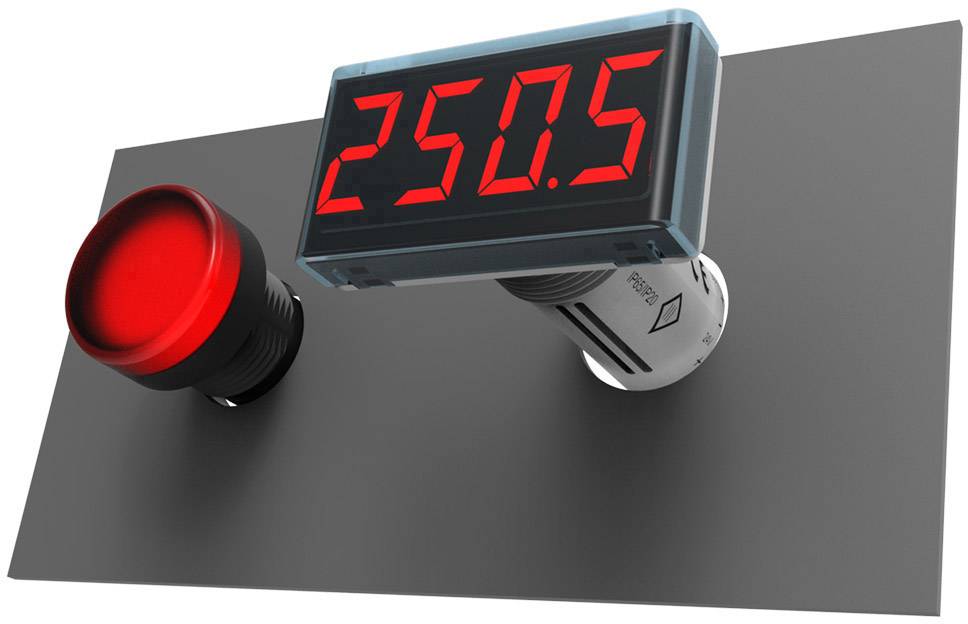

Display showing a red numerical value of '250.5' in digital lettering on a black background, with a red button and silver switch beside it.

Electrical plug connector with QR code for displaying the manual. Cable connections visible on the right.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Temperature display ITP 16 (red)

Measuring and displaying the signal values from different resistance thermometers and thermocouples.
Linear voltage signal scaling
Adjustable decimal point position
Display range -999 … +9999
On/Aus-Regelung with a NPN output
Square root function (for special transmitter)
Digital filter
Alarm function (flashing with setpoint is exceeded)
Error message with a lower/exceeding the Measurement Limits
Error message in the event of wire break or short circuit

Technical specifications

Power consumption: 1 W
Input: 1
Input signal: TC (K, J, N, T, S, R, B, A, L, A-2, A-3), RTD (Pt50, Pt100, Pt500, Pt1000)
Sampling time max.: 2s
Accuracy: ± 0.25% FS
Temperature influence: ≤ 0.2%/10 °C
Input resistance: 0-1V, -50 … +50 mV 250kOhm
Output: 1
Ambient temperature: -40 to +60 °C.

Product type: Digital rack-mount meter

Reading type: Temperature

Type: ITP16

Display technology: LED

: IP65 (on front)/IP20 (on back)

Display (counts): 9999

Dim: (L x W x H) 65 x 26 x 48 mm

Weight: 30 g

Display lighting: red

Factory colour: Red

Reading category: CAT I

Width: 26 mm

Height: 48 mm

Length: 65 mm

Documents & Downloads

Datasheet

Datasheet 1842449 akYtec ITP16 Digital rack-mount meter

User & Safety Instructions

User & Safety Instructions 1842449 akYtec ITP16 Digital rack-mount meter

Description

The Itp 16 is a temperature display for monitoring and control of industrial processes. The display has a configurable analogue input for signals from resistance thermometers and thermocouples, and via a digital output. This NPN transistor output, there is a load of up to 200 mA/42 VDC control, whereby a two-point control can be implemented. This can also be output as an alarm output can be used. This temperature display also supports an alarm function. If this function is switched on, the display will start with a frequency of approximately 2 Hz to flash, if the process value exceeds the setpoint values. The device has a compact, standardised design and fits in a standard 22.5 mm bore. This enables a quick and easy installation and many displays can be used in a switch cabinet or in a control panel can be accommodated.

This text is machine translated.
