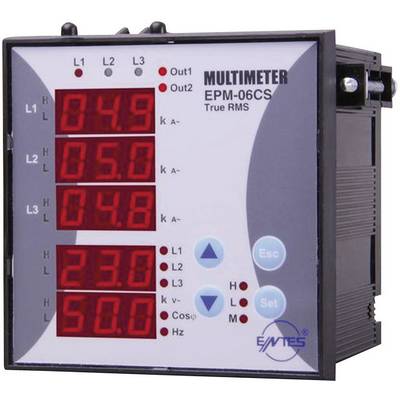

ENTES EPM-06-96 Digital rack-mount meter Voltage, current, frequency, operating hours, Total Hours
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 134.45 / piece)
€
Highlights & Details
Programmable 3-PHASE BUILD-AC-Multimeter EPM -06-96
- Operating voltage 230 V/AC or 45 - 265 V/AC/DC
- Measuring range 10 - 300 V/AC (L-N) and 10 - 500 V/AC (L-L)
- 3-phase voltage measurement
- 3-phase current measurement
- Cos-phi measurement
- Frequency measurement.
- Neutral current measurement
- Demand values
- Max./Min. Explanation
- Password protection
Technical specifications
- Measuring range 10 - 300 V/AC (L-N), 10 - 500 V/AC (L-L)
- Measuring range for voltage with converter: 10 - 400 KV
- Input impedance: 1.8 MΩ
- Current measuring range: 50 mA - 5.5 A
- Current measuring range with converter: 50 mA - 10 kA
- Nominal current: 5.5 A
- Accuracy: 1% ± 1 Digit
- Requirements/Demand Time: 1 - 60 min, programmable
- Frequency: 45 - 65 Hz
- Power consumption< 4 VA
- Delay Time: 0 - 999.9 s pre-set for switch on and off times
- Operating temperature: -5 to +50 °C
- Product type
Digital rack-mount meter
- Reading type
AC voltage
AC current
Frequency
Voltage
Amperage
cos phi
- Type
EPM-06-96
- Display technology
LCD
IP40 (Front)
- Recess width
90 mm
- Display (counts)
999
- Dim
(W x H x D) 96 x 96 x 80 mm
- Weight
0.56 kg
- Display lighting
red
- Width
96 mm
- Height
96 mm
- Frame width
96 mm
- Frame height
96 cm
- Digit height
10 mm
- Depth
80 mm
- Reading range (min.)
10 V AC
0 A/AC
- Display (details)
Red, LED
- Power supply (details)
230 V/AC, ±10% or 45 - 265 V/AC/DC
- Reading range
Voltage, current, frequency, operating hours, Total Hours
- Reading category
CAT III 300 V
Documents & Downloads
Datasheet
Datasheet 128715 ENTES EPM-06-96 Digital rack-mount meter Voltage, current, frequency, operating hours, Total Hours
User & Safety Instructions
User & Safety Instructions 128715 ENTES EPM-06-96 Digital rack-mount meter Voltage, current, frequency, operating hours, Total Hours
Conformity certificate
Conformity certificate 128715 ENTES EPM-06-96 Digital rack-mount meter Voltage, current, frequency, operating hours, Total Hours
Description
The multimeter measures the real effective values of the EPM -06-96 3 phase currents (IL1, IL2, IL 3), the real effective values of the 6 phase voltages (VL1-N, VL2-N, VL3-N, VL1-L2, VL2-L3, VL3-L1), frequency, cos-phi each phase and mean value of 3-phase, maximum demand in adjustable time intervals as well as maximum and minimum voltages.
EPM -06-96 has three displays for the currents, a display for the voltages and a common display for cos phi and frequency.
This text is machine translated.
EPM -06-96 has three displays for the currents, a display for the voltages and a common display for cos phi and frequency.
This text is machine translated.
Features
- Max. /Min. Values
- Max. Required
- Password protection
