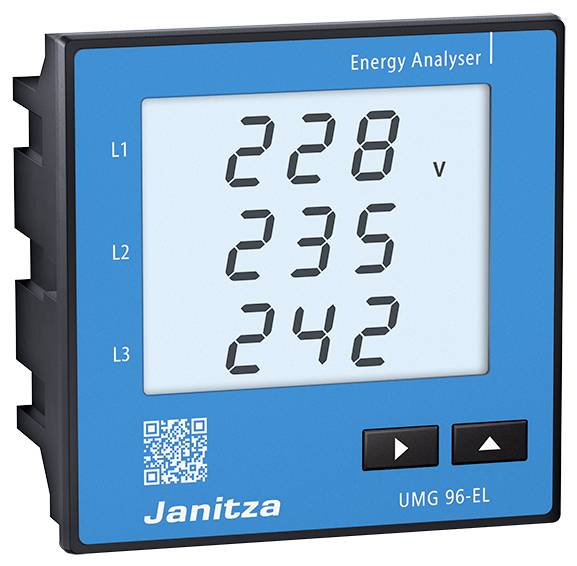

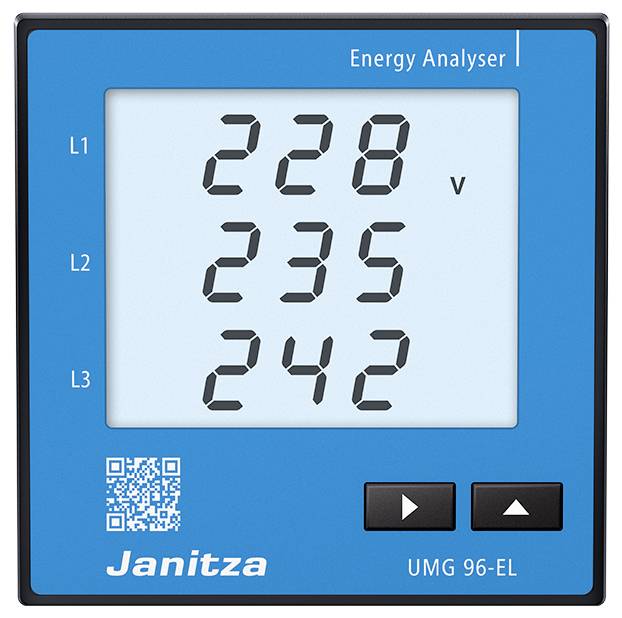

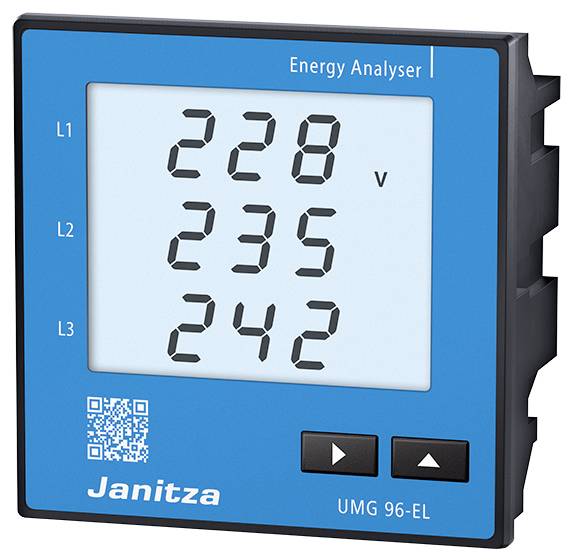

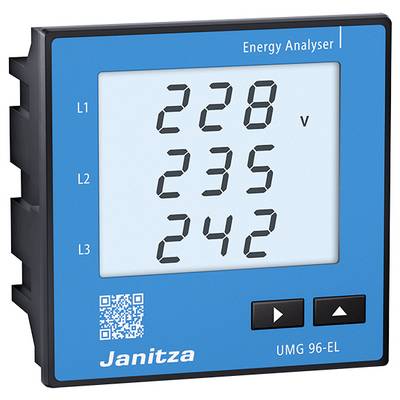

Janitza UMG 96-EL, 24-90V (UL) Power analyzer
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Working class 0.5 S
- Current 0.2%
- Voltage 0.2%
- Type
UMG 96-EL, 24-90V (UL)
IP20
- Dim
(L x W x H) 42 x 97 x 96 mm
- Factory colour
Blue
Black
- Height
96 mm
- Length
42 mm
- Width
97 mm

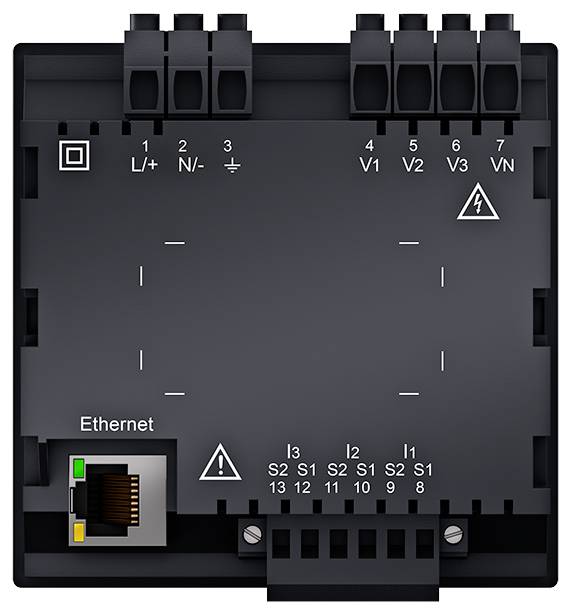

- Interfaces
RJ45
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Reading type
Voltage
Amperage
Active power
Reactive power
Apparent power
Frequency
Active energy
Temperature
- Min. operating voltage
24 V
- Max. operating voltage
90 V
- Product type
Power analyzer
Documents & Downloads
Datasheet
Datasheet 3412970 Janitza UMG 96-EL, 24-90V (UL) Power analyzer
User & Safety Instructions
User & Safety Instructions 3412970 Janitza UMG 96-EL, 24-90V (UL) Power analyzer
Description
The economical energy analyzer UMG 96-EL supports you in reducing your power costs as well as in planning. The precise measurement data enable you to optimize your power consumption and implement energy management.
The UMG 96 EL can be easily integrated into existing systems so that the measurements can be easily evaluated. The energy analyzer can be connected directly to the system via the Ethernet port and the front panel display allows easy reading of measurements directly on the spot.
The energy analyzer also records numerous voltage quality parameters that may indicate power malfunctions and anomalies. This allows you to deal with malfunctions, protect your equipment from damage and early wear and improve your energy efficiency.
In addition, the integrated comparators offer you the possibility to monitor limit values and to be automatically alerted when this is exceeded. This allows you to instantly learn about critical electrical events in your network and respond appropriately, ensure your production continuity and maintain safe building operations.
This text is machine translated.
The UMG 96 EL can be easily integrated into existing systems so that the measurements can be easily evaluated. The energy analyzer can be connected directly to the system via the Ethernet port and the front panel display allows easy reading of measurements directly on the spot.
The energy analyzer also records numerous voltage quality parameters that may indicate power malfunctions and anomalies. This allows you to deal with malfunctions, protect your equipment from damage and early wear and improve your energy efficiency.
In addition, the integrated comparators offer you the possibility to monitor limit values and to be automatically alerted when this is exceeded. This allows you to instantly learn about critical electrical events in your network and respond appropriately, ensure your production continuity and maintain safe building operations.
This text is machine translated.
Features
- Extensive energy measurement data, high accuracy: 0.5S effective work
- Direct Ethernet connection with Modbus TCP/IP
- 40. Harmonic
- THD-I / THD-U DISTORTION FACTOR
- Rotating field components
- 3 current measurement channels
- Integrated comparator
