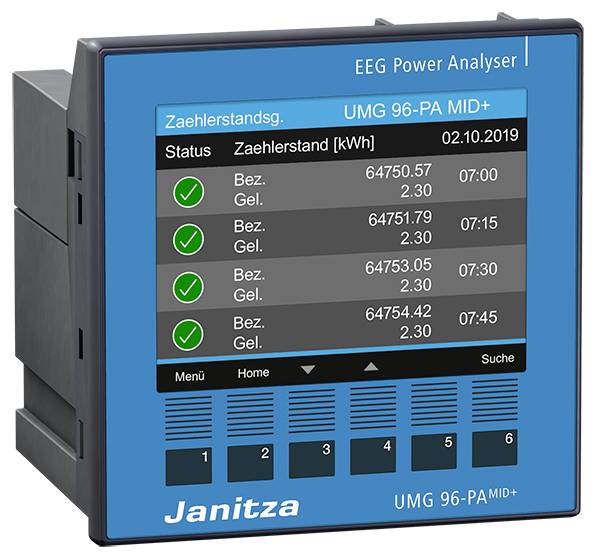

Janitza UMG96-PA-MID+ Power analyzer
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 550.42 / piece)
€ 550.42
plus VAT.
Only 5 Piece(s) available
Highlights & Details
Modular expandable network analyzer with MID and counter status
- 2 years tamper-proof measurement data memory for meter reading process
- Supply voltage 90 V - 277 V (50/60) Hz or 90 V - 250 V DC
- INSTALLATION CATEGORY 300 V CAT CAT III.
- Measure in TN- and TT-power
- Measurement of harmonics up to 40.
- Active work class 0.2 S.
- EU-type examination certificate VDE-40048947
- Tested according to EN 50470-1, EN 50470-3, CLC TR 50579
- Input voltage range 3 x 57/100 to 3 x 277/480 V.
- Accuracy class B according to EN 50470-1
- Pulse value of the S0 interface: Without converter 10000 Imp/kWh;
- Automatic adjustment of the pulse value when using measuring transducers
- 3 voltage measurement inputs
- Measurement in 3-phase 4-conductor systems up to 417 V/720 V (+-10%) IEC
- Measurement in 1-phase 2-conductor systems up to 480 V (+-10%)
- 3 current measuring inputs
- Nominal current 5A/2A/1A adjustable (MID-compliant)
- Resolution 0.1 mA
- Each 3x digital inputs and outputs (one is defined)
- 1x analogueue output
- 1x RS485 (Modbus RTU)
Technical specifications
- Product type
Power analyzer
- Reading type
Active energy
- Reading range (min.)
5 mA
- Type
UMG96-PA-MID+
- Reading range (max.)
6 A
- Display technology
Graphics
- Dim
(L x W x H) 86 x 96 x 96 mm
- Factory colour
Multicolour
- Reading category
CAT III 600 V
CAT II 300 V
- Width
96 mm
- Height
96 mm
- Length
86 mm
- Interfaces
RS485
- Interfaces
RS485
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2346634 Janitza UMG96-PA-MID+ Power analyzer
User & Safety Instructions
User & Safety Instructions 2346634 Janitza UMG96-PA-MID+ Power analyzer
Description
ENERGY METER UMG 96-PA MID+. MID certified. Meter reading process certified according to PTB-A 50.7, with clock, battery and data storage
