Buy EnerSys Genesis NP24-12 VRLA 12 V 24 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, VDS certificat

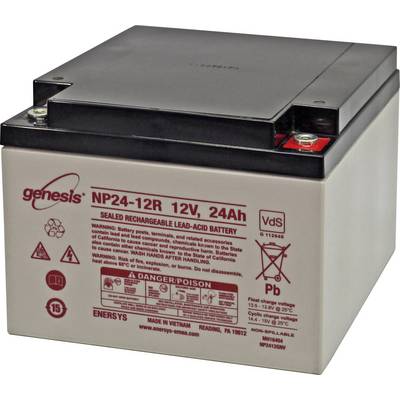

12V, 24Ah Lead-Acid Battery by Genesis, Model NP24-12R. Sealed and rechargeable. Please observe important notes on label.

Several lead-acid batteries of various sizes and shapes, labelled with technical specifications and safety warnings.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Report legal concerns

Highlights & Details

EnerSys Genesis NP lead-acid battery

VDS certificate
High energy density
Fixed cycle

Technical specifications

Temperature range -15 , +50 °C
Lifetime up to 1000 cycles

Dim: (W x H x D) 166 x 125 x 175 mm

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 24 Ah

Height: 125 mm

Weight: 9.07 kg

Content: 1 pc(s)

Type: Genesis

Rechargeable: Yes

Connector: M5 connector

Depth: 175 mm

Width: 166 mm

Features: Maintenance-free
VDS certificate
Low self-discharge levels
High number of charge cycles

VdS No.: G 106044

VDS certification: Yes

Documents & Downloads

Datasheet

Datasheet 1593771 EnerSys Genesis NP24-12 VRLA 12 V 24 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, VDS certificat

User & Safety Instructions

User & Safety Instructions 1593771 EnerSys Genesis NP24-12 VRLA 12 V 24 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, VDS certificat

Certificate

Certificate 1593771 EnerSys Genesis NP24-12 VRLA 12 V 24 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, VDS certificat

Security datasheet

Security datasheet 1593771 EnerSys Genesis NP24-12 VRLA 12 V 24 Ah AGM (W x H x D) 166 x 125 x 175 mm M5 connector Maintenance-free, VDS certificat

Description

Excellent performance with VDS certification.
Impresses with a high energy density, minimum self-discharge, cycle stability and good temperature behavior. Made of 99.99% pure lead tin with very thin plates for maximum performance and reliability. The pure acid is safe in the fleece concentrated and provides an efficient operation. The sturdy casing is shock and vibration and flame-resistant.
The lead battery can be installed in any position and offers a variety of applications such as alarm systems, warning detector, mobile applications, cash systems, telecommunications, emergency lighting, monitoring systems, geophysical equipment, e-mobility, test devices, alternative energy, power tools and much more.

This text is machine translated.
