Name: Esotec 101766 Solar fountain system Adria pump set 25 W
Brand: Esotec
SKU: 2302356
Availability: BackOrder

Two solar modules and a pump with connecting pieces, possibly designed for a solar pump system.

Black water pump with ventilation slots and adjustable hose connection, viewed from the side.

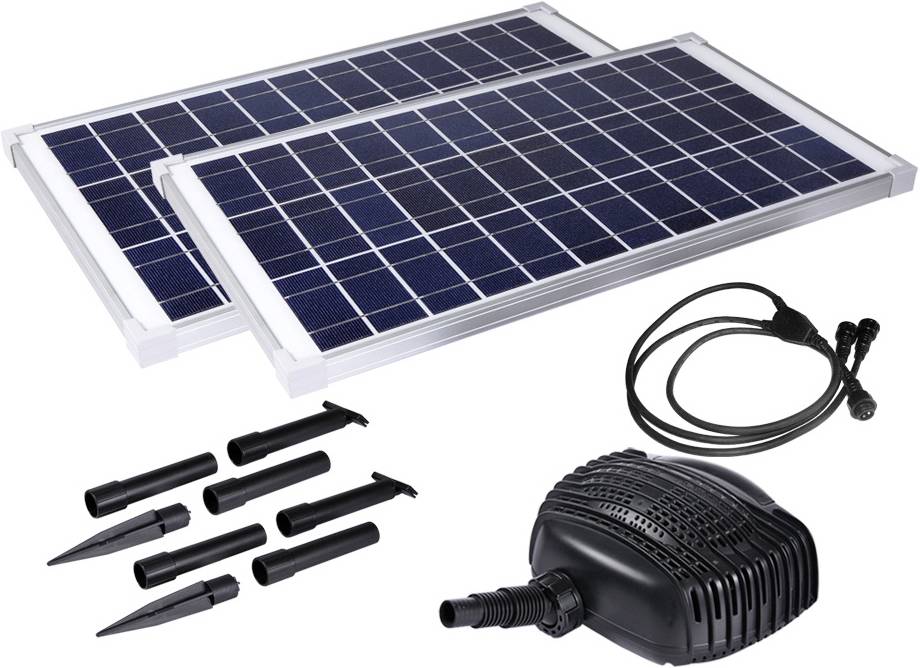

Solar panel set with two panels, cables, and mounting pins, suitable for use in portable solar projects.

Waterfall in a verdant garden, surrounded by boulders, ferns and dense bushes, cascading into a small pond.

Exploded diagram of a headlight with individual components: cover, lens, lamp holder, and screws. Illustrates structure and assembly.

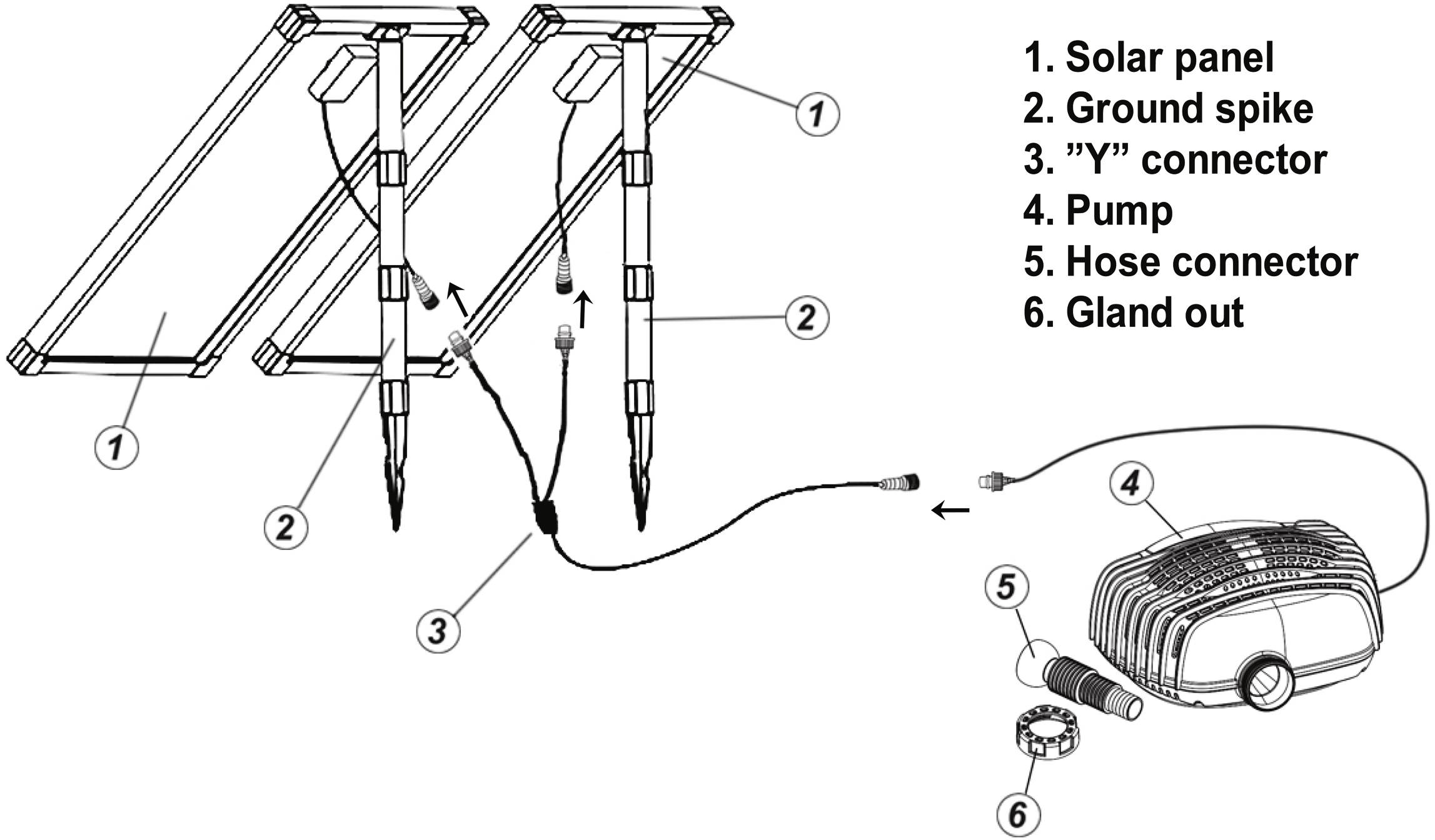

'Diagram shows solar panel set with ground rods, Y-connector, pump, hose connection, and cable entry.'

1/6

EAN:

Part number:

Item no:

Dispatches on Wed, 10 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Solar fountain system Adria pump set

IP68
Max head 3 m
Max flow 3400 l / h
No electricity costs through solar energy
Ideal for streams or filter systems
2 pcs. Powerful 25 W crystalline solar modules
Delivery rate max. 3400 l / h
Delivery max. 3 m
Hose connection 25 mm, 32 of 38 mm
Electronic, low-wear stream pump with electronic drive
Low voltage submersible pump with dry run protection
Requires sunlight to function

Technical specifications

Product type: Solar pump set

Max. delivery head: 3 m

Max. feed rate: 3400 l/h

Operating voltage: 12 V
18 V

Type: Without battery box

Cable length: 5.00 m

Pump nominal voltage: 18 V

Nominal pump power: 25 W

Panel nominal voltage: 18 V

Module nominal power: 25 Wp

Dim: (L x W x H) 222 x 148 x 295 mm

Length: 222 mm

Width: 148 mm

Height: 295 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2302356 Esotec 101766 Solar fountain system Adria pump set 25 W

Description

This particularly powerful waterfall pump is supplied with energy by two 25 W solar modules.
The high flow rate ideal for impressive streams. When the sun shines on the solar modules, you get a lively stream and thus an optimal water circulation in your garden pond. And all this for free!
Ready to plug, mounted in minutes!

This text is machine translated.

Features

2 x 25 W crystalline solar Panel
Maximum height 0.3M
Maximum flow rate: 380 litres / hour
Protection against dry running
Long-lasting, hard-wearing pump with an electronic drive
This particularly powerful waterfall pump is supplied with energy by 2 pieces of 25 W solar modules.
Due to the high delivery rate it is ideally suited for impressive brooks. When the sun shines on the solar modules, you get a vivid stream course and thus optimum water circulation in your garden pond. All this for free!
Ready to plug in, assembled in minutes!

Hints

Protect pump against frost - do not operate in winter!

Description

Features

2 x 25 W crystalline solar Panel
Maximum height 0.3M
Maximum flow rate: 380 litres / hour
Protection against dry running
Long-lasting, hard-wearing pump with an electronic drive
This particularly powerful waterfall pump is supplied with energy by 2 pieces of 25 W solar modules.
Due to the high delivery rate it is ideally suited for impressive brooks. When the sun shines on the solar modules, you get a vivid stream course and thus optimum water circulation in your garden pond. All this for free!
Ready to plug in, assembled in minutes!
