Buy Eurolite SBM-16 19" power distributor 6x 2 U

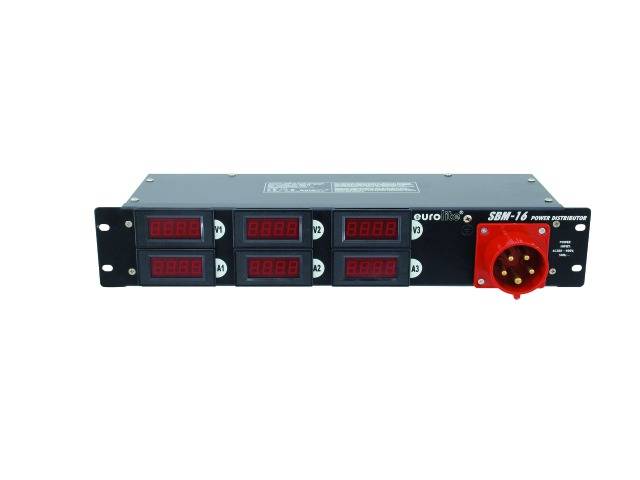

Electrical distribution board with multiple digital displays and connections, designed for distributing electrical energy in professional environments.

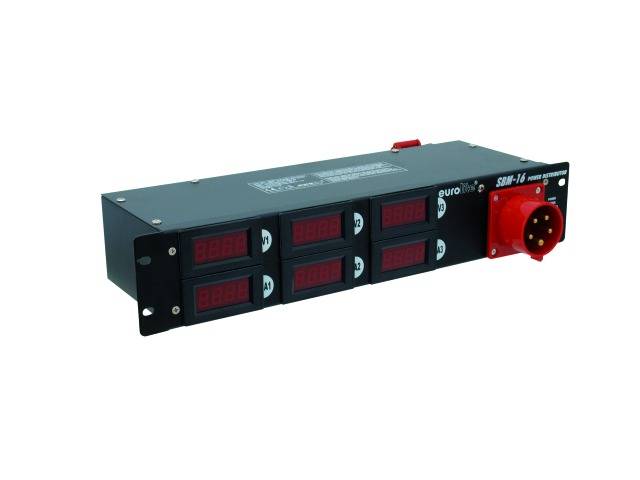

'Power distribution unit with six digital displays and red industrial connector, suitable for professional audio and video applications.'

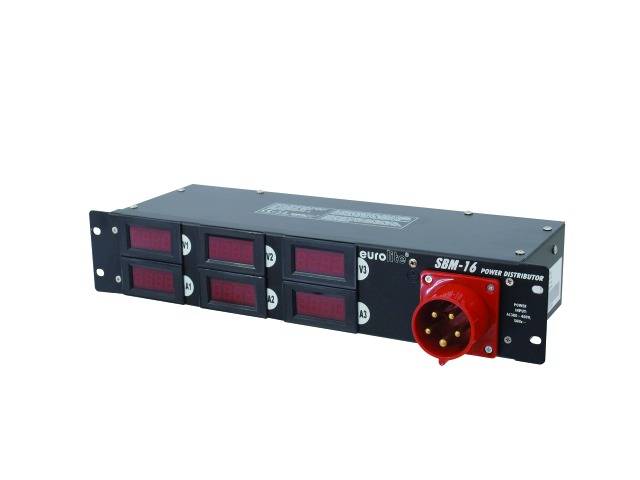

'SBM-16 Power Distribution Unit' with six digital displays, a red high-current socket on the right side and black casing.

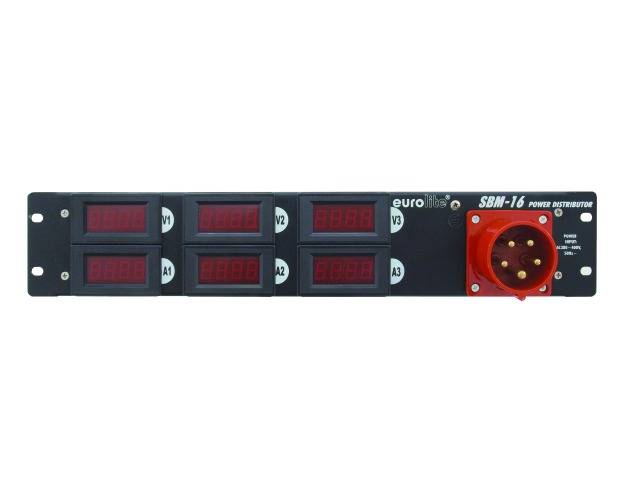

Black electrical distribution board 'SBM-16' with red digital displays and red connector on the right, against a white background.

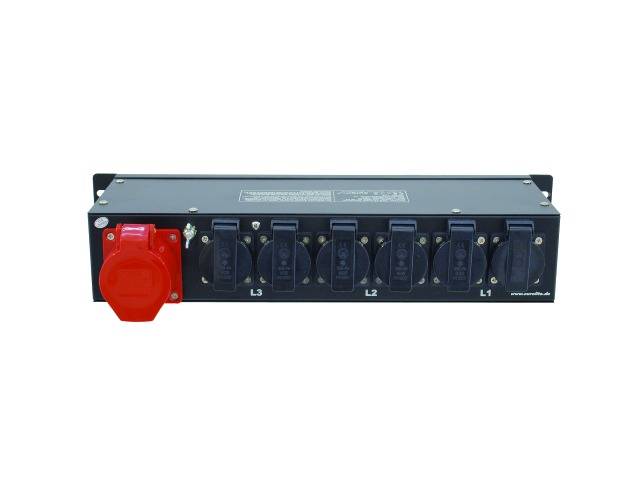

A black electric distribution block with multiple blue Schuko sockets and one red industrial socket.

A distribution box with multiple socket outlets, from L1 to L3, and a red main switch on the left. Suitable for industrial applications.

1/6

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 214.29 / piece)

€ 214.29

plus VAT.

Report legal concerns

Highlights & Details

Eurolite SBM-16 current distributor 16 A

Convenient 16-A-power distribution in the 483-mm housing (19")

Technical specifications

Power supply: 380-400 V AC, 50 Hz
Max. Total power: 11040 W
Max. Total power/Phase: 3680 W
Max. Nominal current/phase: 16 A
Height: 2 U
Mass (482 x 245 x 88 mm LxTxH):
Net weight: 4 kg

Rack unit: 2 U

Inputs: CEE plug (5-pin, 16 A)

Outputs: CEE connector (5-pin, 16 A)
PG connector

No. of CEE 16 A connectors: 1

No. of PG sockets: 6

Features: Switchable

Width: 513 mm

Height: 155 mm

Weight: 3.6 kg

Product type: 19" power distributor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 593681 Eurolite SBM-16 19" power distributor 6x 2 U

Description

Convenient 16-A-power distribution in the 483-mm housing (19") · Particularly suitable for building large electrical distributions · Only 2 HE needed for rack mounting · 16-A-AC input · Voltage and current display of the individual phases · 16-A three-phase output via device mounting socket on the back · 6 safety sockets on the back of the unit (2 per phase).

This text is machine translated.
