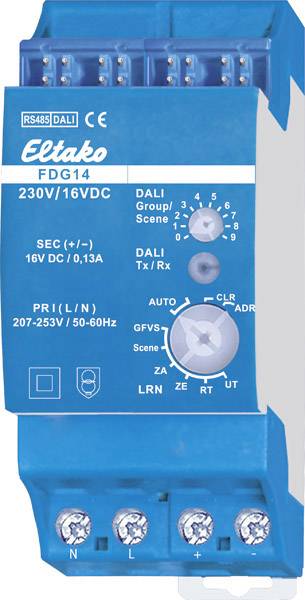

FDG14 Eltako Gateway DIN rail

DALI gateway, bidirectional. Stand-by loss only 1 watt. Connection to the Eltako-RS485 bus. Cross-wiring only bus with jumper. Supply voltage 230V at terminals N and L. 16V DC/130mA are provided at terminals DALI +/- for up to 64 DALI devices. This gateway is used to control DALI devices with EnOcean radio transmitters. From production week 14/16 the groups 0-15 can be activated and the broadcast command can also be issued. The DALI scenes 0-15 can also be called up. DALI installations that are to be fully controlled with the FDG14 must therefore be configured in groups 0-15. The configuration software or control modules for this are offered by well-known manufacturers of DALI components (e.g. Tridonic DALI XC). The FDG14 internally stores the dimming value for each of the groups 0-15 and provides this value as feedback. The same message telegrams are generated as for a FUD14. The FDG14 occupies 16 BR14 device addresses. The feedback signals of the device addresses correspond in ascending order to the dimming values of DALI groups 0-15. The feedback signals can be individually switched from dimming value message frame (%) to pushbutton message frame (on/off) per group with PCT14. This means that BR14 actuators can be controlled with the feedback signals. The FDG14 fulfills the function of the DALI master and the DALI power supply. Using the rotary switches, only buttons for groups 0-8 and DALI scenes 0-9 can be programd. Control telegrams for groups 9-15 and scenes 10-15 are only possible by entries in PCT14. Caution: Pushbuttons always require a double-click when manually programming to the FDG14! For CLR, one single click is sufficient. A direction button or universal button with the same ID and the same key cannot be taught in several times in different groups. The last selected group always applies. A button can therefore switch only one group or all groups with broadcast. One FBH can also be taught in per group. With manual teaching, this always has a brightness independant effect. With PCT14 you can also set the brightness threshold. The delay time for switching off after non-motion can be set together in minutes (1..60) for the FSH of all groups. Default is 3 minutes.
