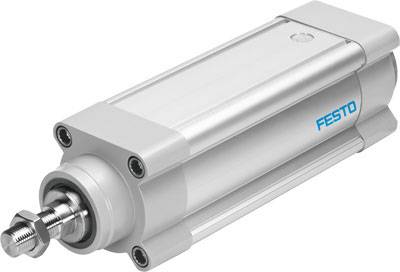

FESTO Linear actuator ESBF-BS-50-100-5P 8022590 Stroke length 100 mm 1 pc(s)
Product type
Linear actuator
Stroke length
100 mm
Speed (max.)
0.33 m/s
Manufacturer part #
8022590
Type
ESBF-BS-50-100-5P
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,535.00 / piece)
€ 1,535.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Linear actuator ESBF-BS-50-100-5P
Technical specifications
- Electric cylinder ESBF-BS -50-100-5P ball screw drive, electrically driven spindle the rotary motion of the motor into a linear movement of the piston rod. Working stroke=100 mm, size = 50, Hub = 100 mm, Piston Rod Thread = M16x1.5, reversing clearance = 30 µm, material aluminum alloy cylinder pipe = Kneading
- Product type
Linear actuator
- Stroke length
100 mm
- Speed (max.)
0.33 m/s
- Manufacturer part #
8022590
- Type
ESBF-BS-50-100-5P
- Size
50
IP40
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
