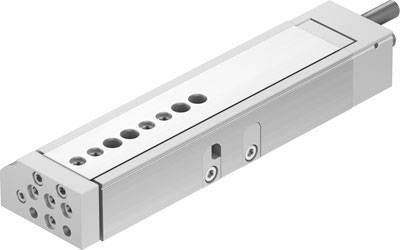

Pneumatic linear actuator with a rectangular housing, multiple mounting holes, and a protruding piston rod end.

Pneumatic linear actuator with a rectangular housing, multiple mounting holes, and a protruding piston rod end.

FESTO

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 919.00 / piece)

€ 919.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Mini slider DGSL-10-80-PA

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Mini slider

Stroke length: 80 mm

Max. operating pressure: 8 bar

Material (details): Aluminum wrought alloy

Manufacturer part #: 543947

Type: Mini slide DGSL-10-80-PA for position detection, with highly precise heavy-duty ball bearing guide, both elastic damping without metallic end position (P). Hub = 80 mm, adjustable end position range/length front = 51.5 mm, adjustable end position range/length rear = 20 mm, piston diameter = 12 mm, operating mode drive unit = Yoke

Weight: 755 g

Sealant: HNBR

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 12 mm

Force (max.): 68 N

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes
