Buy FESTO Mini slider 543968 DGSL-12-150-PA Stroke length: 150 mm 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

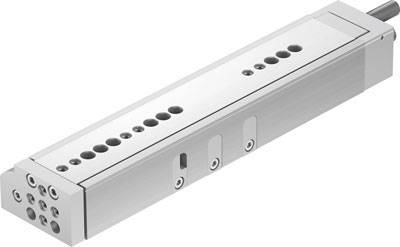

A rectangular metal pneumatic cylinder with multiple ports and a rod on the right-hand side.

A rectangular metal pneumatic cylinder with multiple ports and a rod on the right-hand side.

FESTO

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,249.00 / piece)

€ 1,249.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Mini slider DGSL-12-150-PA

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Mini slider

Stroke length: 150 mm

Max. operating pressure: 8 bar

Material (details): Aluminum wrought alloy

Manufacturer part #: 543968

Type: Mini slide DGSL-12-150-PA for position detection, with highly precise heavy-duty ball bearing guide, both elastic damping without metallic end position (P). Hub = 150 mm, adjustable end position range/length front = 87 mm, adjustable end position range/length rear = 25.5 mm, piston diameter = 16 mm, operating mode drive unit = Yoke

Weight: 1545 g

Sealant: HNBR

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 16 mm

Force (max.): 121 N

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes
