Buy FESTO Mini slider 543981 DGSL-12-100-Y3A Stroke length: 100 mm 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

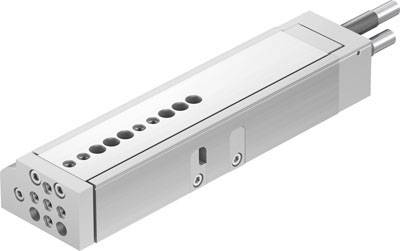

Metallic pneumatic linear actuator with multiple connection options and integrated sealing.

Metallic pneumatic linear actuator with multiple connection options and integrated sealing.

FESTO

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,269.00 / piece)

€ 1,269.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Mini slider DGSL-12-100-Y3A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Mini slider

Stroke length: 100 mm

Max. operating pressure: 8 bar

Material (details): Aluminum wrought alloy

Manufacturer part #: 543981

Type: Mini slide DGSL -12-100-Y 3A for position detection, with highly precise heavy-duty ball bearing guide and a very high repeatability, both hydraulic shock absorbers (Y3). Hub = 100 mm, adjustable end position range/length front = 68 mm, adjustable end position range/length rear = 25.5 mm, piston diameter = 16 mm, operating mode drive unit = Yoke

Weight: 1265 g

Sealant: HNBR

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 16 mm

Force (max.): 121 N

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: not relevant
