Buy FESTO Mini slider 543987 DGSL-16-50-PA Stroke length: 50 mm 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

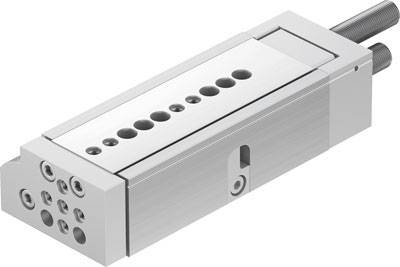

A rectangular, metal pneumatic cylinder with multiple holes on the top surface and two connections on the rear side.

A rectangular, metal pneumatic cylinder with multiple holes on the top surface and two connections on the rear side.

FESTO

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 855.00 / piece)

€ 855.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Mini slider DGSL-16-50-PA

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Mini slider

Stroke length: 50 mm

Max. operating pressure: 8 bar

Material (details): Aluminum wrought alloy

Manufacturer part #: 543987

Type: Mini slide DGSL-16-50-PA for position detection, with highly precise heavy-duty ball bearing guide, both elastic damping without metallic end position (P). Hub = 50 mm, adjustable end position range/length front = 37.5 mm, adjustable end position range/length rear = 39.5 mm, piston diameter = 20 mm, operating mode drive unit = Yoke

Weight: 1233 g

Size: Mini

Sealant: HNBR

Pneumatics connector: M5

Piston rod material: Steel (stainless)

Piston rod diameter: 20 mm

Force (max.): 188 N

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes
