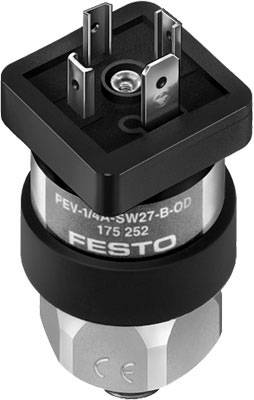

FESTO Pressure switch 175252 PEV-1/4-A-SW27-B-OD G1/4 1 up to 10 bar 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Highlights & Details
PEV-1/4-A-SW27-B-OD
Technical specifications
- Material housing: PA66-GF30, zinc-plated steel
- Measurement size: Relative pressure
- Electrical connection: Plug, 4-pin
- Max. Switching frequency: 3 Hz
- IP65 rating
- Mounting type: can be screwed into
- Type
PEV-1/4-A-SW27-B-OD
- Operating medium
Compressed Air
- Product type
Pressure switch
- Min. switching pressure range
1 bar
- Max. switching pressure range
10 bar
- Switching pressure
1 up to 10 bar
- Media temperature (range)
-20 up to +80 °C
- Type
Pneumatic connection: G1/4
- Manufacturer part #
175252
- Operating voltage
250 V
- Fluid connection
G1/4
- Weight
900 g
- Contact type
1 change-over
- Max. media temperature
+80 °C
- Media temperature (min.)
-20 °C
IP65
- Connection
Plug
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1937355 FESTO Pressure switch 175252 PEV-1/4-A-SW27-B-OD G1/4 1 up to 10 bar 1 change-over 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1937355 FESTO Pressure switch 175252 PEV-1/4-A-SW27-B-OD G1/4 1 up to 10 bar 1 change-over 1 pc(s)
Description
Pressure switches PEV-1/4-A-SW27-B-OD opens or closes an electrical circuit when reaching a certain pressure value. Adjustable Pressure switching point. Without device socket. CE mark (see declaration of conformity) = to EU Low Voltage Directive, measurement size = relative pressure, measuring method = pneumatically-electric pressure transducer, Operating pressure = 1 - 10 bar, according to ISO 8573-1:2010 operating medium = compressed air [7:-:-]
