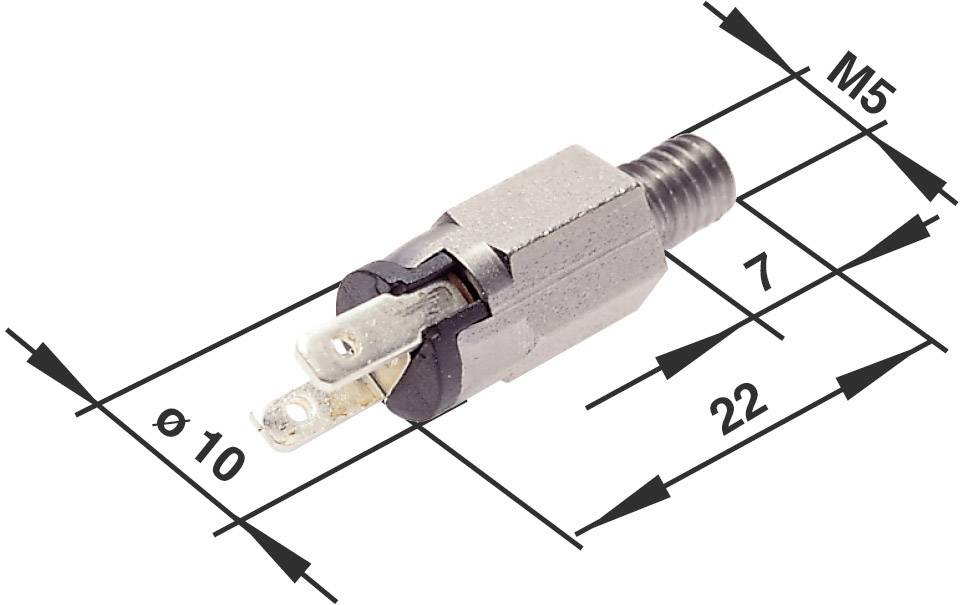

IMI NORGREN Pressure switch 9950501000000000 M5 0 up to 20 bar 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Material: Case made of steel
- Seal: plastic piston
- Type
9950501000000000
- Operating medium
Oiled air, oil or other neutral self-lubricating liquids
- Product type
Pressure switch
- Min. switching pressure range
0 bar
- Max. switching pressure range
20 bar
- Switching pressure
0 up to 20 bar
- Media temperature (range)
0 up to +60 °C
- Pick-up area (pvo)
2,0 - 3,5
- Pick-up zone (pvu)
1,5 - 2,5
- Display
No
- Operating temperature
-10 up to +60 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
+60 °C
- Manufacturer part #
9950501000000000
- Fluid connection
M5
- Contact type
1 maker
- Max. media temperature
+60 °C
- Media temperature (min.)
0 °C
Documents & Downloads
Datasheet
Datasheet 581710 IMI NORGREN Pressure switch 9950501000000000 M5 0 up to 20 bar 1 maker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 581710 IMI NORGREN Pressure switch 9950501000000000 M5 0 up to 20 bar 1 maker 1 pc(s)
Description
Features
- Switching element: NO contact without jerky characteristics
- Degree of protection: IP 00
- Installation position: any
- Vibrations: max. 4 g (sinusoidal)
- Electric connections: AMP 2.8 x 0.8.
Hints
Consider air quality when using at temperatures under +2°C.
