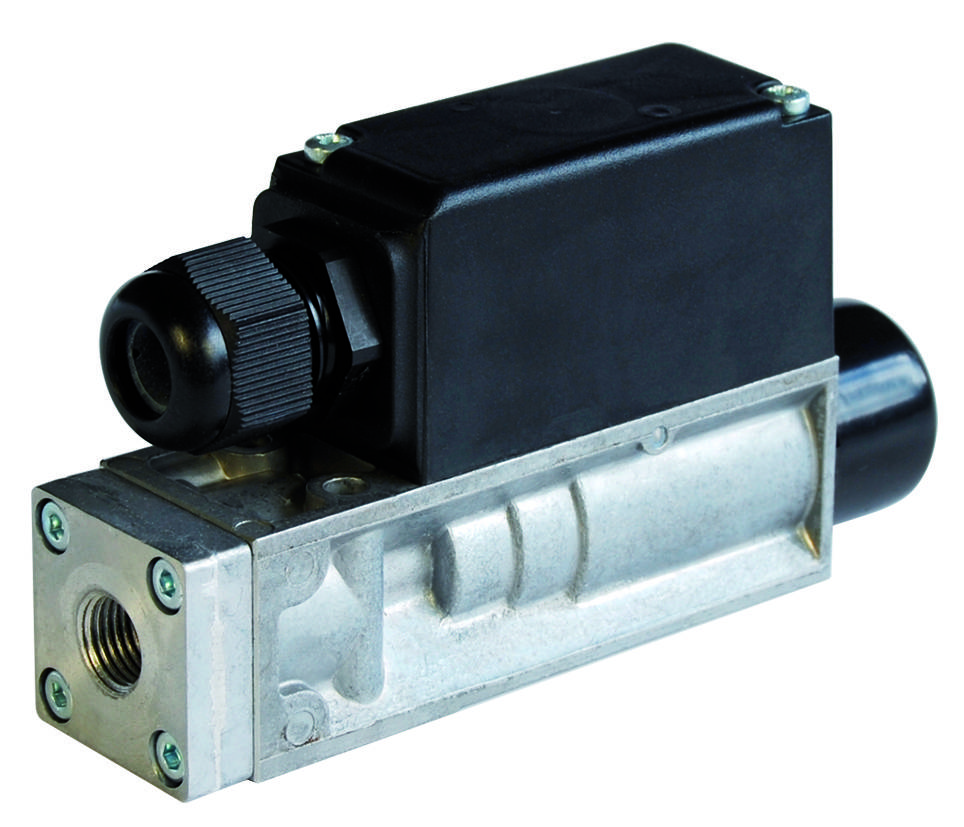

IMI NORGREN Pressure switch 0821050000000000 9 up to 18 bar 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2,911.76 / piece)
€ 2,911.76
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Type
0821050000000000
- Product type
Pressure switch
- Min. switching pressure range
9 bar
- Max. switching pressure range
18 bar
- Switching pressure
9 up to 18 bar
- Operating temperature
0 °C (min)
- Min. operating temperature
0 °C
- Manufacturer part #
0821050000000000
- Dim
(L x W x H) 33 x 72.5 x 135 mm
- Operating voltage
250 V
- Width
72.5 mm
- Length
33 mm
- Height
135 mm
IP64
- Material
Aluminium
Plastic
- Max. operating pressure
160 bar
- Operating pressure (min.)
10 bar
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 3296415 IMI NORGREN Pressure switch 0821050000000000 9 up to 18 bar 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3296415 IMI NORGREN Pressure switch 0821050000000000 9 up to 18 bar 1 pc(s)
Description
8D Electromechanical pressure switch
