Name: FESTO Rotary actuator 1559484 DSM-T-10-90-P Enclosure material: Aluminium 1 pc(s)
Brand: FESTO
SKU: 2122569
Availability: BackOrder

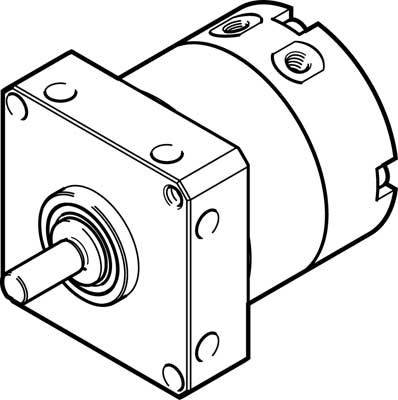

Sketch of a geared motor with visible mounting plate and shaft, ready for integration into mechanical systems.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 475.00 / piece)

€ 475.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Swivel angle: 90 deg
Design: Swivel Wing

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Rotary actuator

Max. operating pressure: 8 bar

Manufacturer part #: 1559484

Weight: 200 g

Connection: M3

Size: 10

Min. operating pressure: 3.5 bar

Operating medium: Compressed air

Sealant: TPE-U

Enclosure material: Aluminium

Material: Aluminium

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2122569 FESTO Rotary actuator 1559484 DSM-T-10-90-P Enclosure material: Aluminium 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2122569 FESTO Rotary actuator 1559484 DSM-T-10-90-P Enclosure material: Aluminium 1 pc(s)

Description

Swivel drive DSM-T -10-90-P size = 10, attenuation angle = 0.5 deg, swivel angle = 0 - 90 deg, dampening = P: elastic damping rings/plates on both sides, mounting position=any
