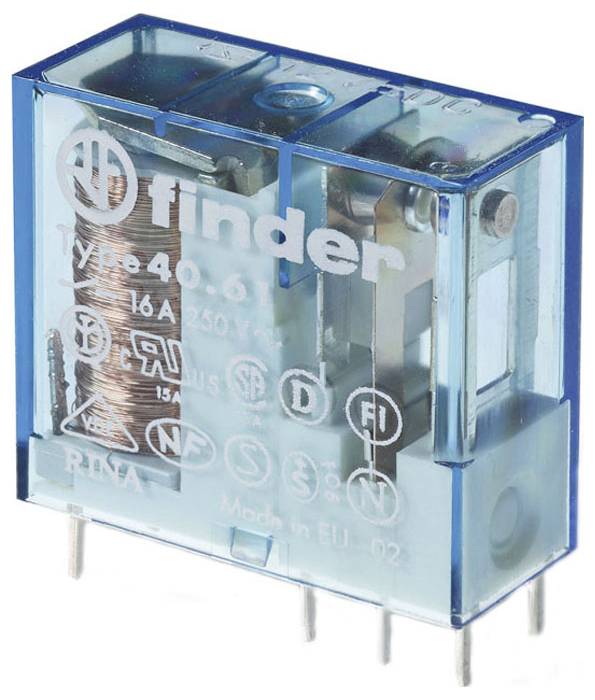

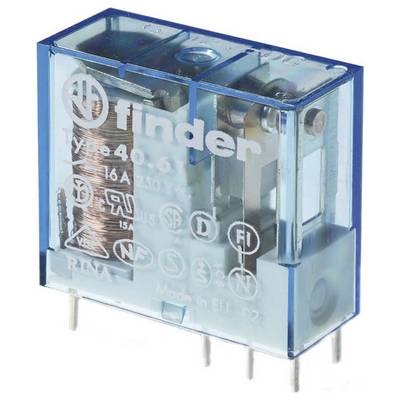

Finder 40.61.9.024.1300 PCB relay 24 V DC 16 A 1 maker 1 pc(s)
Product type
PCB relay
Coil nominal voltage
24 V DC
Contact type
1 maker
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 4.99 / piece)
€ 4.99
incl. VAT
14-day return policy included
Highlights & Details
Plug/PCB relay;
- 1 normally open contact (AgNi) for 16 A / 250 V AC contact pin grid: 5.0 mm
- Coil data 24 V DC, 0.65 W, 900 ohms
- Relay protection RT II
- This text is machine translated.
Technical specifications
- Product type
PCB relay
- Type
40.61.9.024.1300
- Coil nominal voltage
24 V DC
- Resistance (coil)
900 Ω
- Coil voltage rating
0.65 W
- Contact type
1 maker
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
RT II (flux-proof)
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Industrial packaging
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
