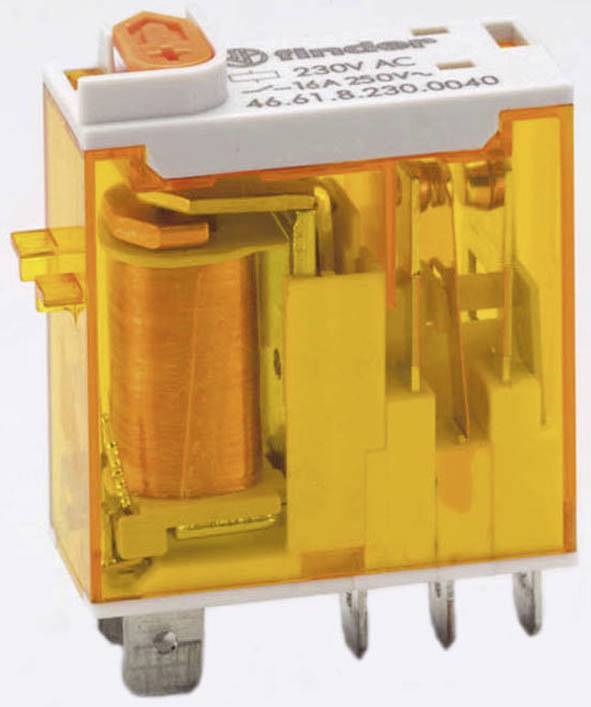

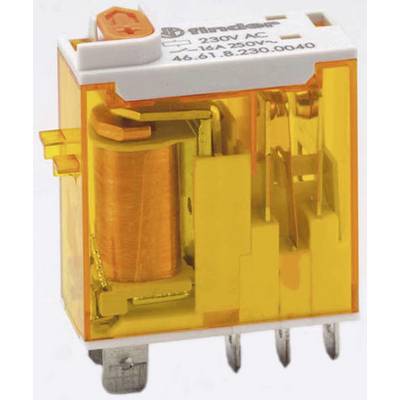

Image similar
Finder 46.61.8.024.4040 Plug-in relay 24 V AC 16 A 1 change-over 1 pc(s)
Product type
Plug-in relay
Coil nominal voltage
24 V AC
Contact type
1 change-over
Switching voltage (max.)
250 V AC
Switching current (max.)
16 A
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
14-day return policy included
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
46.61.8.024.4040
- Coil nominal voltage
24 V AC
- Coil voltage rating
1.2 VA
- Contact type
1 change-over
- Contact material
AgSnO2
- Switching voltage (max.)
250 V AC
- Switching current (max.)
16 A
- Connection
Jack connector
IP40
- Width
12.4 mm
- Height
32.8 mm
- Depth
29 mm
- Dim
(W x H x D) 12.4 x 32.8 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
16 A
12.4
32.8 mm
29 mm
25 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
24-24 V
24-24 V
AC
FALSE
19.2-26.4 V
16.2-26.4 V
AC
0
0
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323237 Finder 46.61.8.024.4040 Plug-in relay 24 V AC 16 A 1 change-over 1 pc(s)
Description
Industrial miniature relay, 1 CO contact (AgSnO2) for 16 A / 250 V AC, Faston 187, coil data 24 V AC, 1.2 VA, 320 Ohm, relay protection type RT II, hand-held test button that can be fixed, mechanical display
This text is machine translated.
This text is machine translated.
