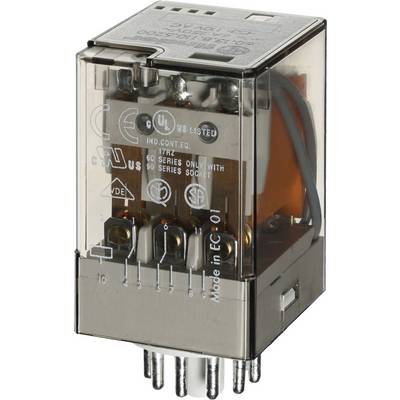

Finder 60.13.8.024.5040 Plug-in relay 24 V AC 10 A 3 change-overs 1 pc(s)
Product type
Plug-in relay
Coil nominal voltage
24 V AC
Contact type
3 change-overs
Switching voltage (max.)
250 V AC
Switching current (max.)
10 A
EAN:
Part number:
Item no:
Number
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
Only 2 Piece(s) available
Technical specifications
- With removable terminals: No.
- Drive, polarity: Non-polar
- Switching characteristics of drive: Mono-stable
- With positively driven contacts: No.
- Type of switch contact: Single contact
- Complete unit with socket: No.
- Product type
Plug-in relay
- Type
60.13.8.024.5040
- Coil nominal voltage
24 V AC
- Coil voltage rating
2.2 VA
- Contact type
3 change-overs
- Contact material
AgNi hard gold plated
- Switching voltage (max.)
250 V AC
- Switching current (max.)
10 A
- Connection
Jack connector
IP20
- Width
32.5 mm
- Height
54.2 mm
- Depth
36.4 mm
- Dim
(W x H x D) 32.5 x 54.2 x 36.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
10 A
32.5
54.2 mm
36.4 mm
20 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
24-24 V
24-24 V
Gold
AC
FALSE
19.2-26.4 V
19.2-26.4 V
AC
0
0
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3323103 Finder 60.13.8.024.5040 Plug-in relay 24 V AC 10 A 3 change-overs 1 pc(s)
Description
Industrial plug-in relay 3 CO contact for 10 A / 250 V AC, contact material AgNi hard gold-plated, coil data 24 V AC, 2.2 VA, 74 Ohm, lockable/momentary action and mechanical display, relay protection type: RT I.
This text is machine translated.
This text is machine translated.
