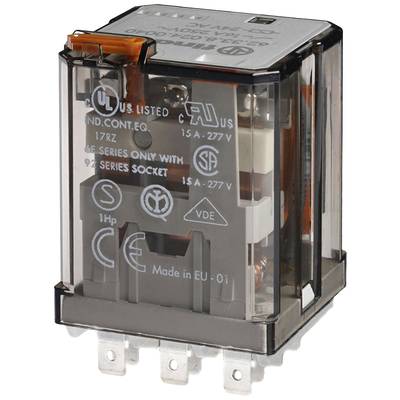

Finder 62.33.8.230.4000 Plug-in relay 230 V AC 16 A 3 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Plug-in relay
Coil nominal voltage
230 V AC
Contact type
3 change-overs
Switching voltage (max.)
400 V AC
Switching current (max.)
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Highlights & Details
Power relay with 3 changeover contacts, 62 series
Our service for you
Technical specifications
- Relays Degree of protection: RT I
- Product type
Plug-in relay
- Type
62.33.8.230.4000
- Coil nominal voltage
230 V AC
- Min. pick-up voltage
184 V AC
- Max. pick-up voltage
253 V AC
- Resistance (coil)
7250 Ω
- Contact type
3 change-overs
- Contact material
AgCdO
- Switching voltage (max.)
400 V AC
- Switching current (max.)
16 A
- Max. switching capacity
4000 VA
- Electrical lifespan
100 x 103 switching games
- Durability
(AC / DC) 10 x 106/30 x 106 switching games
Relay protection type RT I
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Weight
1000 g
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Contactors
- Nominal current (details)
16 A
- Switching capacity
(AC1) 16 A/250 V AC
- Temperature range
-40 - +70 °C
16 A
38.2
47.6 mm
35.8 mm
30 A
FALSE
Polarity free
Mono stable
FALSE
Single contact
FALSE
Plug-in connection
230-230 V
230-230 V
AC
FALSE
184-253 V
184-253 V
AC
0
0
3
Documents & Downloads
Datasheet
Datasheet 3024138 Finder 62.33.8.230.4000 Plug-in relay 230 V AC 16 A 3 change-overs 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3024138 Finder 62.33.8.230.4000 Plug-in relay 230 V AC 16 A 3 change-overs 1 pc(s)
Description
Industrial relay with 3 changeover contacts.
Features
- Test key
Hints
Approvals: VDE, UL, CSA, RINA, Semko, IMQ, S. Information on the voltage range at 20 ° C.
