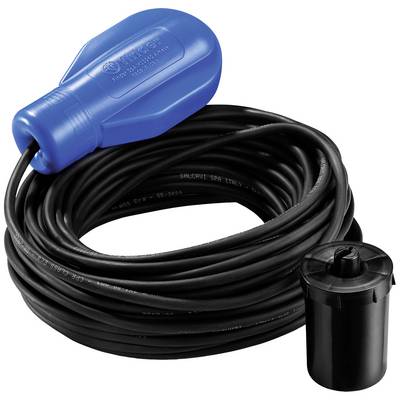

Finder 72.A1.1.000.1501 72.A1.1.000.1501 Float switch Filling, Draining 15 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Technical specifications
- Max continuous current 10 A
- Max. Pressure 10 bar
- Product type
Float switch
- Function
Filling
Draining
- Contact type
1 change-over
- Nominal voltage
250 V AC
- Switching current (max.)
6 A
- Material
PP
- Max. temperature
+45 °C
- Cable length
15 m
IP68
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3024164 Finder 72.A1.1.000.1501 72.A1.1.000.1501 Float switch Filling, Draining 15 m
User & Safety Instructions
User & Safety Instructions 3024164 Finder 72.A1.1.000.1501 72.A1.1.000.1501 Float switch Filling, Draining 15 m
Description
Float switch for immersion pumps and low polluted water, 1 CO contacts for 10 A (Cos phi 1). Cable length 15 m, cable material polychloroprene (H07 RN-F), Max. Fluid temperature +45 °C, counterweight (110 grams) with strain relief included in the accessory pack, housing material polypropylene, max. Pressure 10 BAR, switching hysteresis/angle of effect +/- 30°, protection class IP 68.
