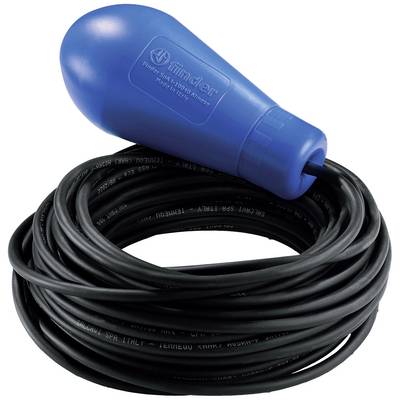

Finder 72.B1.1.000.0501 72.B1.1.000.0501 Float switch Filling, Draining 5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- Max continuous current 10 A
- Max. Pressure 10 bar
- Product type
Float switch
- Function
Filling
Draining
- Contact type
1 change-over
- Nominal voltage
250 V AC
- Switching current (max.)
6 A
- Material
PP
- Max. temperature
+45 °C
- Cable length
5 m
IP68
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3024166 Finder 72.B1.1.000.0501 72.B1.1.000.0501 Float switch Filling, Draining 5 m
User & Safety Instructions
User & Safety Instructions 3024166 Finder 72.B1.1.000.0501 72.B1.1.000.0501 Float switch Filling, Draining 5 m
Description
Float switch for pump stations and heavily polluted water, 1 CO contacts for 10 A (Cos phi 1). Cable length 5 m, cable material polychloroprene (H07 RN-F), Max. Fluid temperature +45°C, housing material polypropylene, Max. Pressure 10 BAR, switching hysteresis/angle of effect +/- 15°, protection class IP 68.
