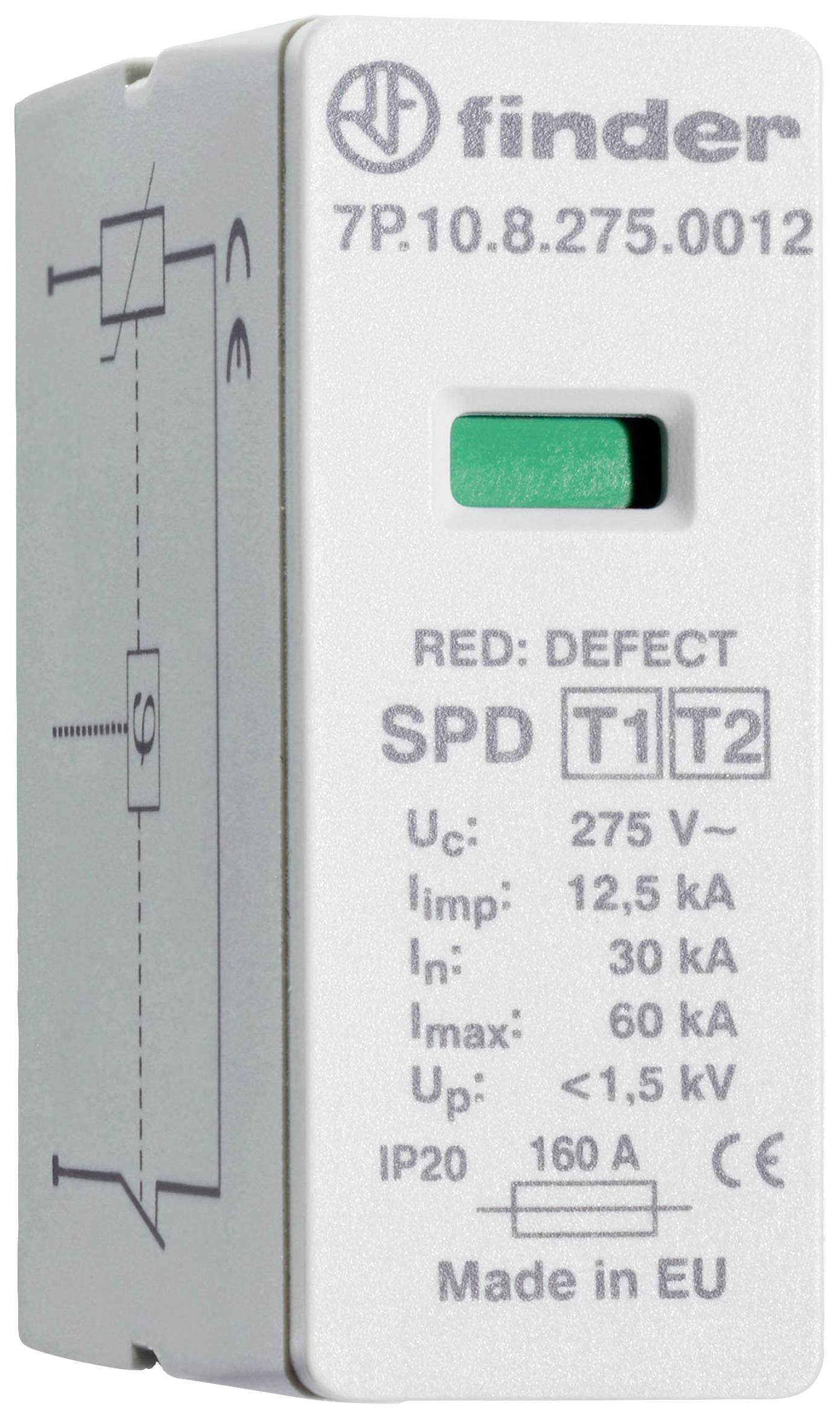

Finder 7P.10.8.275.0012 7P-10-8-275-0012 Surge arrester (plug-in) Surge protection for: Switchboards 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Technical specifications
- Max. CONTINUOUS VOLTAGE 275 V AC/DC
- Surge current 12.5 kA
- Nominal leakage surge current 30 kA
- Max. Surge current 60 kA
- Protection level 1.5 kA
- Product type
Surge arrester (plug-in)
- Surge protection for
Switchboards
- Leakage current
20 kA
- Pick-up time (details)
25 ns
- Type
Varistor-Safety module
- Manufacturer part #
7P.10.8.275.0012
- Factory colour
Grey
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3218926 Finder 7P.10.8.275.0012 7P-10-8-275-0012 Surge arrester (plug-in) Surge protection for: Switchboards 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3218926 Finder 7P.10.8.275.0012 7P-10-8-275-0012 Surge arrester (plug-in) Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Replacement module, varistor, type 1+2, pluggable, coded, for 7P series base modules - Type 7P.12.8.275.1012, 7P.13.8.275.1012, 7P.14.8.275.1012 and 7P.15.8.275.1012.
