Finder SSR 77.01.9.024.8051 5 A Switching voltage (max.): 265 V AC Instantaneous 1 pc(s)

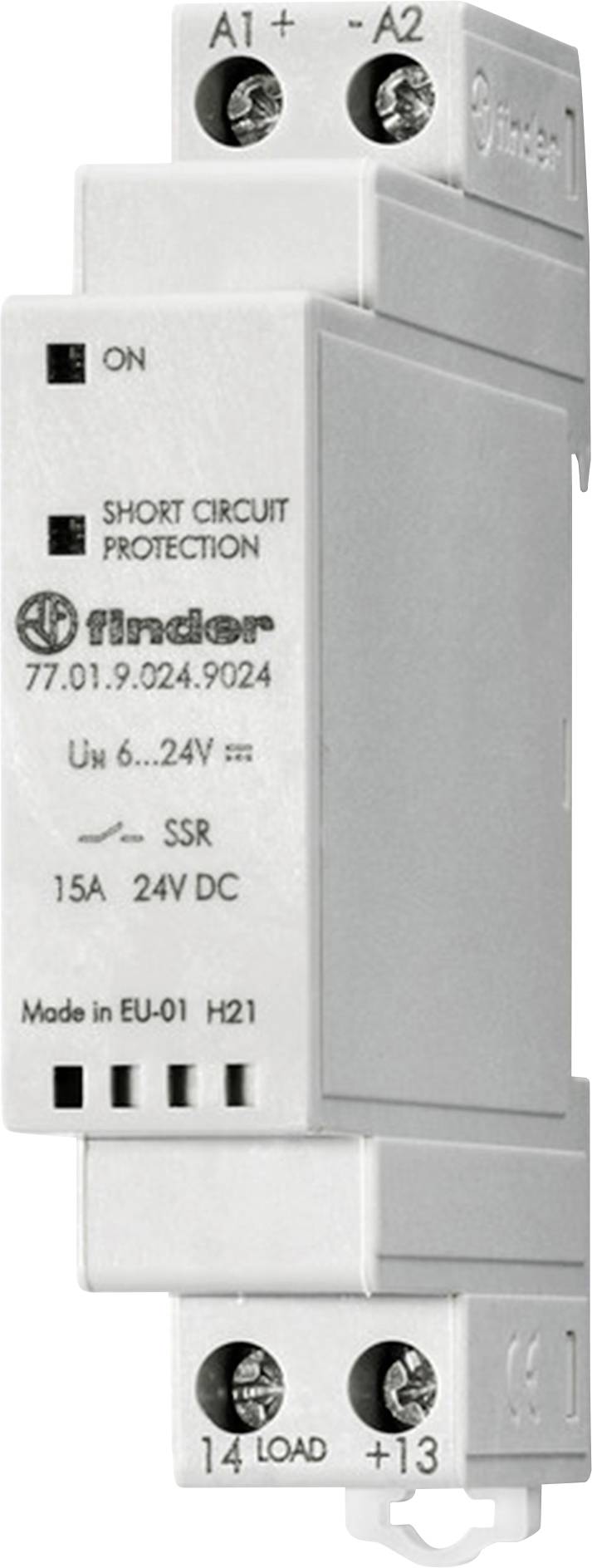

A white electronic relay with the brand and model 'Finder 77.01.9.024.9024' printed on it. Suitable for 24V DC, 15A, with short circuit protection.
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
265 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 53.99 / piece)
€ 53.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Electronic power relay, 5 A

  • SSR-Relay in 17.5 mm housing
  • Input voltage 12-24 V DC
  • 1 NO (momentary-action switch) for 5 A.
  • Inrush current up to 300 A for 10 ms
  • Switching load voltage range 48 to 265 V AC
  • Lamp loads: Incandescent and halogen lamps 800 W.
  • Energy-saving lamps 400 W
  • LED (230 V AC) 400 W.
  • NV-Halogen lamps or LED with EVG 400 W
  • NV-Halogen lamps or LED with KVG 800 W
  • Fluorescent lamps with electronic ballast or conventional ballast 800 W.
  • 1-phase motor load in AC3 operation at 230 V AC 0.1 kW
  • Minimum switching current at 230 V AC 100 mA
  • With screw connections and LED display
  • This text is machine translated.

Technical specifications

Packaging type

Piece

Product type

SSR

Type

77.01.9.024.8051

Switching type

Instantaneous

Connection

Screw terminal

Control voltage (min.)

4 V DC

Control voltage (max.)

32 V DC

Control voltage range

4 - 32 V DC

Control current (max.)

18 mA

Surge current (max.)

300 A

Switching voltage (min.)

48 V AC

265 V AC

Switching voltage (max.)

265 V AC

Current load (max.)

5 A

Max. switching capacity

1325 VA

Output voltage (min.)

48 V AC

Output voltage (max.)

265 V AC

Max. output current

5 A

Contact type

1 maker

Min. temperature

-20 °C

Max. temperature

+70 °C

IP20

Width

17.5 mm

Height

88.8 mm

Length

56.5 mm

Industrial packaging

Yes

RoHS-compliant

Yes

Permanent current (max.)

5 A

Content

1 pc(s)

Nominal control voltage

24 V DC

UKCA

not relevant
