Buy Fischer 090928 HM 5 x 52 S K NV Cavity plug 52 mm 10 mm 1 Set

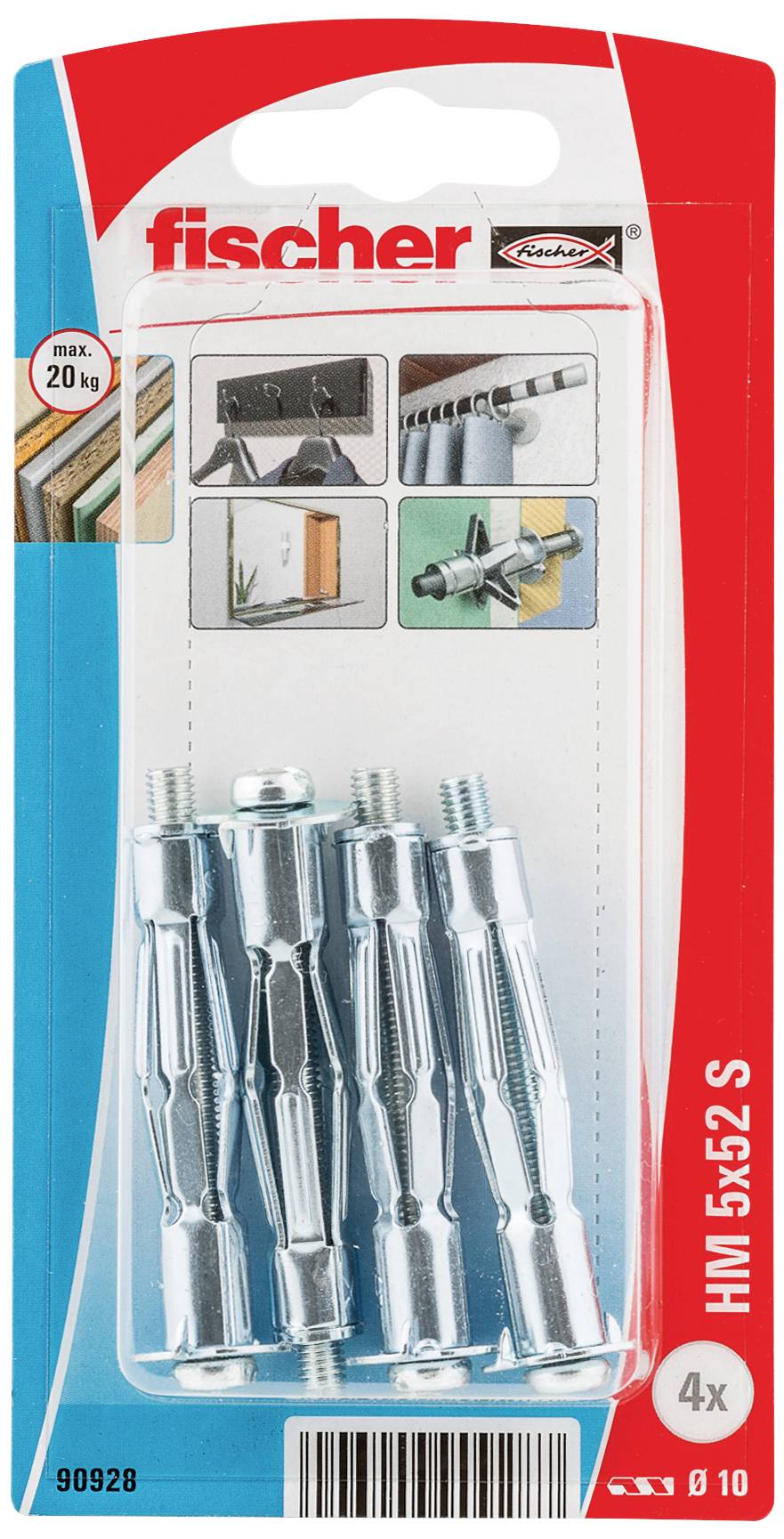

Pack of 4 Fischer HM 5x52 S metal wall anchors, max 20 kg, shown in blister packaging with installation illustrations.

'Fischer' Metal Cavity Wall Plugs HM S, max. 20 kg load-bearing capacity, for various materials; Pack of 4 wall plugs.

A drill passes through a perforated material from left to right. A red arrow indicates the drill's rotational direction.

Diagram shows a bolt anchor being secured in a wall. An arrow points to the screw being tightened to fasten the anchor.

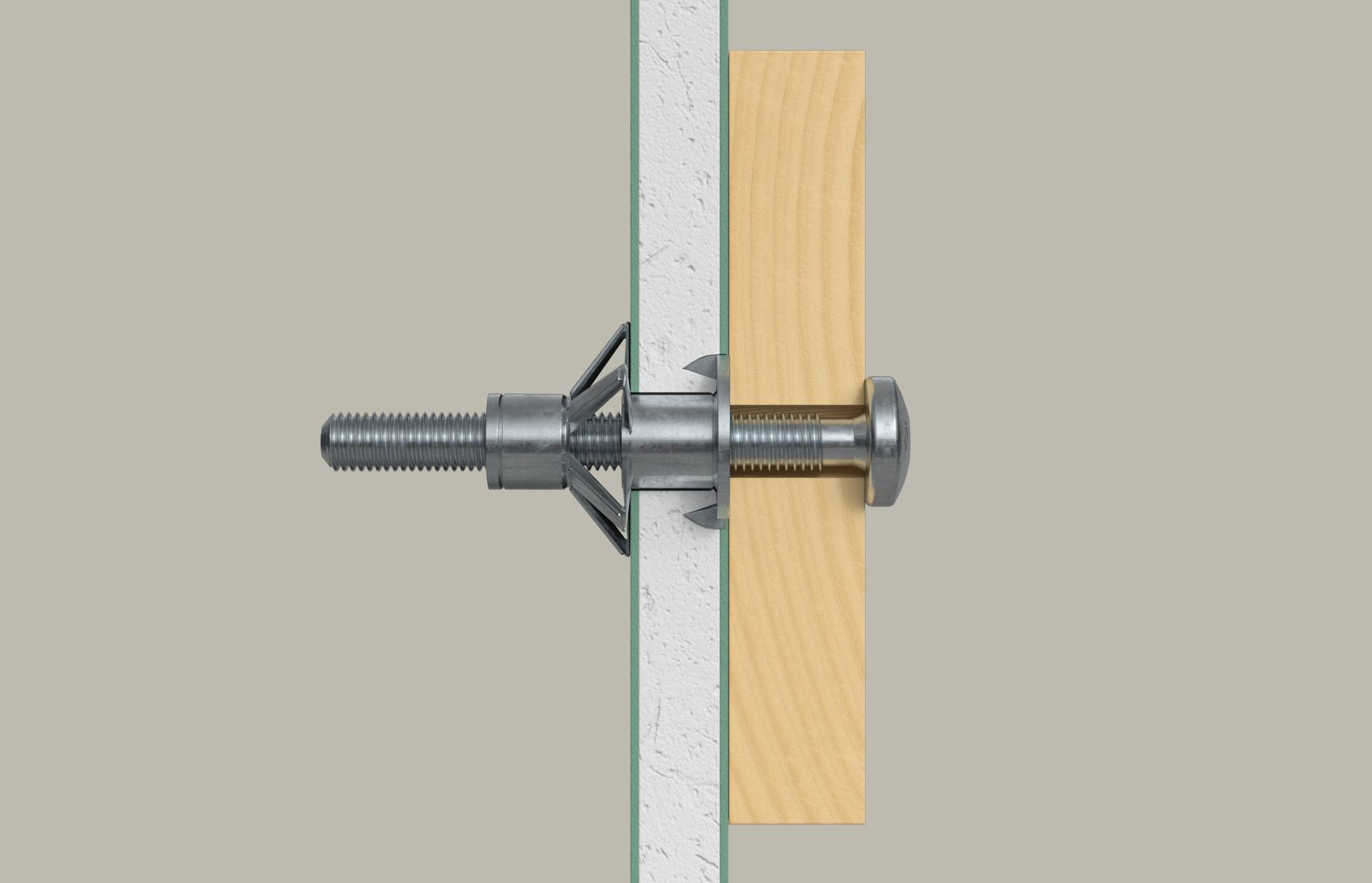

A cross-section of a wall plug shows the metal anchor spreading out behind the wall. Red arrows emphasise the expansion process.

Illustration of a wall plug in a wall with a screw. The arrow shows the direction of rotation for tightening the screw.

An expansion wall plug is secured in the wall by turning a screw. An arrow indicates the direction of rotation.

Technical drawing of a dowel cross-section installed in a wall, illustrating the screw and anchor for fixation.

'Illustration of a wall plug with a screw being tightened clockwise with a spanner, embedded in a dotted wall.'

A drill penetrates from the right into a rectangle marked with holes; signalling that a hole is being drilled into the material.

Illustration of a wall anchor being inserted into a wall. Red arrow indicates the direction of anchor pull.

Diagram of a cavity wall anchor installation: The cavity wall anchor is guided through a wall, expands, and is secured to provide stability. An arrow indicates the direction of screw insertion.

'Illustration of a wall plug system. The bolt is turned clockwise to expand and secure the plug.'

Cross-section of a wall anchor with bolt, washer, and connecting piece. Main material is speckled rock.

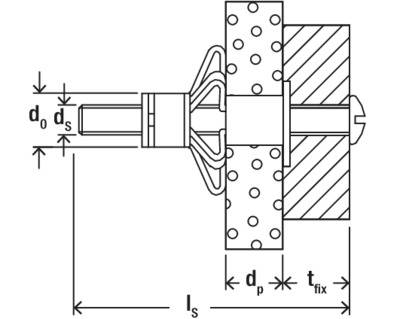

Diagram of a mechanical fastening system with axis and screw. Shows distances: d₀, dₛ, dₚ, tₓ, and lₛ.

1/15

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

9 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 15.12 / piece)

€ 15.12

plus VAT.

Only 9 Set(s) available

Report legal concerns

Highlights & Details

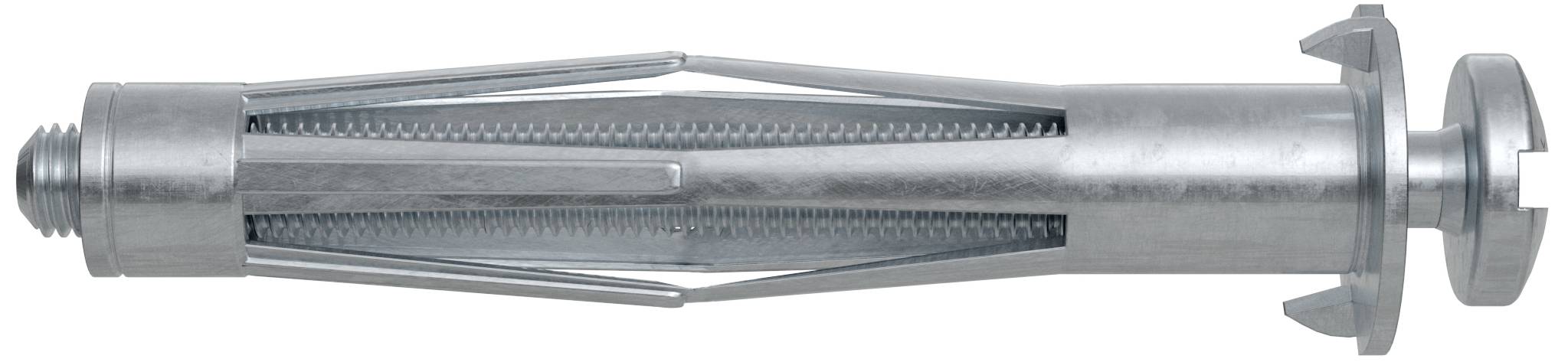

Fischer HM 5 x 52 S cavity metal plugs with metric screw

Holds heavy objects in panel materials through large contact surface of the expansion arms.
Flexible when mounting: Screw can be loosened and tightened again.
No rotation: Claw at the edge of the dowel holds plugs in plate material.
Suitable for pre-mounting.
Complete with metric screw.

Technical specifications

(Ø): 10 mm

Product type: Cavity plug

Material: Metal

Length: 52 mm

Dim: (Ø x L) 10 mm x 52 mm

Suitable for: Plasterboard
Prestressed concrete hollow boards
Chipboard
Plywood boards

Content: 1 Set

Outside Ø: 10 mm

Documents & Downloads

Datasheet

Datasheet 3065927 Fischer 090928 HM 5 x 52 S K NV Cavity plug 52 mm 10 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065927 Fischer 090928 HM 5 x 52 S K NV Cavity plug 52 mm 10 mm 1 Set

Description

The Fischer HM-S cavity metal plug is a versatile cavity plug with a metric screw for all panel materials with a wall thickness of 3 to 50 mm. The plug is set in the pre-plug mounting together with the assembling pliers of Fischer HM-Z 1. The clamp is used to pull the plug in the cavity against the plate material. The spreading arms fold open and press themselves against the back side of the plate. Alternatively, you can also use a screwdriver or a cordless screwdriver. Due to the metric internal thread the mounting part can be fastened multiple times and released again. The Fischer carbide metal plug is suitable for fixing lamps, images and light wall shelves in the interior.
