Buy Fischer 536187 SXRL 10 x 140 FUS K NV Plug (long) 140 mm 1 Set

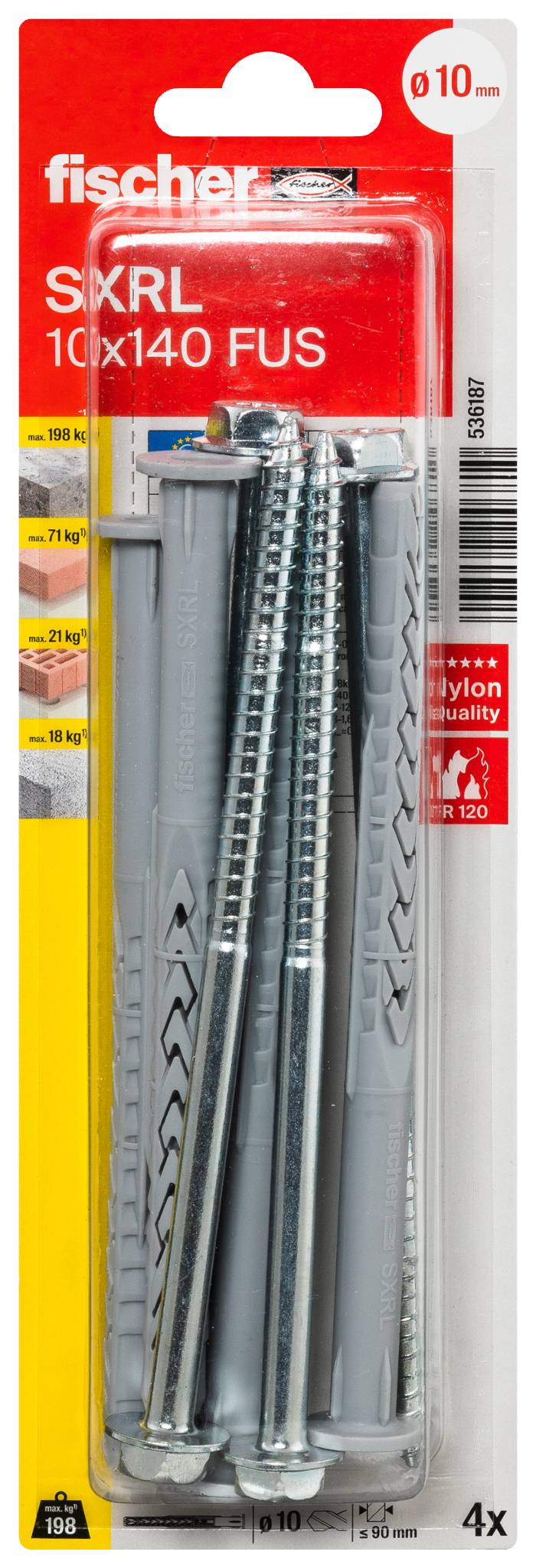

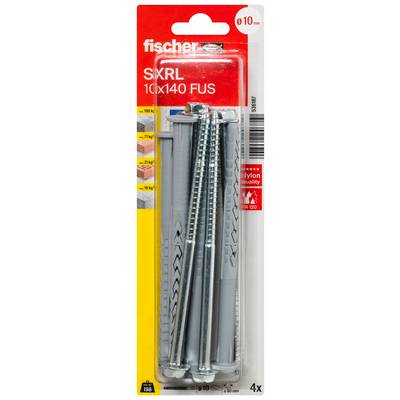

Package of Fischer SXRL 10x140 FUS wall anchors with screws, showing 4 grey plastic anchors and 4 metal screws on red-and-white packaging.

Datasheet (PDF)

Fast track dispatch on Thu, 17 Sep

3 Set(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 3.77 / piece)

€ 3.77

plus VAT.

Only 3 Set(s) available

Report legal concerns

Highlights & Details

Fischer long shaft anchor bolt SXRL 10 x 140 FUS hex screw with U-disc

ETA rating with excellent load values: Safe multi-fasteners of non-load-bearing systems in concrete and masonry.
The long spreading element makes the SXRL versatile in the application.
Loads are introduced evenly into the building material using dowel geometry. This does not destroy bars with thin-walled construction materials.
Easy mounting: Ribs prevent the plug from turning when lowering.

Technical specifications

Product type: Plug (long)

Length: 140 mm

Suitable for: Cored bricks
Hollow block
Foamed concrete wall
Flintlime bricks
Thermal insulation blocks
Flintlime hollow bricks
Concrete
Natural stone
Drywall sheet

Content: 1 Set

Outside Ø: 10 mm

Documents & Downloads

Datasheet

Datasheet 3066061 Fischer 536187 SXRL 10 x 140 FUS K NV Plug (long) 140 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3066061 Fischer 536187 SXRL 10 x 140 FUS K NV Plug (long) 140 mm 1 Set

Information

Information 3066061 Fischer 536187 SXRL 10 x 140 FUS K NV Plug (long) 140 mm 1 Set

Description

The Fischer SXRL-FUS long-shaft anchor bolt is approved with the Fischer hexagonal screw with molded disc and integrated bit holder for multiple mounting of non-load-bearing systems in masonry, concrete and porous concrete. The two expanding zones of the dowel evenly feed power into the brickwork; they combine into porous concrete and solid construction material to form a long expanding element. By means of the safety screw made of galvanized steel the long shaft anchor bolt is suitable for fixing the metal constructions.

This text is machine translated.
