Buy Fischer 090932 HM 6 x 52 S K NV Cavity plug 52 mm 12 mm 1 Set

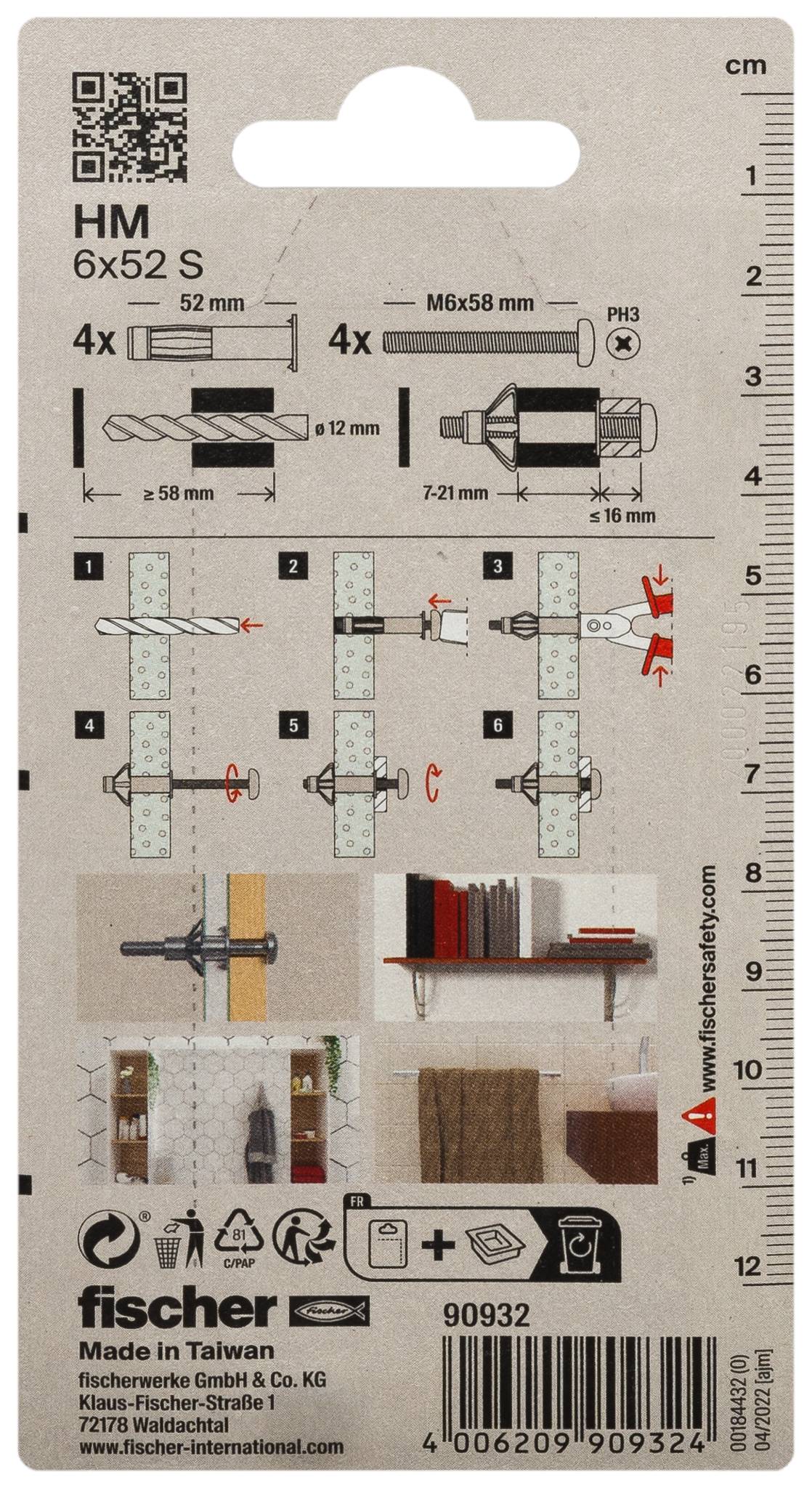

Package of Fischer HM 6x52 S M6 hollow-wall anchors, shown as 4 metal anchors in blister packaging.

Packaging containing four metal hollow wall plugs by 'fischer', model 'HM 6x52 S', suitable for loads up to 20 kg.

A shower curtain is hung on a black and white striped curtain rod and held by silver rings.

A shelf with silver paint and varnish tins, and glass containers with green lids. The containers are sorted in various sizes.

A drill penetrates a striped material, which is highlighted by a red arrow pointing towards the drill tip.

Illustration of a wall plug mechanism. A wall plug is inserted into a wall, with a screw being tightened to expand the plug.

Diagram of an anchor with a wall to the left side. Two red arms point to the right with arrows indicating an outward movement.

Diagram of a bolt anchor being inserted into a perforated wall by rotating with a nut. Arrow indicates direction of rotation.

Illustration of an anchor in a wall being secured by turning a spanner. Red arrow indicates direction of rotation.

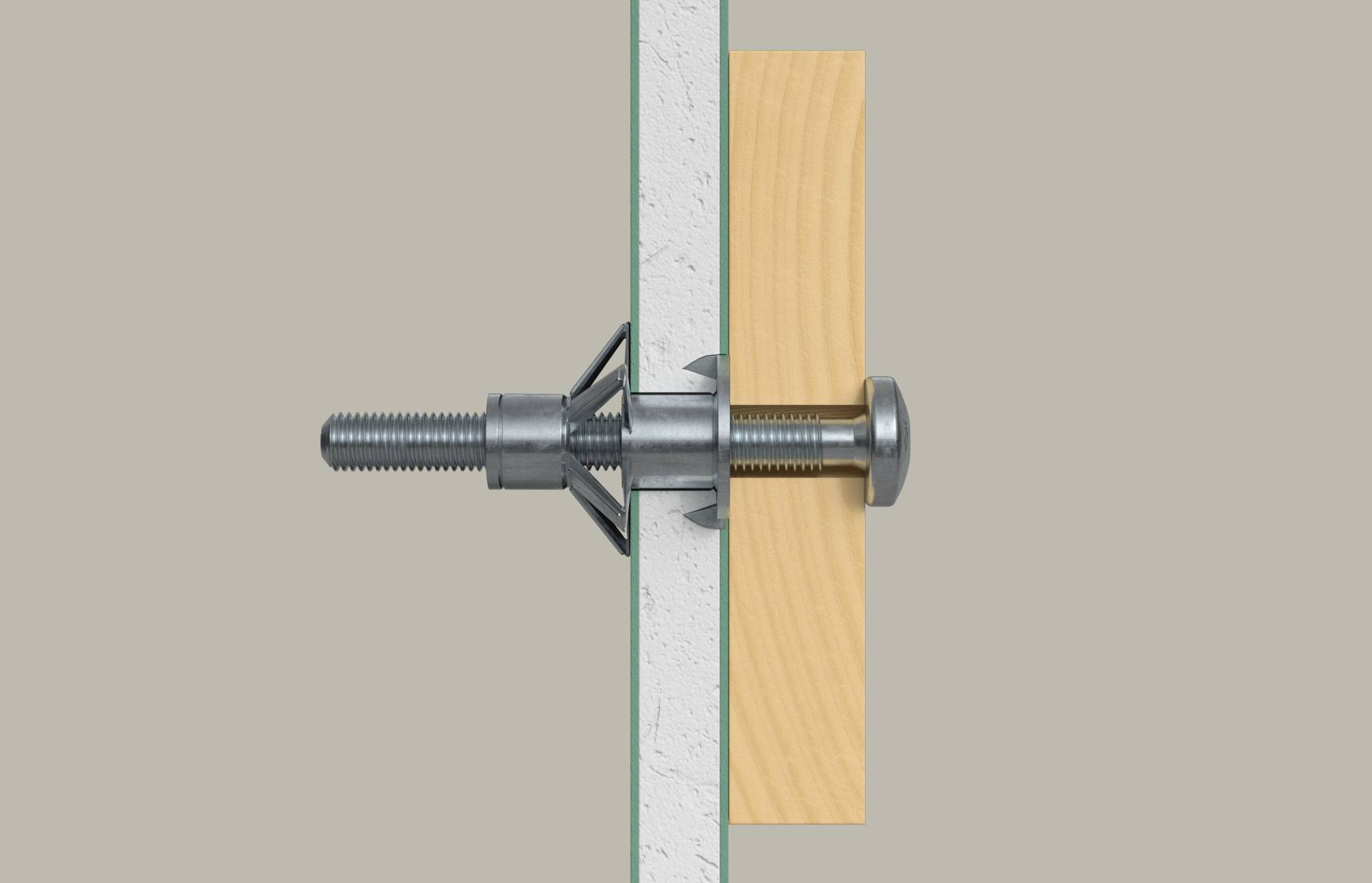

Cross-section of a bolt with a wall plug in a wall. On the left, a screw head, on the right, a nut. In between, a wall plug in a dotted wall.

A diagram shows a wall plug being hammered into a wall marked with dots, with a red arrow indicating the direction.

A drill bit pierces a wall from left to right. A red line indicates the drilling direction.

Drawing of a wall plug inserted through a wall. An arrow indicates the direction of screwing.

Screw plug is rotated through wall. Text explains mounting mechanism. Red arrows show rotational movement.

Schematic representation of a ceiling anchor in a wall. A screw is tightened by turning clockwise.

Cross-sectional diagram of a through-anchor in a wall. The anchor shows a nut on the right-hand side and a screw head on the left.

Technical drawing of a rotary bearing with labels 'd₀', 'dₛ', 'dₚ', 'tₓ', 'lₛ'. Shows shaft, bearing, and mounting point.

1/17

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

22 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 15.96 / piece)

€ 15.96

plus VAT.

Report legal concerns

Highlights & Details

Fischer HM 6 x 52 S cavity metal plugs with metric screw

Holds heavy objects in panel materials through large contact surface of the expansion arms.
Flexible when mounting: Screw can be loosened and tightened again.
No rotation: Claw at the edge of the dowel holds plugs in plate material.
Suitable for pre-mounting.
Complete with metric screw.

Technical specifications

(Ø): 12 mm

Product type: Cavity plug

Material: Metal

Length: 52 mm

Dim: (Ø x L) 12 mm x 52 mm

Suitable for: Plasterboard
Prestressed concrete hollow boards
Chipboard
Plywood boards

Content: 1 Set

Outside Ø: 12 mm

Documents & Downloads

Datasheet

Datasheet 3065932 Fischer 090932 HM 6 x 52 S K NV Cavity plug 52 mm 12 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065932 Fischer 090932 HM 6 x 52 S K NV Cavity plug 52 mm 12 mm 1 Set

Description

The Fischer HM-S cavity metal plug is a versatile cavity plug with a metric screw for all panel materials with a wall thickness of 3 to 50 mm. The plug is set in the pre-plug mounting together with the assembling pliers of Fischer HM-Z 1. The clamp is used to pull the plug in the cavity against the plate material. The spreading arms fold open and press themselves against the back side of the plate. Alternatively, you can also use a screwdriver or a cordless screwdriver. Due to the metric internal thread the mounting part can be fastened multiple times and released again. The Fischer carbide metal plug is suitable for fixing lamps, images and light wall shelves in the interior.
