Name: Fischer 545678 DUOBLADE S LD Drywall anchor 44 mm 20 pc(s)
Brand: Fischer
SKU: 1926888
Availability: InStock

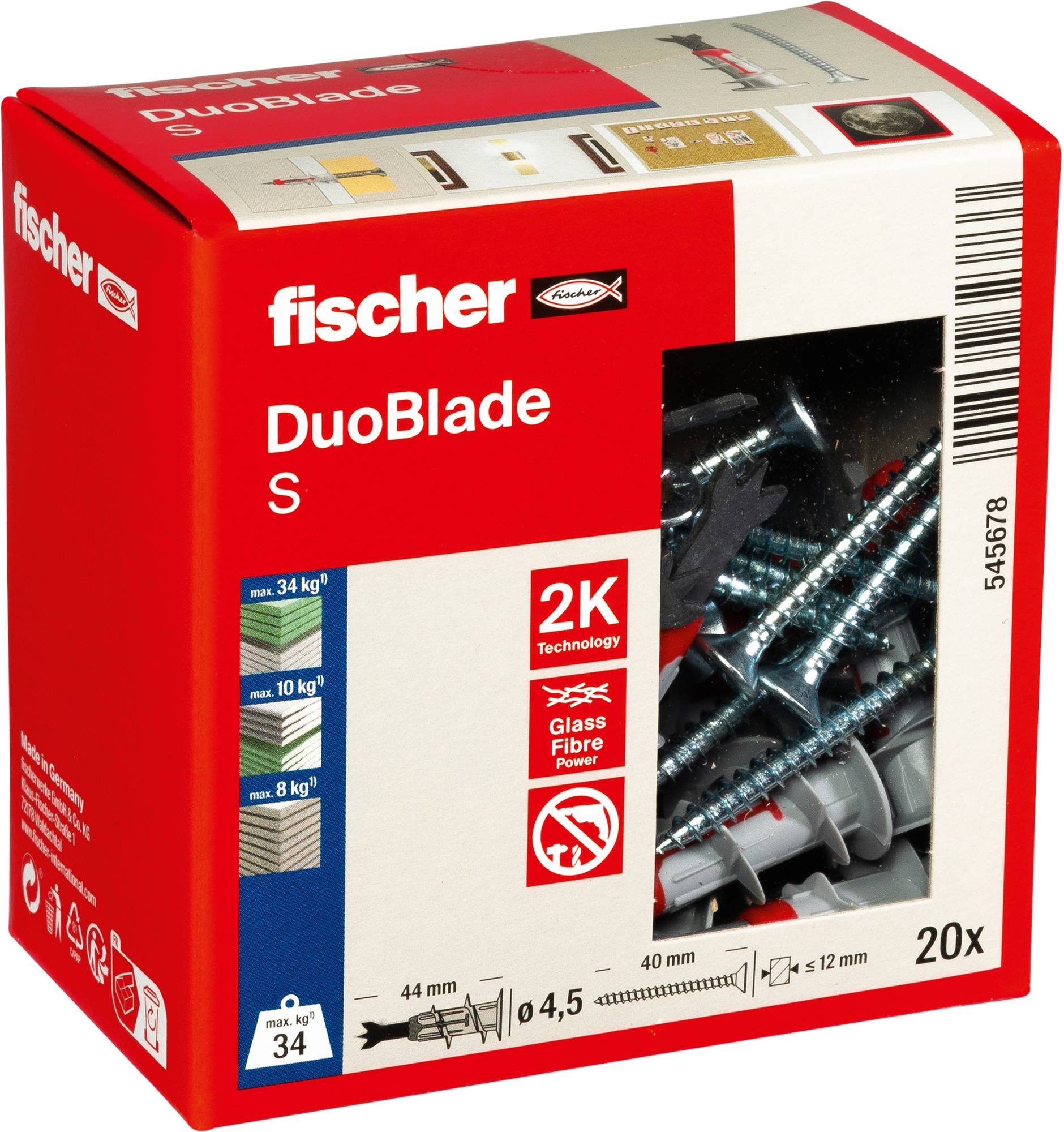

Fischer DuoBlade S wall plug kit box with screws and anchors, 20-piece pack, shown in red and white packaging.<br>

Illustration comparing a wall plug anchor above and a screw below, showing how the anchor expands to hold the screw in place.

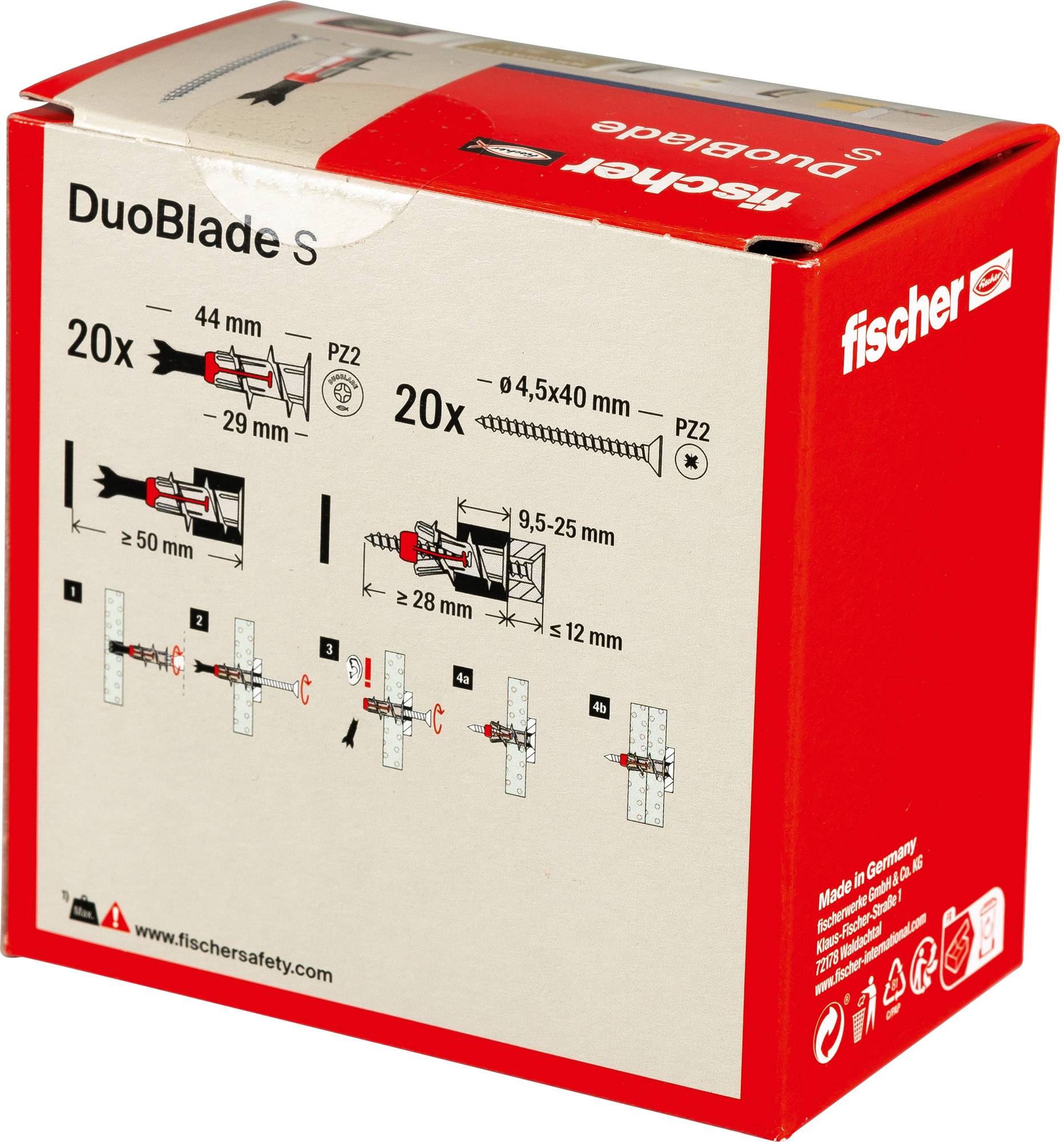

Packaging box for Fischer DuoBlade S wall anchors and screws, showing sizes, quantities, and step-by-step installation icons.

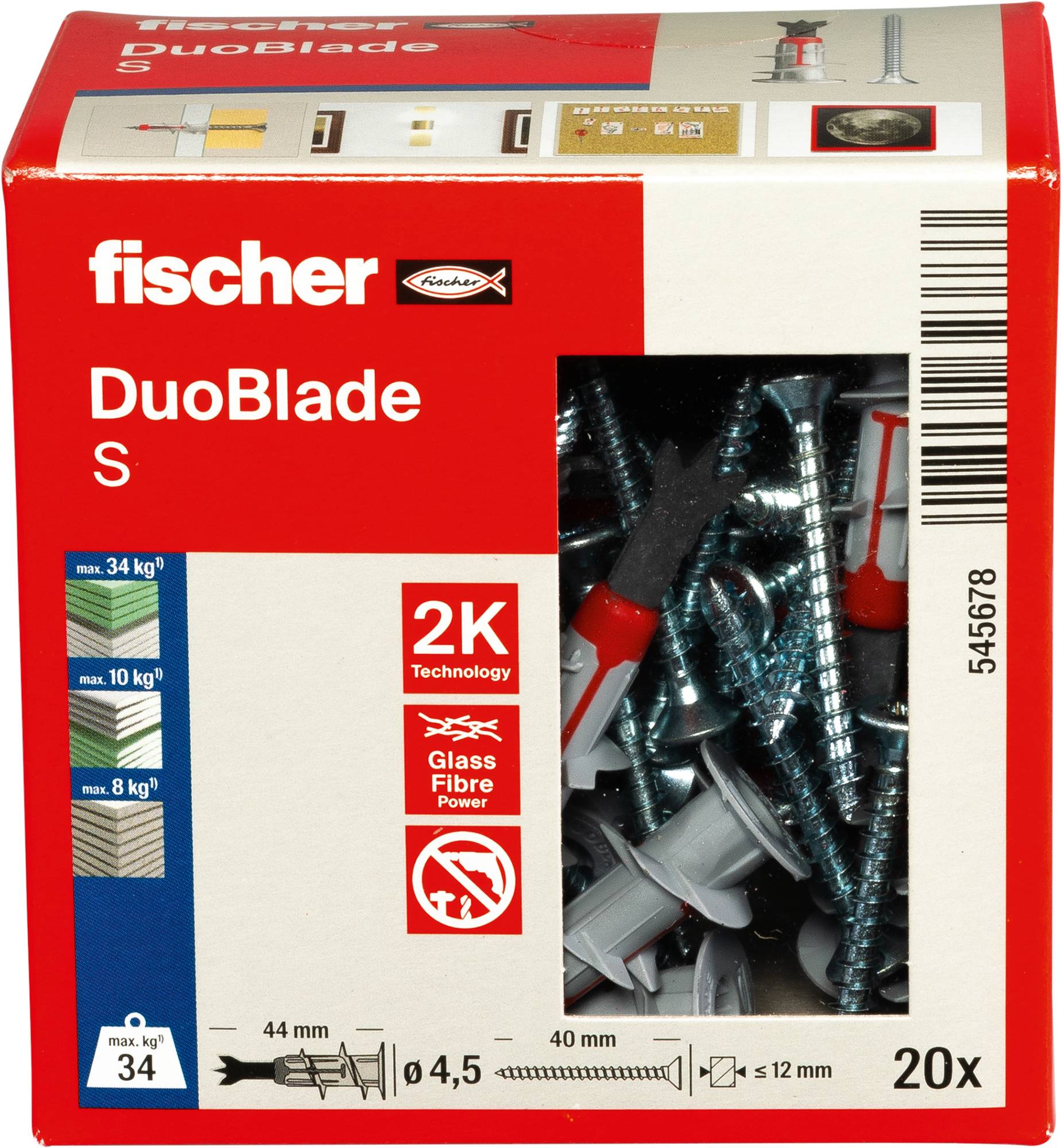

Fischer DuoBlade S drywall anchors and screws box, showing product image, 20 pieces, 44 mm, 4.5 mm and up to 34 kg load ratings.

Wall-mounted black-framed mirror reflecting a bright empty room with a potted plant; cabinet with two vases sits beside it.

White round smoke detector mounted on a ceiling, viewed from below.

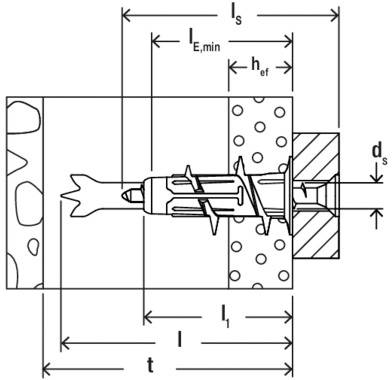

Cross-section of a wall anchor and screw fastening wood to a hollow wall, showing the anchor expanding inside the wall cavity.

Self-drilling plasterboard anchor 'DuoBlade' by fischer with product advantages for rapid installation in plasterboard and gypsum fibreboard.

Application examples and installation of 2K technology: suitable for smoke detectors, curtain rails, blinds, pictures, mirrors and lightweight ceiling lights; substrates: plasterboard, gypsum fibreboard and lightweight cement boards.

1/9

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

75 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 20 pc(s))

Piece(s)

Total (€ 12.99 / piece)

€ 12.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer plasterboard plug DUOBLADE S

Self-drilling of dowels for the quick and easy installation in plasterboard
Brad point for accurate positioning of the dowel
No shaft rotates by ribs
Common Cross-tip tool holder (PZ2) for easy installation
Optimal support with matching chipboard screw.

Technical specifications

Dowel length 44 mm
Min. Drill hole depth for pre-on mounting 50 mm
Min. The first structural layer thickness up to 50 mm
Min. Screw-in depth 28 mm
Screw dimensions 4.5 x 40 mm
Anchoring depth 9.5 - 25 mm
Dowel length without drill bit 29 mm

Product type: Drywall anchor

Length: 44 mm

Screw diameter: 4.5 mm

Suitable for: Plasterboard
Plasterboard

Content: 20 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1926888 Fischer 545678 DUOBLADE S LD Drywall anchor 44 mm 20 pc(s)

Description

The fischer DUOBLADE is the newest member of the highly decorated DUO-Line and consists of several components for the best possible performance. The self-probing drill bit, enables a clean and effective drilling process. The bolt is in the pre-mounted installation with a cordless screwdriver or screwdriver surface is flush with gypsum or plaster fiber plates are screwed. The fischer DUOBLADE is adapted to wood, sheet metal and chipboard screws from 4 to 5 mm thick as well as different hooks and eyelets. Thus, it is universally suitable, for example, smoke detectors, curtain rods and shutters safely and quickly.
