Name: Fischer 545684 DuoBlade S K NV Drywall anchor 1 Set
Brand: Fischer
SKU: 3066092
Availability: InStock

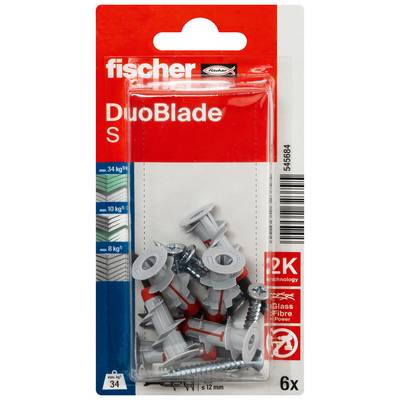

Packaging for Fischer DuoBlade S wall anchors and screws, showing a blister pack with 6 grey anchors and metal screws, rated for plasterboard.

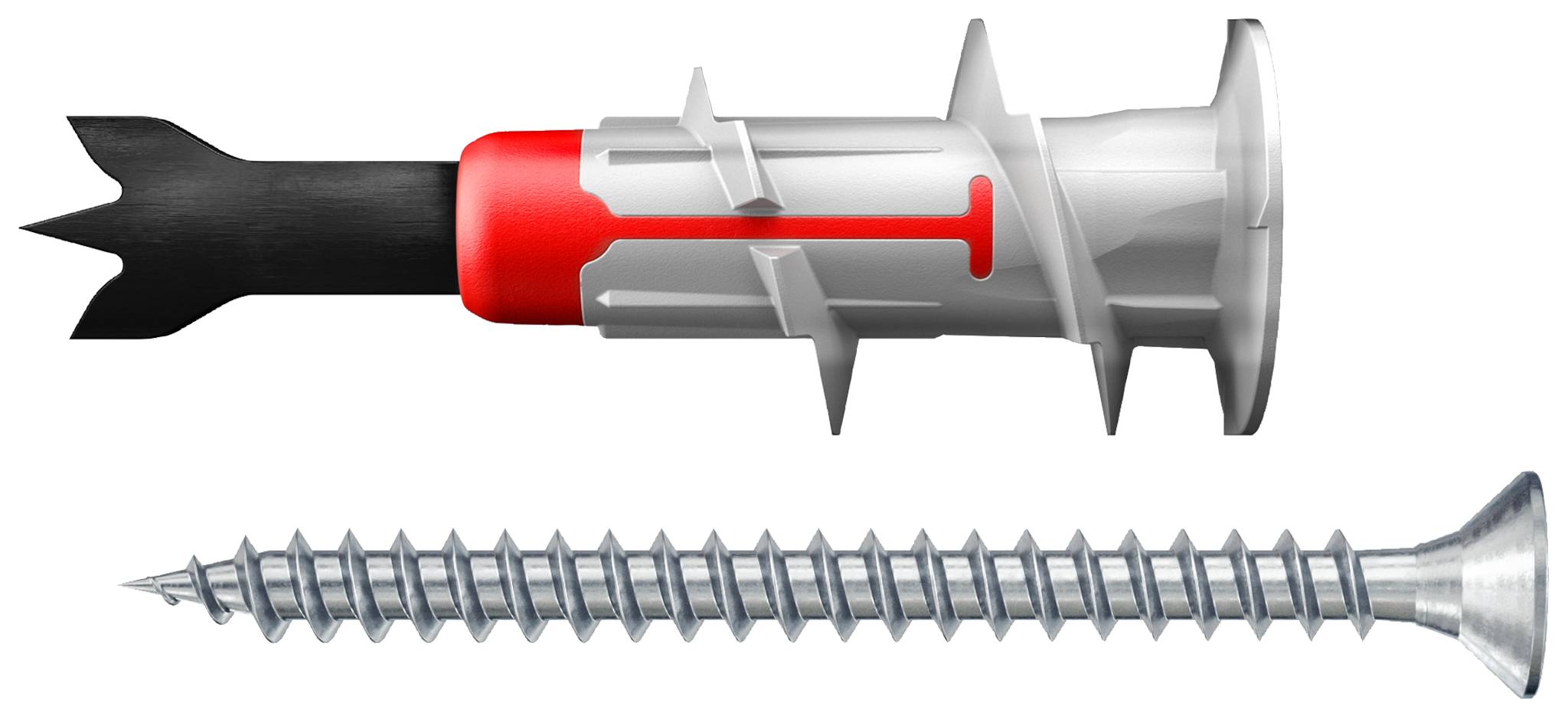

Illustration comparing a wall anchor with screw above and a long metal screw below.

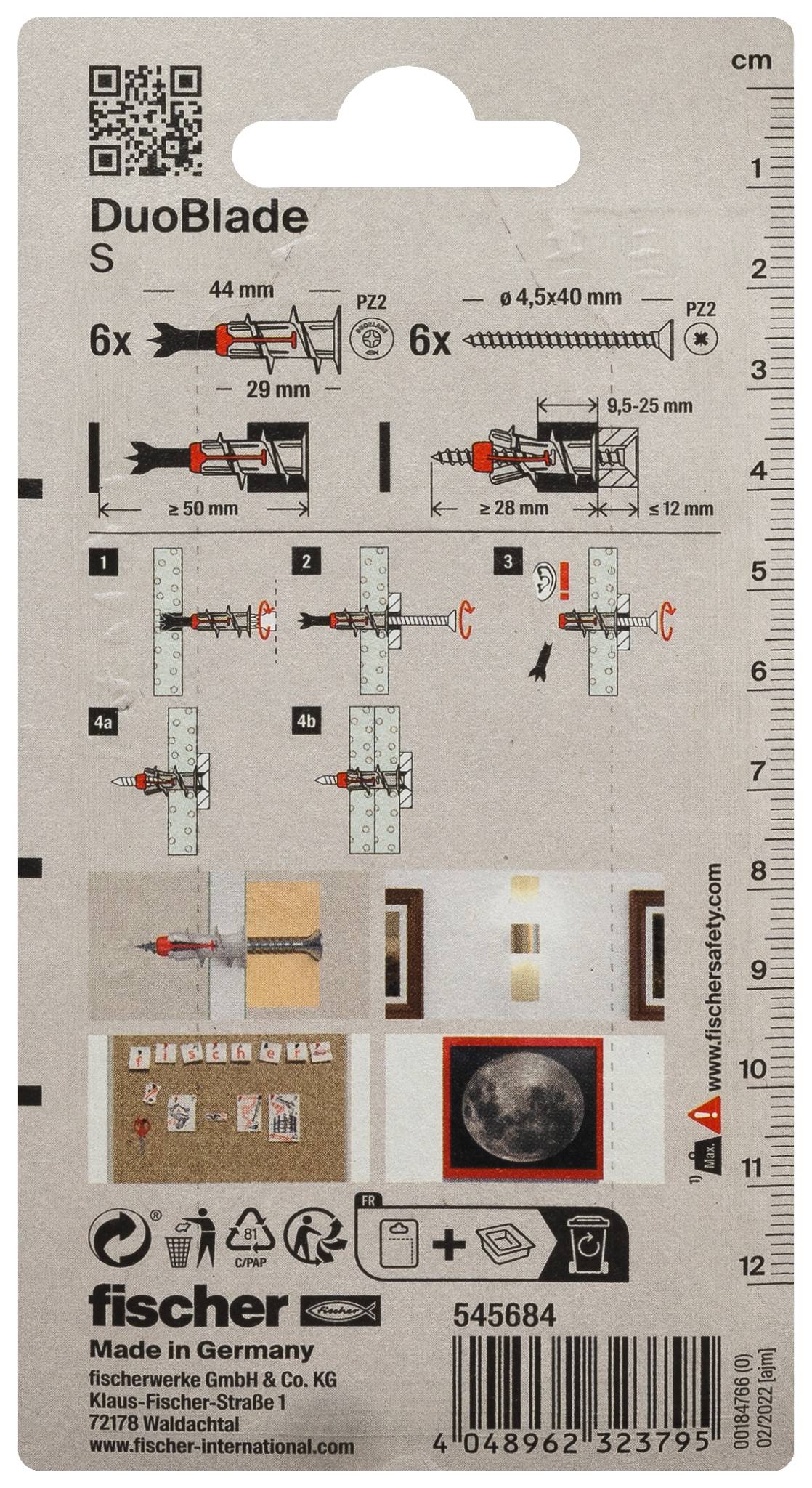

Package label for Fischer DuoBlade drywall anchors, showing 6x PZ2 screws, 44 mm anchors, and installation diagrams with measurements.

Wall-mounted black-framed mirror reflecting a sparse room with tiled floor and a potted plant; dresser with two vases at right.

White round ceiling smoke alarm mounted on a plain ceiling.<br>

Cross-section diagram of a wall anchor and screw fastening a wooden board to a concrete wall, showing the anchor expanding behind the wall<br>

Advertising graphic for the plasterboard anchor 'DuoBlade' by fischer featuring product illustration and benefit text on fast, secure installation in plasterboard and gypsum fibre boards.

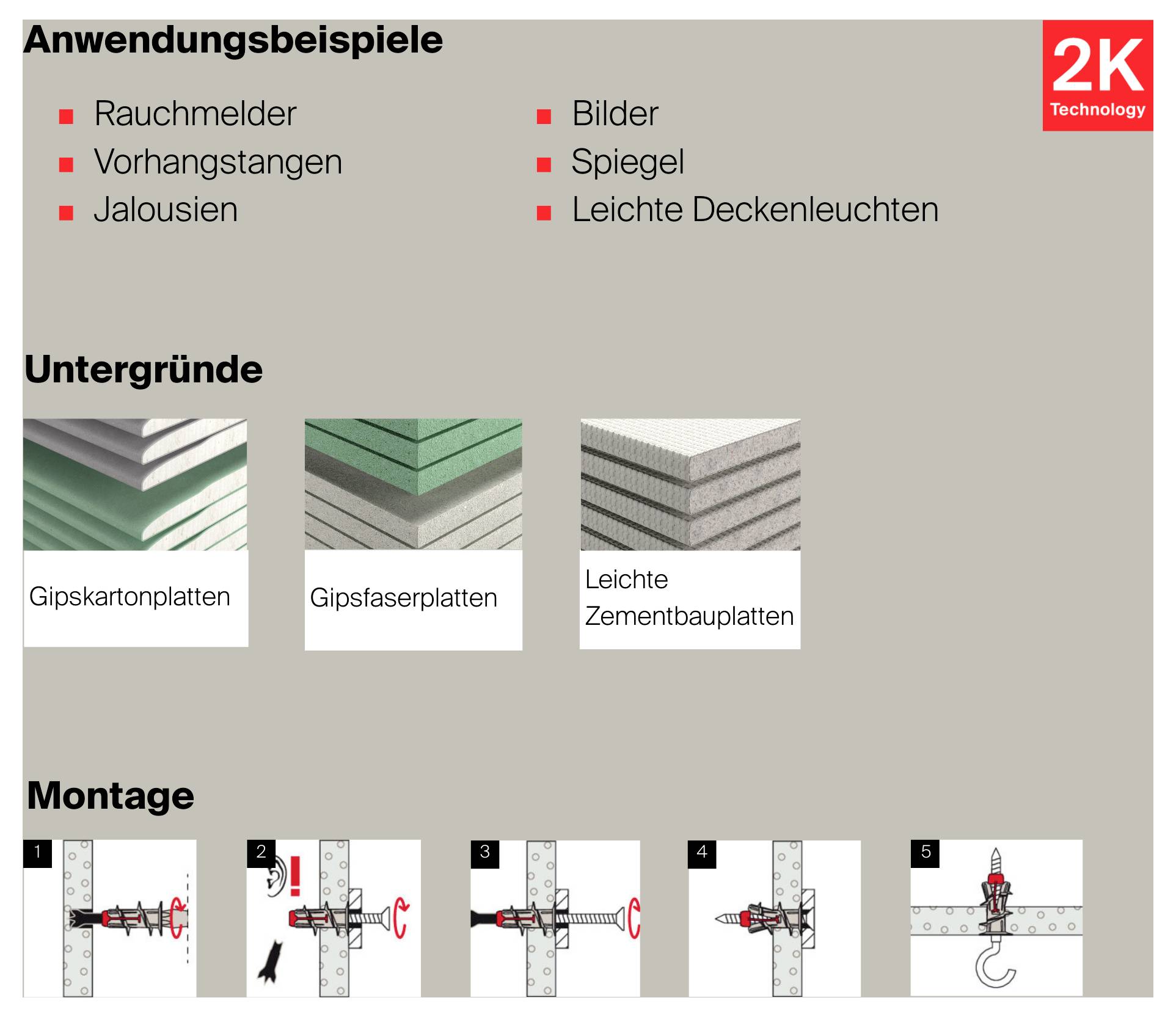

Infographic on applications and installation of a fastening system: for smoke detectors, curtain rails, blinds, pictures, mirrors and lightweight ceiling lights; suitable for plasterboard, gypsum fibreboard and lightweight cement building boards.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

29 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Fischer DuoBlade S K NV plasterboard plug

Self-drilling dowel for simple and quick installation in plasterboard
Centring piece for the point-exact setting of the plug
No rotation with the ribs of the shaft
Common cross slot tool holder (PZ 2) for easy installation
With matching screw.

Technical specifications

Dowel length 44 mm
Min Bore hole depth during pre-installation 50 mm
Min Thick to the first support layer 50 mm
Min Screw-in depth 28 mm
Screw dimensions 4.5 x 40 mm
Anchoring depth 9.5 - 25 mm
Dowel length without drill tip 29 mm
Clamping plate wood screws 4.5 -40 mm

Product type: Drywall anchor

Length: 44 mm

Screw diameter: 4.5 mm

Suitable for: Plasterboard
Plasterboard

Content: 1 Set

Features: incl. screw

Documents & Downloads

Datasheet

Datasheet 3066092 Fischer 545684 DuoBlade S K NV Drywall anchor 1 Set

User & Safety Instructions

User & Safety Instructions 3066092 Fischer 545684 DuoBlade S K NV Drywall anchor 1 Set

Information

Information 3066092 Fischer 545684 DuoBlade S K NV Drywall anchor 1 Set

Description

The Fischer DuoBlade is part of the innovative DuoLine and thus consists of several components for the best possible performance. The self-drilling tip allows a clean and effective drilling process. The plug is inserted flush into the gypsum plasterboard using a cordless screwdriver or a screwdriver. The Fischer DuoBlade is designed for wood, sheet metal and chipboard screws from 4 to 5 mm thickness, as well as different hooks and eyelets. This makes it universally suitable for quickly and securely fixing, for example, smoke detectors, curtain rods and blinds. The DuoBlade is placed in the gypsum board with a conventional PZ 2 drive. No special setting device is required. The self-drilling tip allows a clean and effective drilling process. The plug is inserted flush into the gypsum plasterboard using a cordless screwdriver or a screwdriver. The Fischer DuoBlade is designed for wood, sheet metal and chipboard screws from 4 to 5 mm thickness, as well as different hooks and eyelets. This makes it universally suitable for quickly and securely fixing, for example, smoke detectors, curtain rods and blinds. The DuoBlade is placed in the gypsum board with a conventional PZ 2 drive. No special setting device is required.
