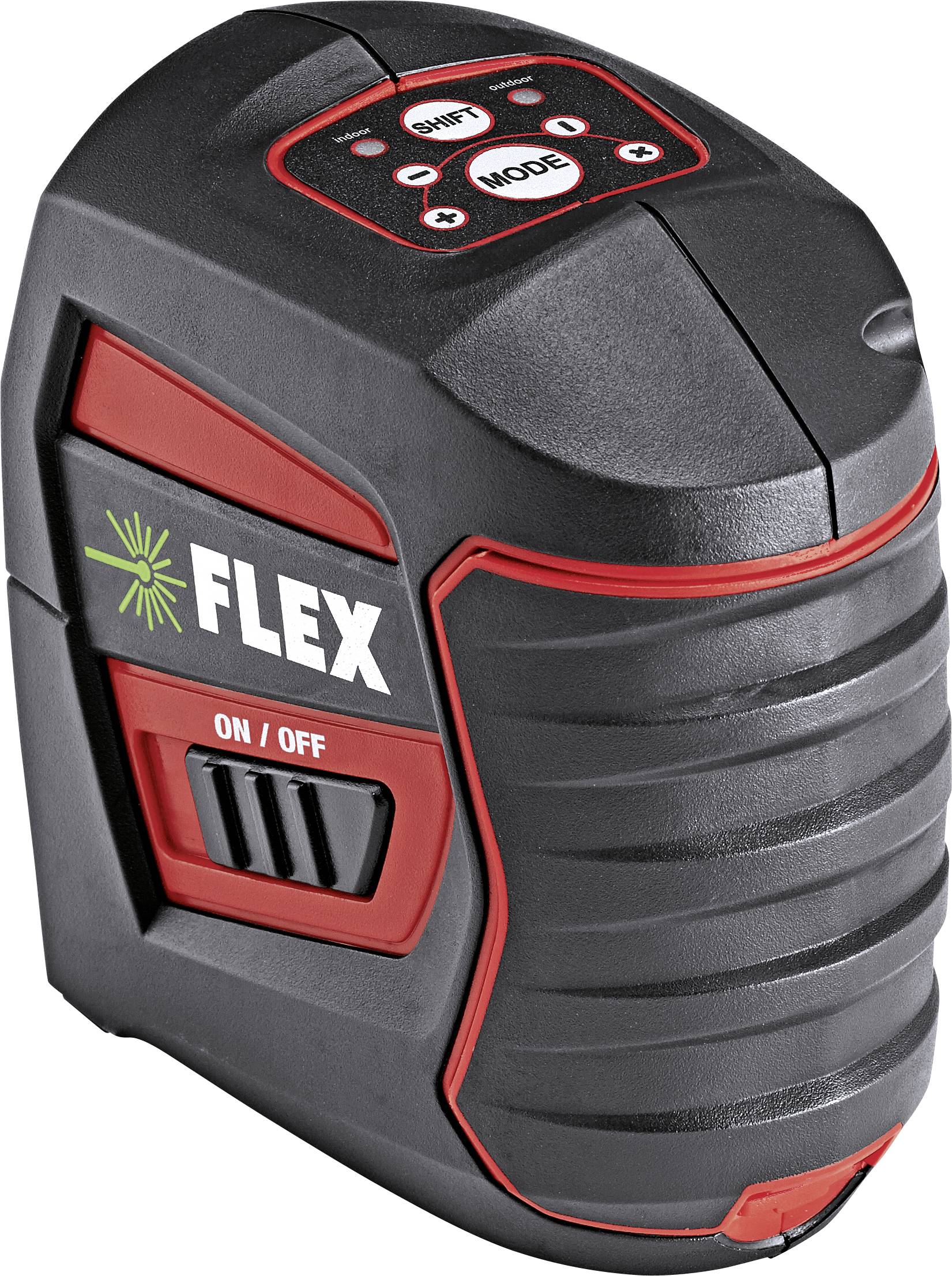

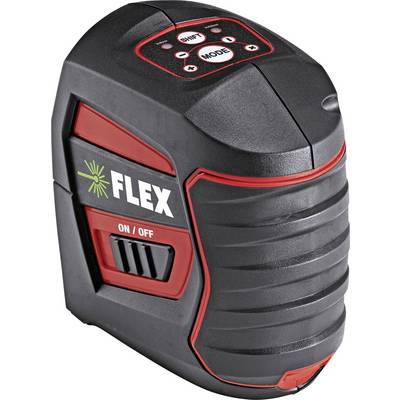

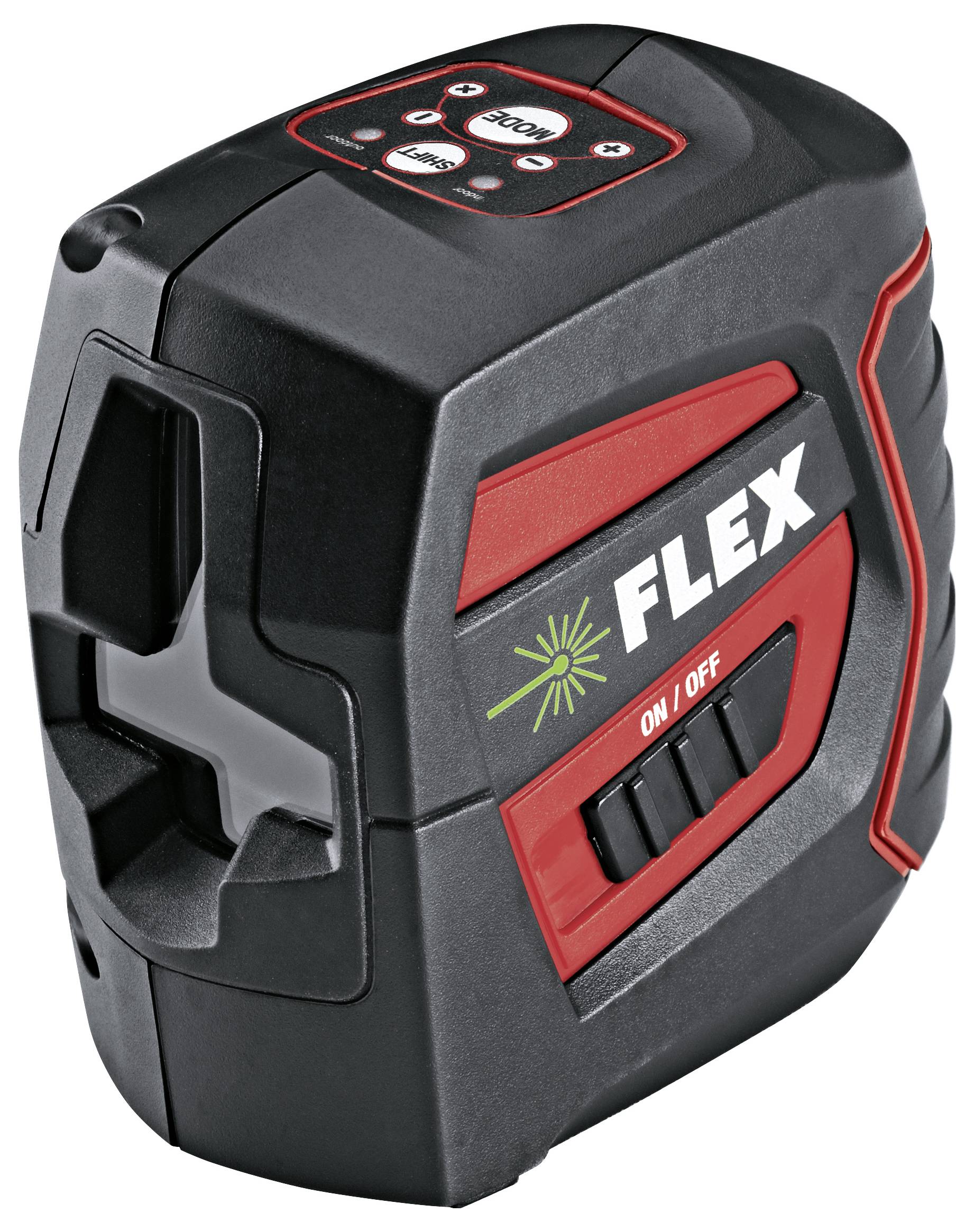

Flex ALC 2/1-G/R Cross line laser Self-levelling Range (max.): 50 m
EAN:
Part number:
Item no:
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
Technical specifications
- Number of lines horizontal: 1 pieces
- Number of vertical lines: 1 pieces
- Visible area lines horizontal: 110 °
- Visible area vertical lines: 110 °
- Max. Working range 50 m
- Max. Working range with receiver: 70 m
- Accuracy: ±0.3 mm
- Temperature range -5 to +50 oC
- Protection class: IP54
- Product type
Cross line laser
- Features
Self-levelling
- Range (max.)
50 m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Operating time (battery-powered)
10 h
- Power supply (details)
Built-in rechargeable battery
- Length
57 mm
- Width
96 mm
- Height
96.5 mm
- Dim
(L x W x H) 57 x 96 x 96.5 mm
- Weight
0.36 kg
Manufacturer's standards (no certificate)
- Type
ALC 2/1-G/R
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3779053 Flex ALC 2/1-G/R Cross line laser Self-levelling Range (max.): 50 m
Description
With each individually switchable horizontal and vertical laser line, specially anti-glare glasses provide clean and high-precision laser lines, green laser diode, the green line pattern is clearly clearer in the display and also still well visible under poor light conditions, extends the range of 50 meters, with receiver up to 70 meters, self-leveling, optical warning signal with exceeding the self-leveling range, self-leveling can be switched off, simple use, integrated Li-polymer battery, transportation lock, 1/4" thread for stand
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 carrying case
- 1 USB cable
- 1 USB charger
- 1 Laser wall bracket (428167)
