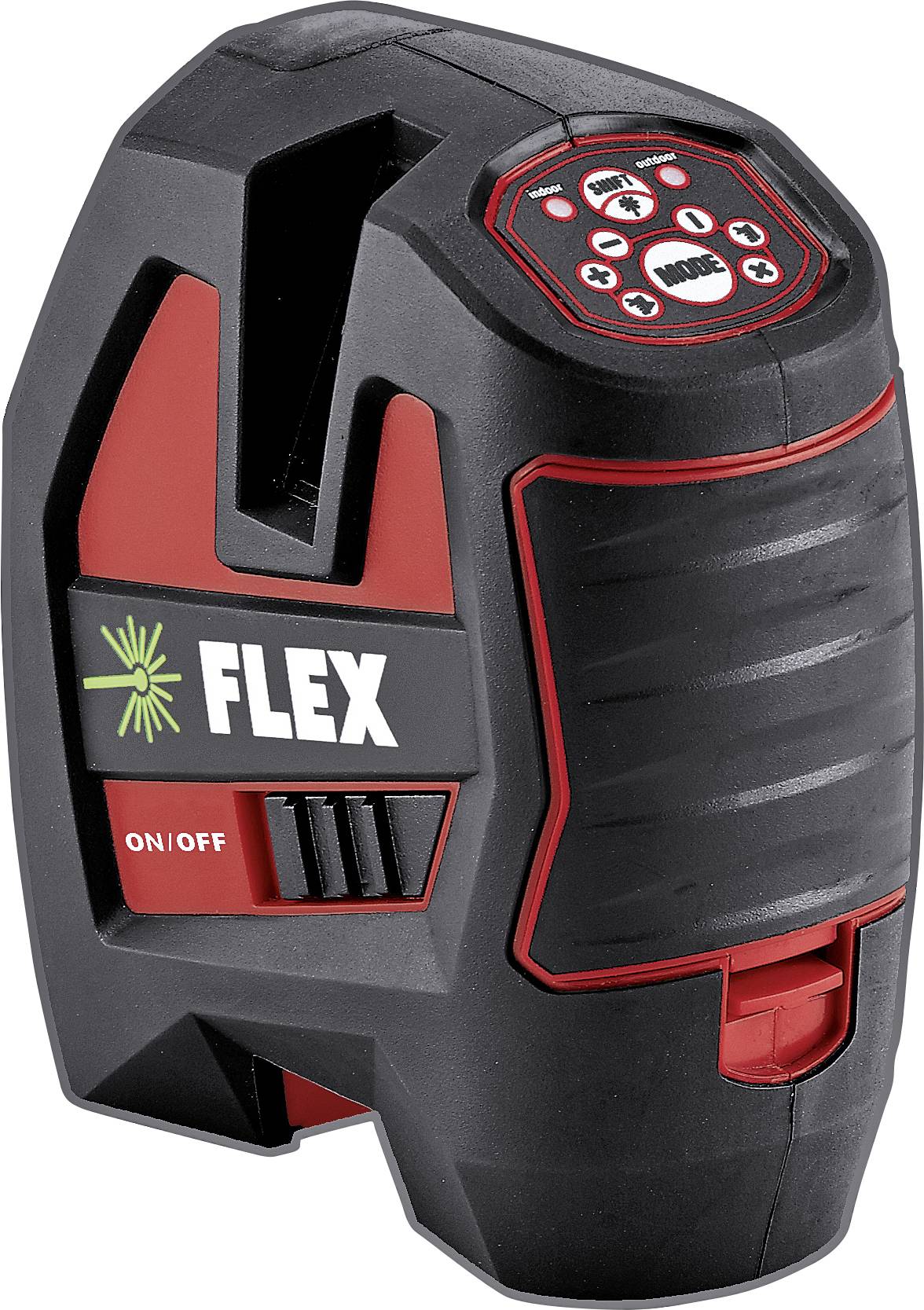

Flex ALC 3/1-G/R Cross line laser Self-levelling Range (max.): 20 m
EAN:
Part number:
Item no:
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
Technical specifications
- Number of lines horizontal: 1 pieces
- Number of vertical lines: 2 pieces
- Visible area lines horizontal: 110 °
- Visible area vertical lines: 110 °
- Soldering function: Yes
- Max. Working range 20 m
- Max. Working range with receiver: 70 m
- Accuracy 0.3 / solder 0.6 mm
- Temperature range -5 to +50 oC
- Product type
Cross line laser
- Features
Self-levelling
- Range (max.)
20 m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Power supply (details)
Built-in rechargeable battery
- Length
60 mm
- Width
112 mm
- Height
126 mm
- Dim
(L x W x H) 60 x 112 x 126 mm
- Weight
0.53 kg
Manufacturer's standards (no certificate)
- Type
ALC 3/1-G/R
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3779054 Flex ALC 3/1-G/R Cross line laser Self-levelling Range (max.): 20 m
Description

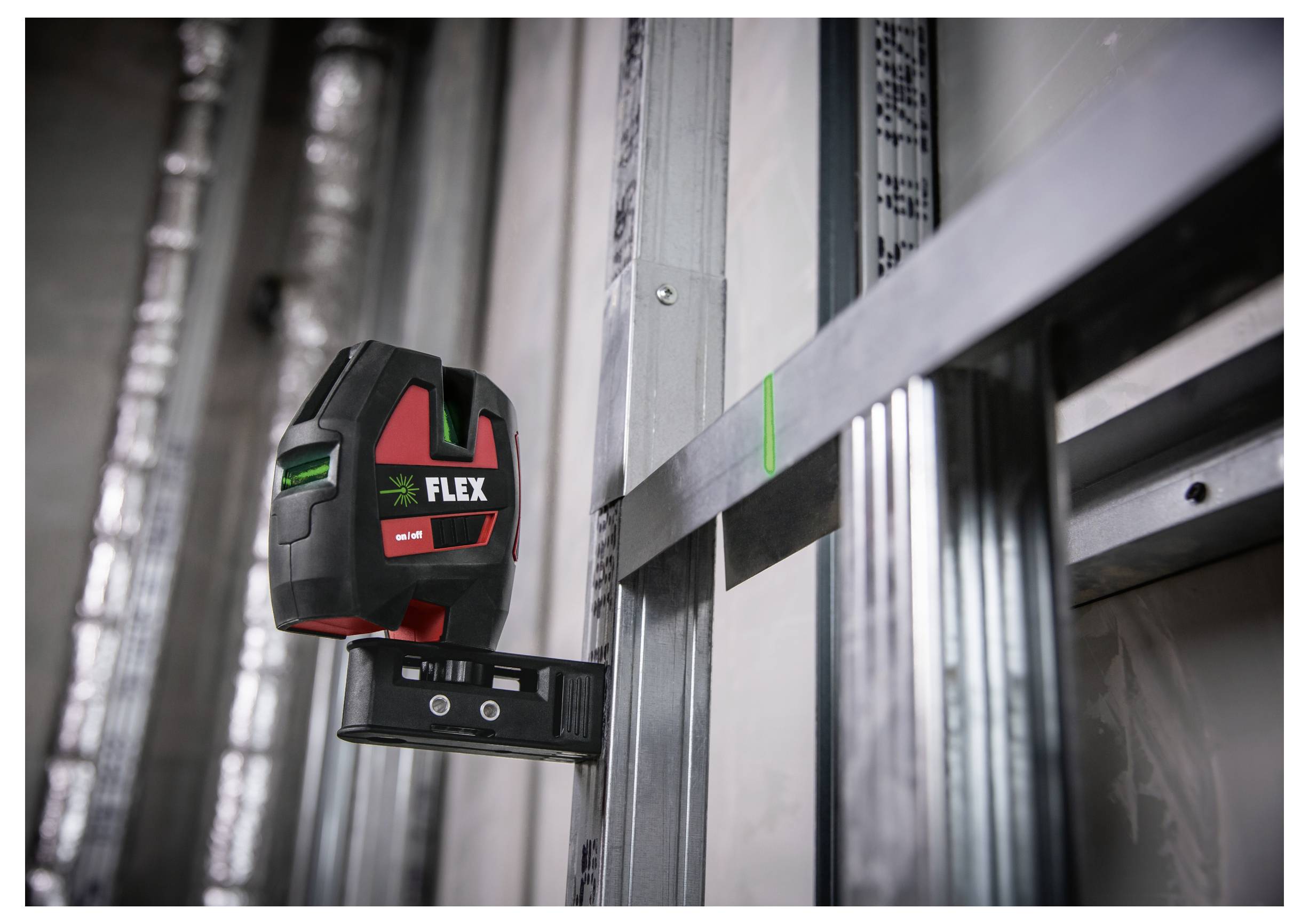

With one horizontal and two vertical Laser lines in 90° angle plus Lot (red Laser line), individually adjustable, Lot function, specially designed anti-glare Glasses provide clean and high-precision Laser lines, green Laser diode, the green Line image is clearly clearer in the representation and even under poor light conditions still well visible, Extends the range of 50 meters, with receiver to up to 70 meters, self-leveling, optical warning signal with exceeding the self-leveling range, self-leveling can be switched off, easy operation, transport safety, integrated Li-polymer battery, 1/4" Thread for stand, Ideal for aligning the stand
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 carrying case
- 1 USB cable
- 1 USB charger
- 1 Laser wall bracket (428167)
