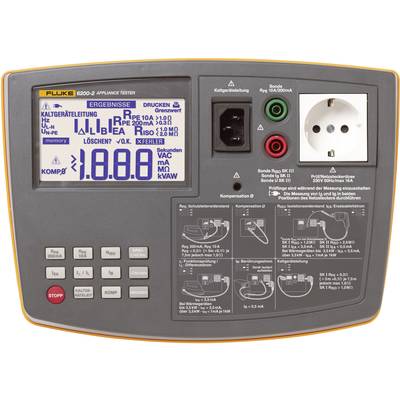

Fluke 6200-2 Electrical tester VDE standard 0413
EAN:
Part number:
Item no:
Total (€ 1,509.00 / piece)
€ 1,509.00
incl. VAT
14-day return policy included
Highlights & Details
Fluke 6200-2 portable device tester according to DIN VDE 0701-0702
- Single button operation
- Lightweight
- Small Size
Technical specifications
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
- Dim
(L x W x H) 200 x 275 x 114 mm
- Weight
3.13 kg
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Continuity
Touch voltage
Voltage
Current
Power
- DIN standard
DIN EN 61557
- Display type
Digital (LCD)
- Width
275 mm
- Height
114 mm
- Length
200 mm
- Test procedure
manual
- Voltage supply
230 V/AC
- Memory (space)
1000
- Memory
Yes
- Type
6200-2
- VDE standard
0413
- Features
incl. case
- Memory
1000 internal records
- Display (details)
LCD
- Interfaces
USB
- Standards
EN61557-1: 1997, EN61557-2: 1997, EN61557-4: 1997, EN61557-6: 1997, DIN VDE0404-2
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1152484 Fluke 6200-2 Electrical tester VDE standard 0413
Information
Information 1152484 Fluke 6200-2 Electrical tester VDE standard 0413
Description
The device tester Fluke 6200-2 is characterised by low weight, small size, one-button operation and improved automatic tests. In this way, you can increase the number of tests on mobile devices per day. With the device tester 6200-2, measurements can be carried out faster, without their safety or the customer at risk. Each of the pre-test routines by pressing one key. This is much easier than the device via menu or the selection of multiple functions and enables faster and more efficient working. With a weight of 3 kg, the portable device tester 6200-2 extremely compact and can easily be carried when working on site. The enclosed stable hard-shell case protects the device during transport and also offers space for accessories and other devices. This portable device tester is - as all devices from Fluke - robust and designed for use on site. With a portable device tester from Fluke, they have a universal solution with all functions for testing of portable devices.
This text is machine translated.
This text is machine translated.
Features
- One-button operation: each test function is started via a special button
- Preset values for good/bad Enable saving of time
- Large display with backlight for easy reading
- Single power supply socket for the device connection
- Separate the IEC socket for easy testing of low heat device conductors
- Detachable measuring cables for quick replacement on site
- Built-in handle for easy transport
- USB port for data transfer.
Scope of delivery
- Portable device tester Fluke 6200-2
- User manual on CD
- Quick guide
- Carrying case made of hard plastic
- Test lead
- Probe tip
- Alligator clip
- Power cable.
