Name: Fluke FLUKE-II905 Gas leak detector Datalogger function, USB interface
Brand: Fluke
SKU: 3342385
Availability: BackOrder

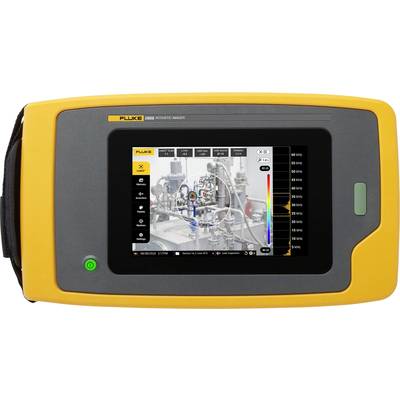

A yellow, portable measuring device with a screen displays a machine. The screen visually represents various acoustic measurement data.

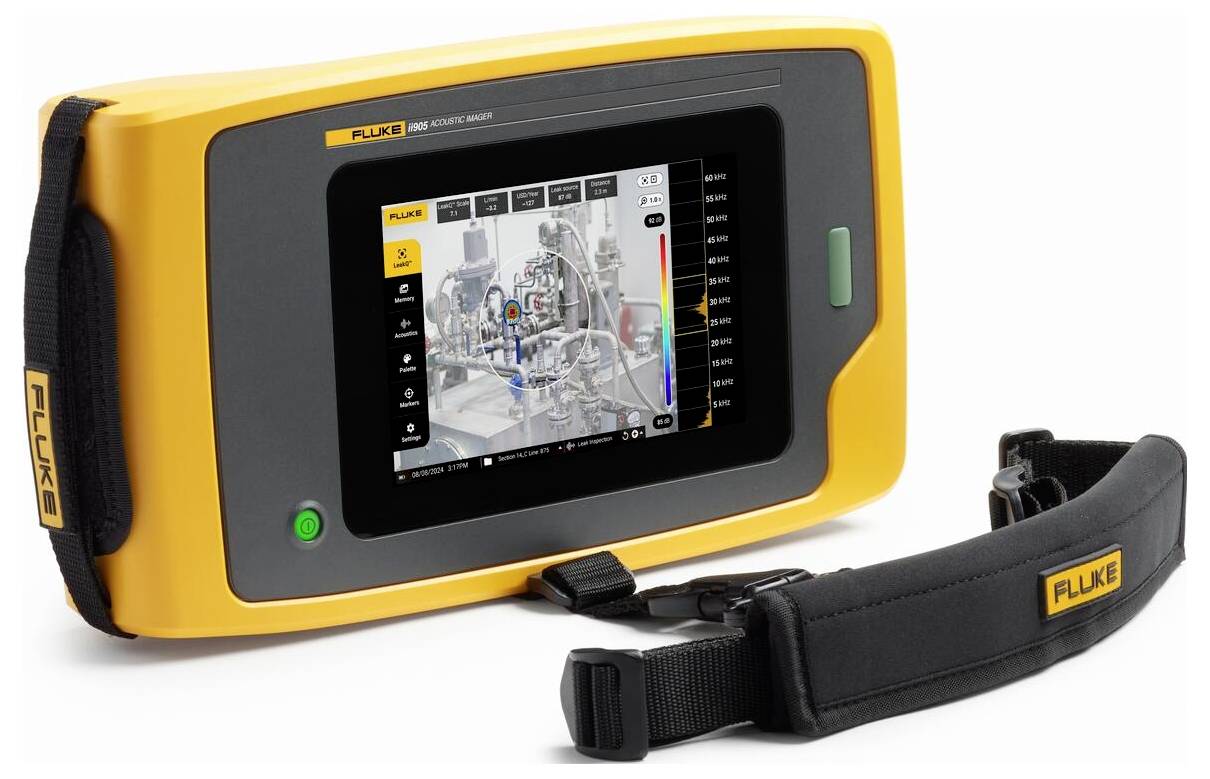

A portable yellow measuring device with a screen displays technical data. It has a black strap for transportation.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21,525.00 / piece)

€ 21,525.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Frequency 2 to 65 kHz
Detection range 0.5 to 70 m
5 MP camera resolution
Operating time 6 h
Storage: 32 GB
Field of view (FOV) 63°± 5°
Focus: Set permanently
Zoom: 3-way digital Zoom
5 MP digital camera resolution
17.8 cm (7") LCD screen
Display resolution 1280 x 800 (1,024,000 pixels)
Touch-screen: Capacitive
Sound measurement from 15.4 to 133.1 dB
Operating temperature: -10 °C to + +45 °C.

Product type: Gas leak detector

Unit of measurement: Vacuum
Gas

Dim: (L x W x H) 68 x 322 x 186 mm

Features: Datalogger function
USB interface

Weight: 2 kg

Width: 322 mm

Height: 186 mm

Length: 68 mm

: IP40

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3342385 Fluke FLUKE-II905 Gas leak detector Datalogger function, USB interface

Security datasheet

Security datasheet 3342385 Fluke FLUKE-II905 Gas leak detector Datalogger function, USB interface

Description

The Fluke i905 Sound Camera with LeakQ™ Technology helps maintenance teams detect, locate, and evaluate vacuum and gas leaks. The device's own algorithms and analysis software included in LeakQ™ mode provide an estimate of the size and cost of leaks. The integrated visual and textual highlighting and annotation features provide important details for optimizing reports and follow-up actions. Without training, the maintenance teams can now check for gas and vacuum leaks, even during ongoing production. The 17.8 cm (7") large LC-touch screen overlays a visual picture with a SoundMap™ ("Sound image"), so that the place can be localized quickly. The device's own algorithms and analysis software included in LeakQ™ mode provide an estimate of the size and cost of leaks.

This text is machine translated.

Features

Simple, fast and reliable visual detection of leaks in compressed gas plants with the LeakQ™️ mode including estimation of the size of leaks and costs
On the 17.8 cm (7") large LC-touch-screen the SoundMap™ ("sound image") and the view picture are superimposed. This facilitates the rapid detection of leaks
The integrated visual and textual highlighting and annotation features provide important details for optimizing reports and follow-up actions
Wireless data transmission on-site to Fluke Connect

Scope of delivery

Sound camera
Li-ion battery
USB-C cable
Sturdy hard top case
Cover for sensor arrangement
Adjustable carrying strap
Adjustable carrying strap
