Buy Fluke i1010KIT Clamp meter adapter A/AC reading range: 1 - 600 A A/DC reading range: 1 - 1000 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

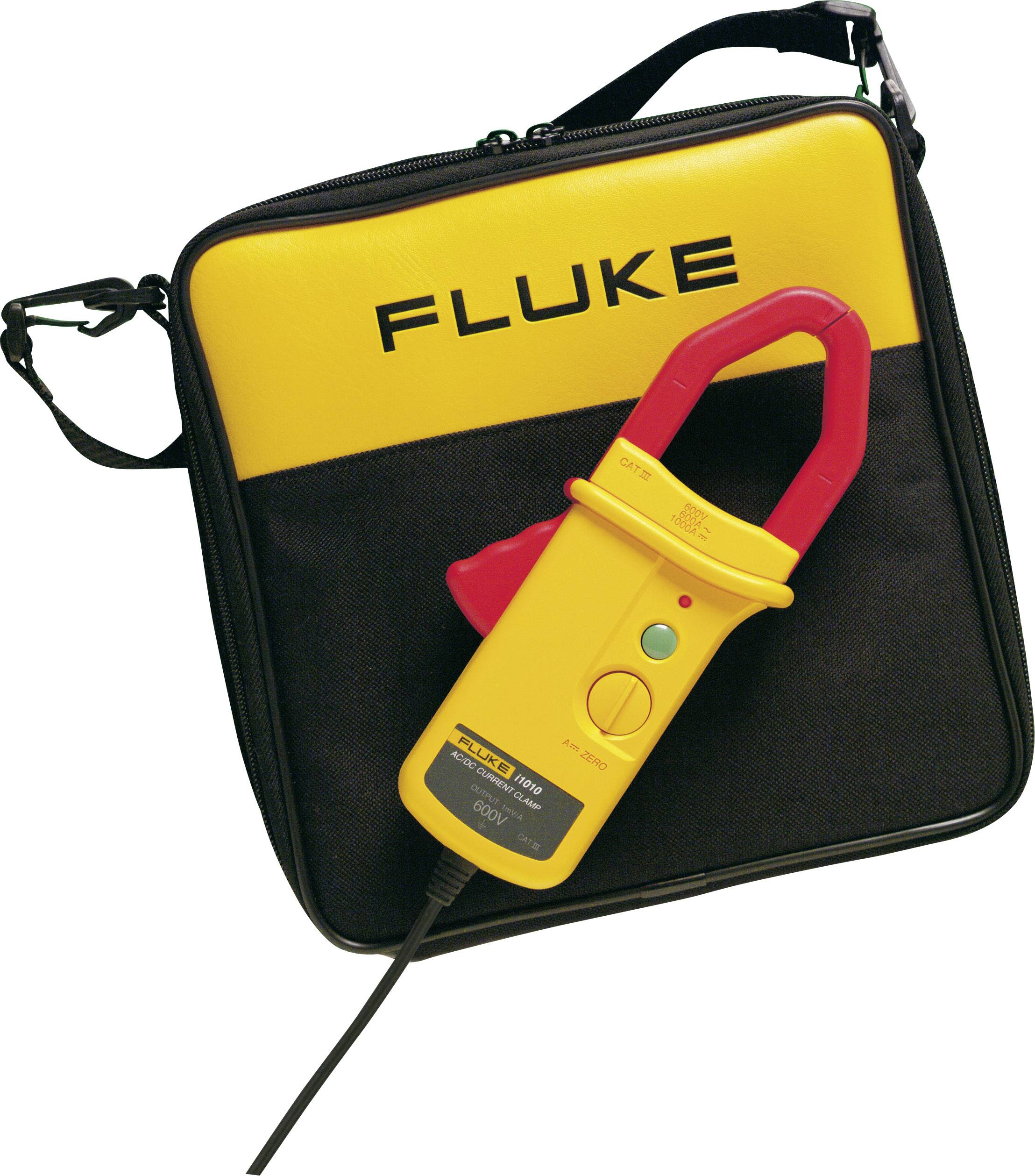

A yellow-red electrical measuring device on a black and yellow Fluke branded bag. It is designed for current measurements.

A yellow-red electrical measuring device on a black and yellow Fluke branded bag. It is designed for current measurements.

Fluke

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 915.00 / piece)

€ 915.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

AC/DC clamp-on ammeter adapter Fluke - i1010 kit

N/A
Opening range of current clamps 30 mm

Technical specifications

Measuring range DC: 1 -1000 (±2% +0.5 A)
Measurement range AC: 1 - 600 A (up to 10kHz) (±2% +0.5 A)

Opening range of current clamps: 30 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 1 A

Amperage reading range AC (max.): 600 A

Basic accuracy: ± 2 %

Amperage reading range DC (min.): 1 A

A DC reading range (max.): 1000 A

Power supply (details): 9 V battery pack

Dim: (L x W x H) 48 x 78 x 209 mm

Current reading: AC/DC

Reading category: CAT III 600 V

Weight: 500 g

Output signal (max.): 1 mV

Width: 78 mm

Height: 209 mm

Length: 48 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 121368 Fluke i1010KIT Clamp meter adapter A/AC reading range: 1 - 600 A A/DC reading range: 1 - 1000 A

Features

Fluke clamp-on ammeters are ideal for expanding the current measuring range of Fluke measuring instruments. Battery operated Hall-effect-probe for measurements from 1 A to 400 A
1 mV per current output for good readability on your measuring device
Exact current measurement without having to break the circuit.

Scope of delivery

Storage pouch with zipper, large enough for an additional multimeter
Manual.

Description

Features

Fluke clamp-on ammeters are ideal for expanding the current measuring range of Fluke measuring instruments. Battery operated Hall-effect-probe for measurements from 1 A to 400 A
1 mV per current output for good readability on your measuring device
Exact current measurement without having to break the circuit.

Scope of delivery

Storage pouch with zipper, large enough for an additional multimeter
Manual.
