Name: Fränkische Rohrwerke 20910025 Pipe 3 m 3 m
Brand: Fränkische Rohrwerke
SKU: 3407219
Availability: InStock

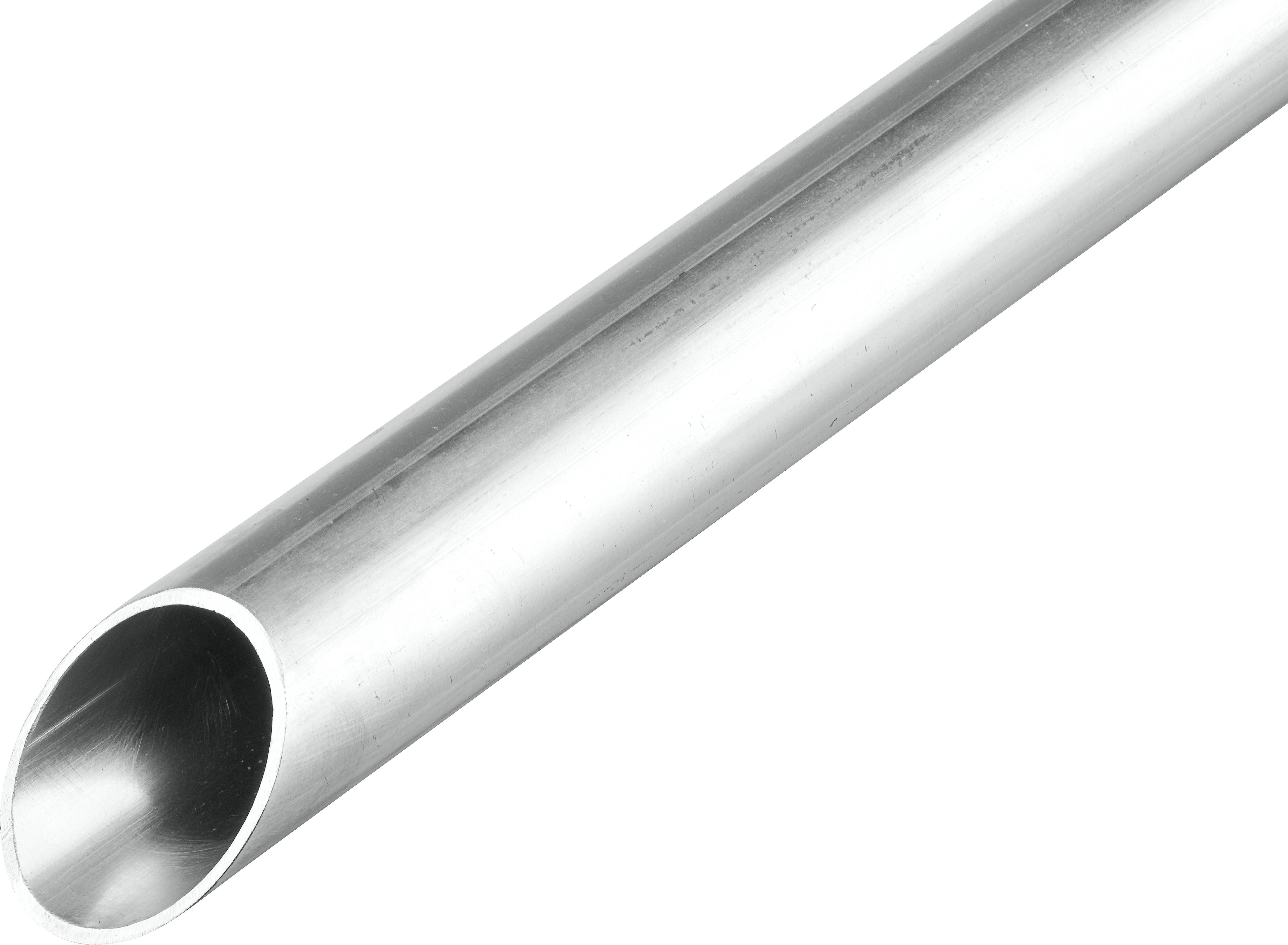

A long, gleaming metal tube lies diagonally in the image. It has a smooth, reflective surface and a round cross-section.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

6 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (1 m = € 7.00)

€ 20.99

incl. VAT

Only 6 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Material: Aluminium
Material quality: Other
Surface protection: Untreated
Quality of the surface coating: Uncoated
Polished surface: No.
Surface brushed: No.
Design: Rigid
Connection 1: Pipe end
Connection 2: Pipe end
Flush mounting: Yes
Surface mounting: Yes
Suitable for concrete installation: No.
Machinery and equipment installation: Yes
Underground installation (bitumen, hot asphalt): Yes
Underfloor installation (screed): No.
Outdoor installation: Yes
Installation on wood: Yes
Suitable for hollow wall installation: Yes
Suitable for laying in the ground: No.
Compressive strength: Heavy (class 4)
22.4 mm internal diameter
Outer diameter: 25 mm
Operating temperature -45..250°C

Product type: Pipe

Outside Ø: 25 mm

Inside diameter: 22.4 mm

Length: 3 m

Content: 3 m

Material: Aluminium

Compressive strength: 1250 N

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3407219 Fränkische Rohrwerke 20910025 Pipe 3 m 3 m

User & Safety Instructions

User & Safety Instructions 3407219 Fränkische Rohrwerke 20910025 Pipe 3 m 3 m

Description

Aluminum plug-IT is a heavy, extruded aluminum plug, in bars to 3M. This aluminum pipe is used for high mechanical requirements and for outdoor installations. The advantages are the high compressive strength and low weight. VDE 0605 DIN EN 61386-21 Minimum pressure resistance 1250N / 5cm
