FRITZFURT Drill stand Operating height (max.): 230 mm (L x W x H) 260 x 180 x 360 mm
EAN:
Part number:
Item no:
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Highlights & Details
FRITZURT adjustable drill stand 0-60°
- Delivers exceptional precision and versatility for professional commercial drilling tasks
- Optimized dimensions maximize workspace efficiency to accommodate diverse project requirements
- Solid aluminum construction with precision ball bearings ensures consistently smooth operation
Technical specifications
- Material: Aluminum 6061 base, guide block, and handle; alloy steel fixing rod
- Drill chuck: 1 - 10 mm
- Chuck capacity: 1 mm to 10 mm
- Chuck shank: 6.35 mm (1/4"") quick-change hex
- Drilling angles: +/- 60°
- Chuck travel: 215 mm
- Distance between bars: 90 mm
- Chuck tip to base underside: 240 mm
- Base aperture: 105 mm x 75 mm
- Operating height (max.)
230 mm
- Length
260 mm
- Width
180 mm
- Height
360 mm
- Weight
2.8 kg
- Product type
Drill stand
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3208310 FRITZFURT Drill stand Operating height (max.): 230 mm (L x W x H) 260 x 180 x 360 mm
Description

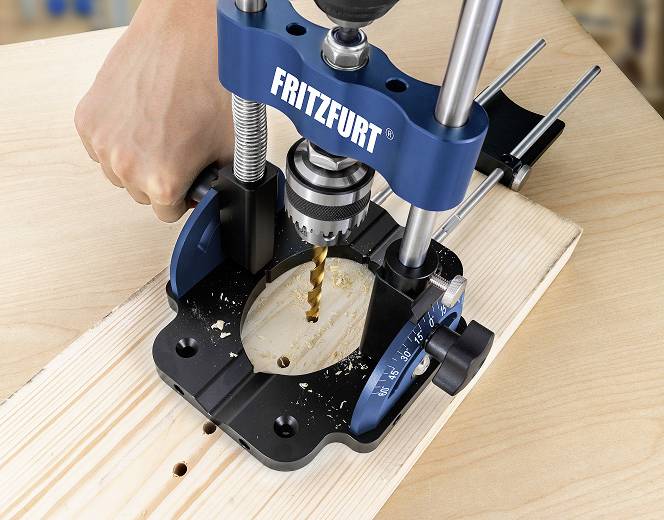

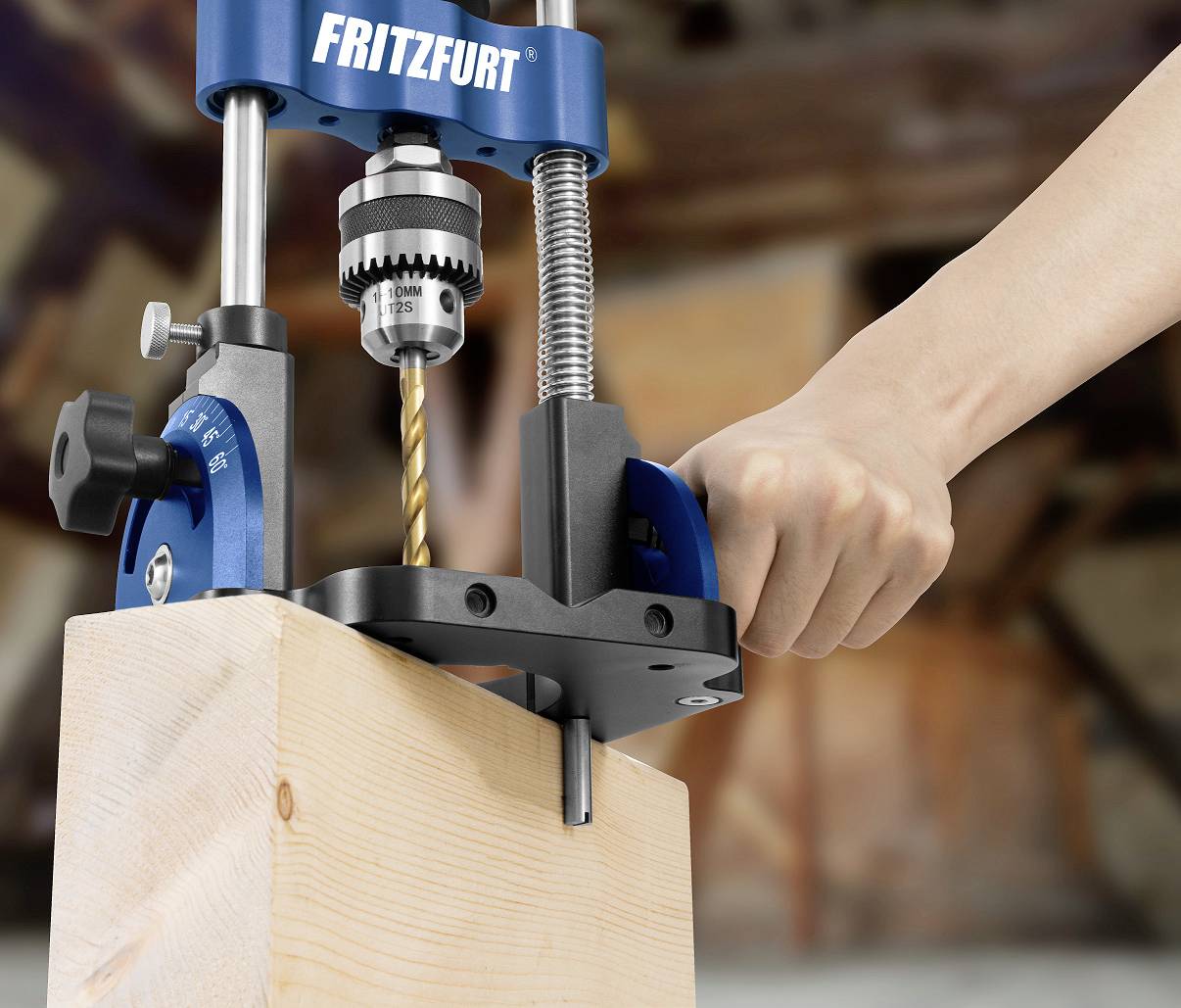

The FRITZURT drill stand is versatile, perfect for straight or angled drilling, professional for working on the edge of a board or round material.

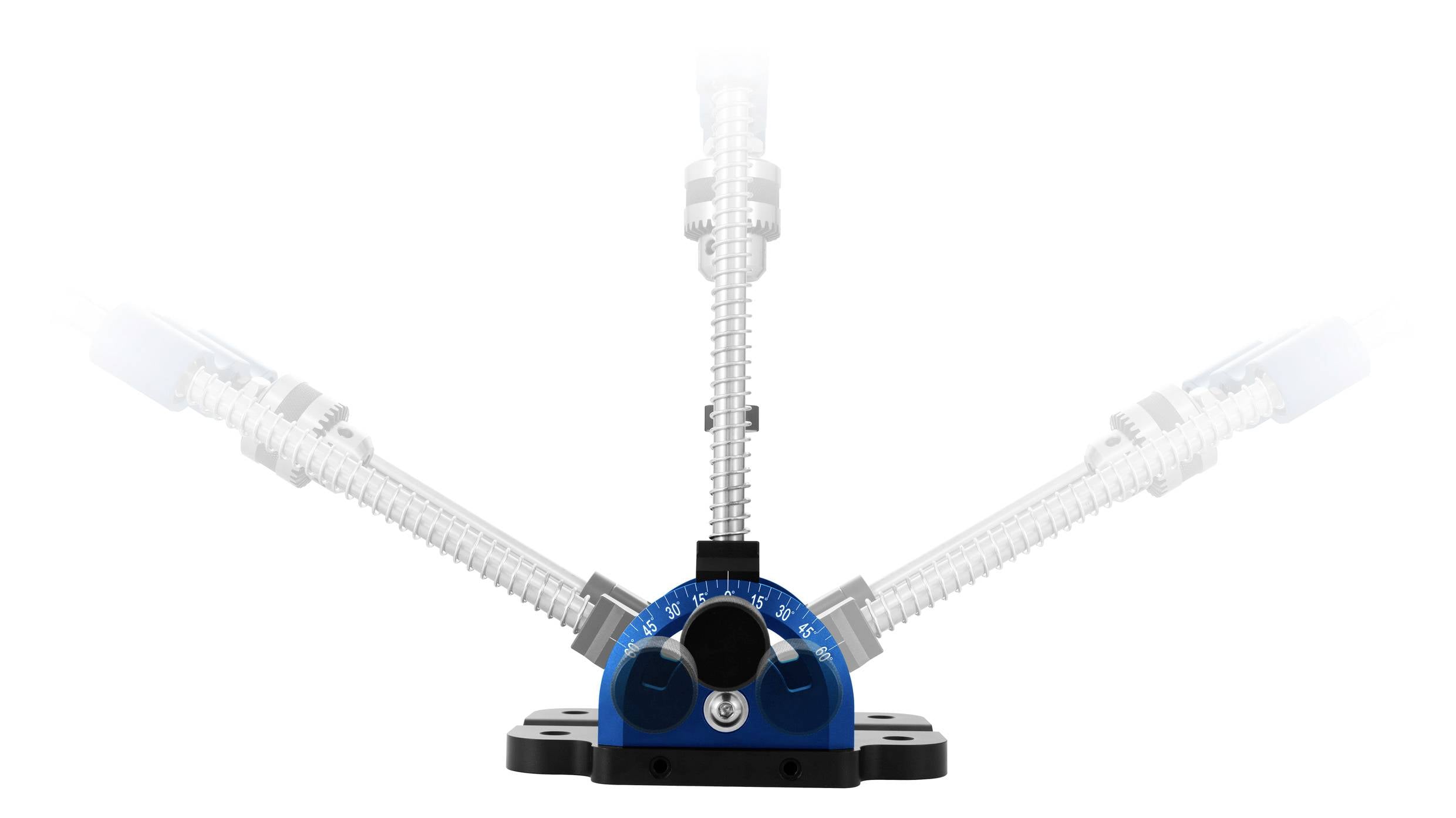

Precise drilling and adjustable angle, each angle from 0° to 60° with the help of the easy to read angle gauge scale.
Sturdy aluminum base to prevent tilting.
This text is machine translated.
Precise drilling and adjustable angle, each angle from 0° to 60° with the help of the easy to read angle gauge scale.
Sturdy aluminum base to prevent tilting.
This text is machine translated.
Features
- Versatile 10 mm chuck accommodates a wide variety of commercial drill bits.
- Provides 210 mm maximum travel distance and 230 mm of chuck-to-base clearance.
- Broad drilling angle range is easily adjustable from 0° to ±60°.
- Integral V-guides securely stabilize round stock and pipes during drilling operations.

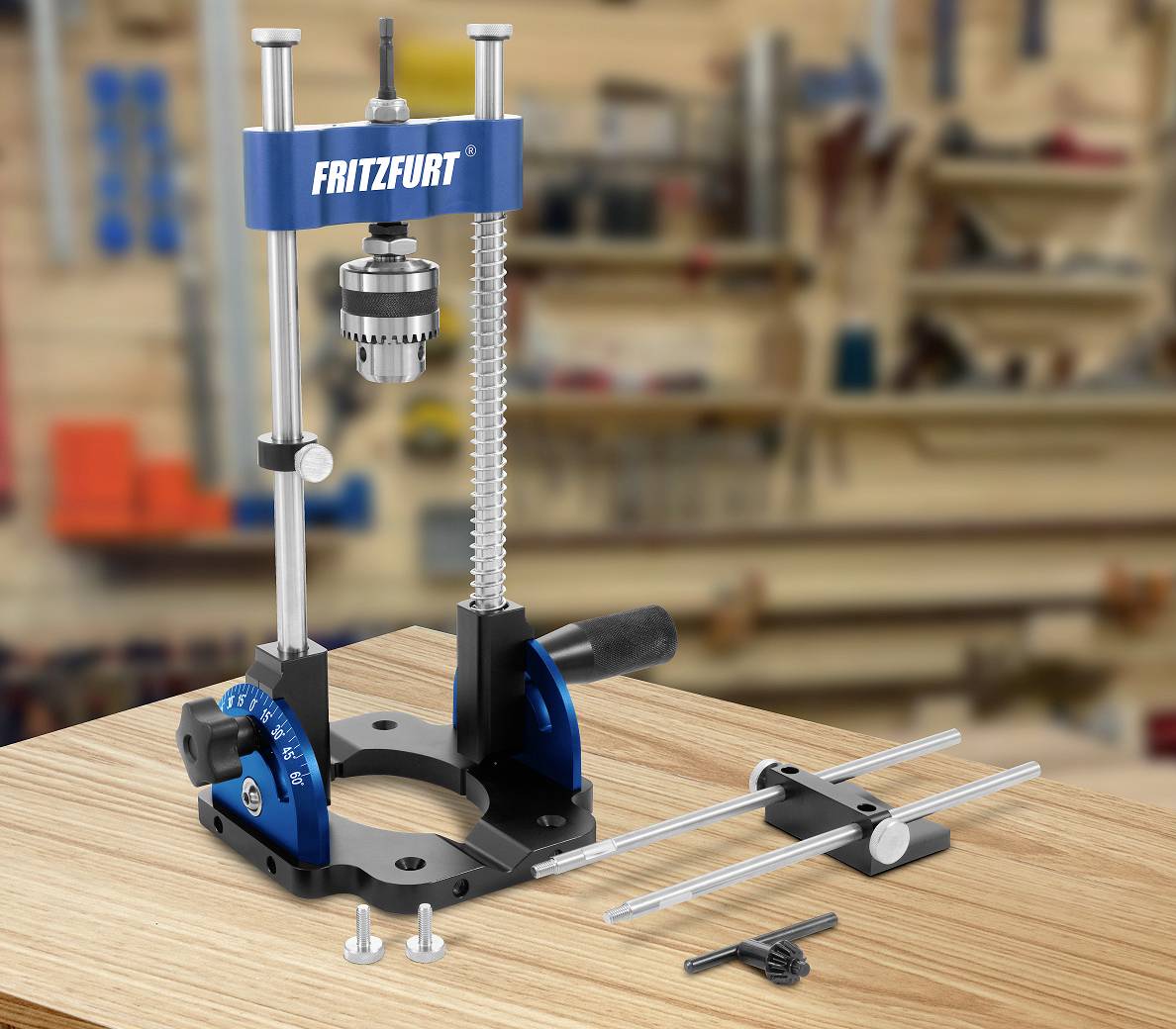

Scope of delivery
- Fritzfurt drill stand
