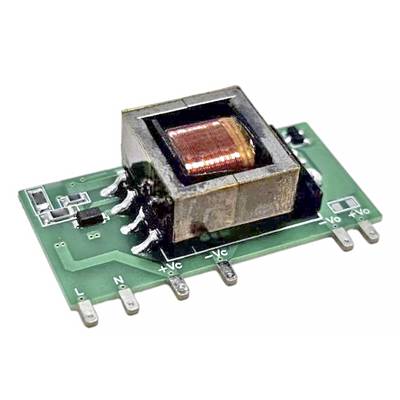

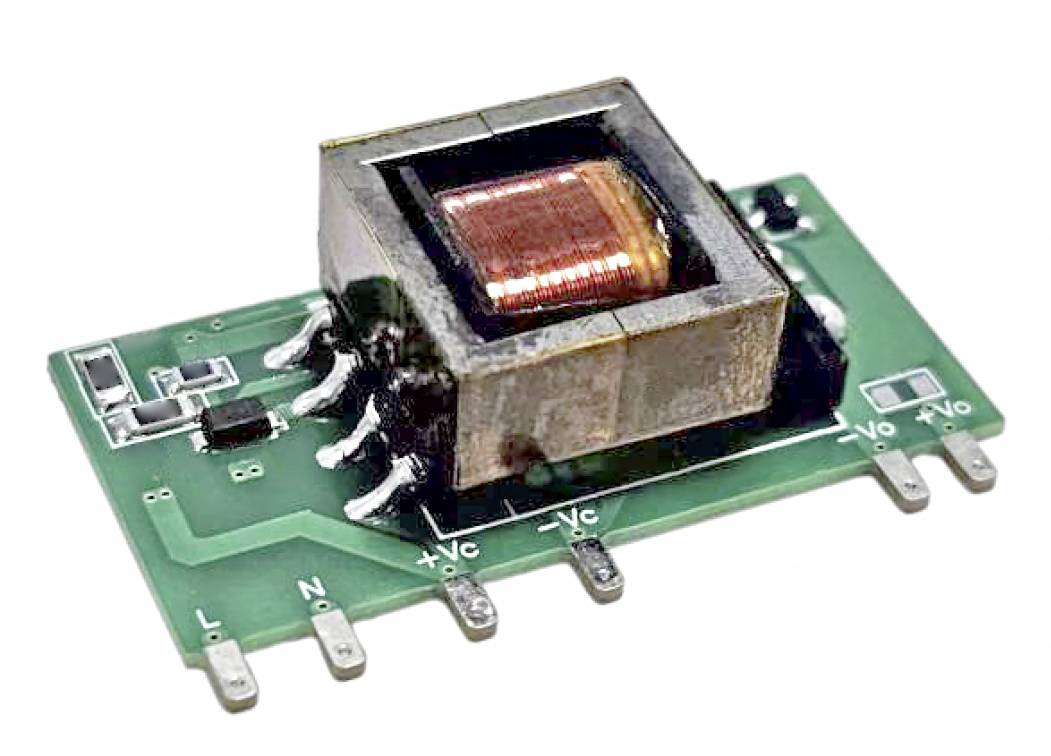

Gaptec 15ACFE1W_12S3.6 AC/DC converter 12 V DC 1250 mA 15 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Highlights & Details
AC/DC converter output: 12V 85-305VAC, 120-430VDC
- Output 12 V DC / 1250 mA
- Power 15 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
528 V AC
745 V DC
- Max. output current
1250 mA
- Output current (max.) - rounded
1.25 A
- Min. input voltage
176 V AC
248 V DC
- Dim
(L x W x H) 40.0 x 15.0 x 23.0 mm
- Output voltage (max.)
12 V DC
15 W
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
20 g
- Width
15.0 mm
- Height
23.0 mm
- Length
40.0 mm
- Type
15ACFE1W_3.6
- Enclosure
SIP 6
- Efficiency
82 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3352664 Gaptec 15ACFE1W_12S3.6 AC/DC converter 12 V DC 1250 mA 15 W
User & Safety Instructions
User & Safety Instructions 3352664 Gaptec 15ACFE1W_12S3.6 AC/DC converter 12 V DC 1250 mA 15 W
Description
AC/DC converter output: 12V 85-305VAC, 120-430VDC
