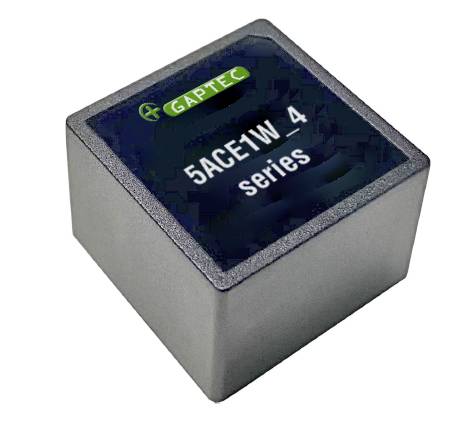

Gaptec 5ACFE1W_12S4 AC/DC converter 12 V DC 420 mA 5 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.49 / piece)
€ 6.49
incl. VAT
14-day return policy included
Highlights & Details
AC/DC converter output: 12V 85-528Vac, 100-745Vdc
- Output 12 V DC / 420 mA
- Power 5 W
Technical specifications
- Product type
AC/DC converter
- Input voltage (max.)
528 V AC
745 V DC
- Max. output current
420 mA
- Output current (max.) - rounded
420 mA
- Min. input voltage
85 V AC
127 V DC
- Dim
(L x W x H) 33.5 x 13.5 x 20.0 mm
- Output voltage (max.)
12 V DC
5 W
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
35 g
- Width
13.5 mm
- Height
20.0 mm
- Length
33.5 mm
- Type
5ACFE1W_4
- Enclosure
SIP 6
- Efficiency
78 %
- Insulation voltage
4 kV
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3355918 Gaptec 5ACFE1W_12S4 AC/DC converter 12 V DC 420 mA 5 W
User & Safety Instructions
User & Safety Instructions 3355918 Gaptec 5ACFE1W_12S4 AC/DC converter 12 V DC 420 mA 5 W
Description
AC/DC converter output: 12V 85-528Vac, 100-745Vdc
