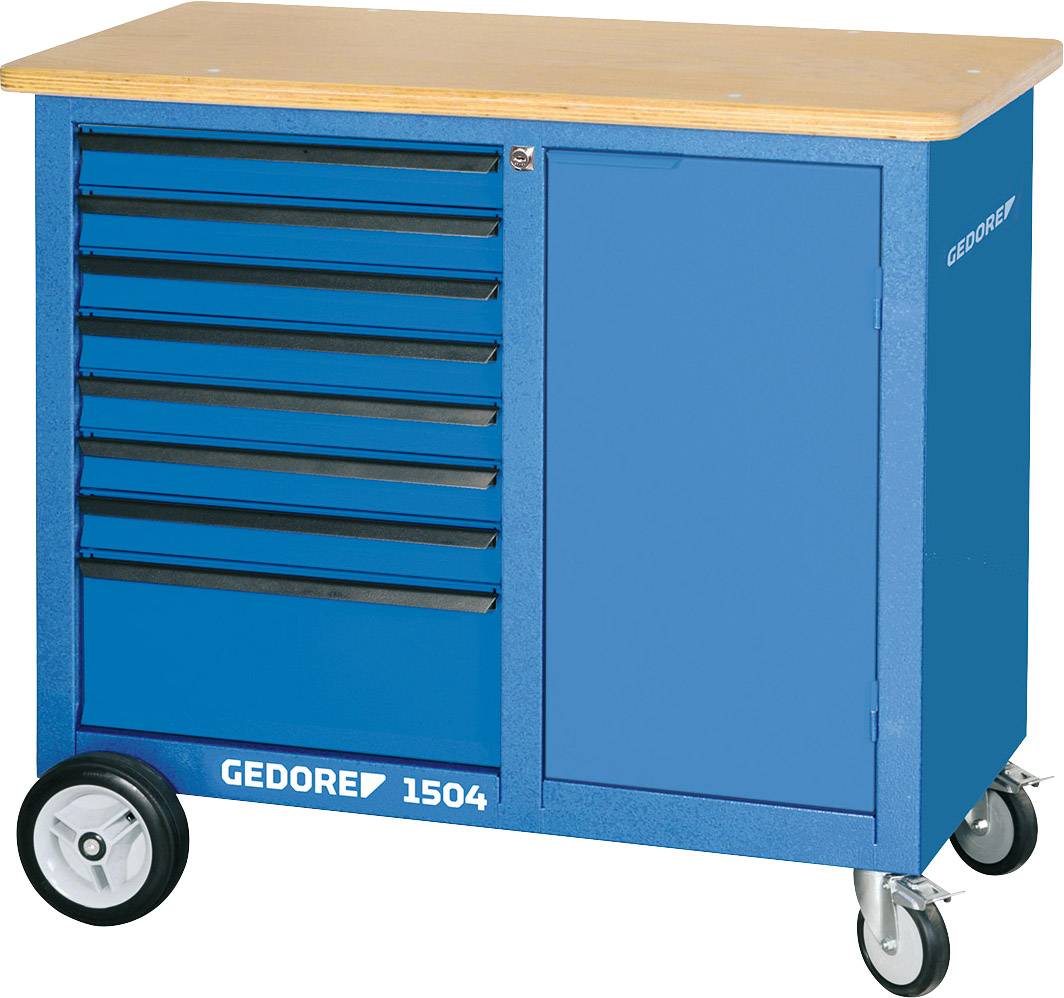

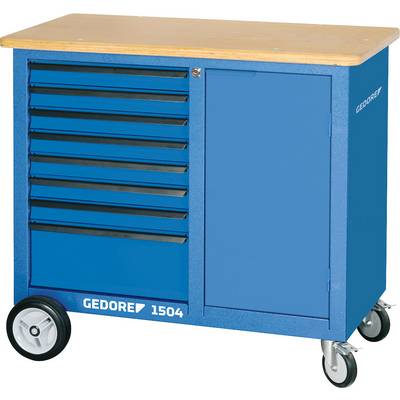

Gedore 1814931 Mobile bench (W x H x D) 1100 x 985 x 550 mm Blue
EAN:
Part number:
Item no:
Number
Total (€ 1,797.48 / piece)
€ 1,797.48
plus VAT.
Technical specifications
- Body:
- Dimensions: H985 x W 1100 x T550mm;
- 30 mm thick multiplex reserve layer wooden plate, surface through linseed oil varnish additionally protected;
- Large storage space with shelf and door;
- Security through heel protection for persons;
- Drawers:
- Central locking with cylinder lock;
- Width drawers (B480 x T400 mm) with full extension, removable;
- Safety lock per drawer, single-handed operation
- Ball-bearing guide rails;
- Individual configuration by longitudinal and cross dividers (also available individually);
- Load capacity per drawer 40 kg, lower heavy load tray 60 kg;
- GEDORE high-performance chassis:
- Total load capacity 700 kg, in the mobile operation 500 kg;
- 2 rollers GEDORE high-performance wheels (rollers diameter 200 mm); 2 ball-bearing GEDORE smooth running wheels (steering wheels Ø 125 mm), both with total hard plate;
- GEDORE trapezium axle construction provides even at maximum load: smooth running, agility, and track
- Dim
(W x H x D) 1100 x 985 x 550 mm
- Product type
Mobile bench
- Width
1100 mm
- Thickness (worktop)
30 mm
- Height
985 mm
- Inside dimensions (H x W x D) mm
480 mm x 400 mm
- Factory colour
Blue
- Depth
550 mm
- Material (worktop)
Multiplex
- Weight
99 kg
- No. of drawers
8
- Features
On wheels
- Load capacity per drawer
40 kg
- Max. height
985 mm
- Material
Steel plate
- Max. load (table)
1000 kg
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1909532 Gedore 1814931 Mobile bench (W x H x D) 1100 x 985 x 550 mm Blue
Information
Information 1909532 Gedore 1814931 Mobile bench (W x H x D) 1100 x 985 x 550 mm Blue
Description
Features
- Body:
- Dimensions: H 985 x W 1100 x D 550 mm
- 30 mm thick multiplex beech wood worktop, surface additionally protected by linseed oil varnish

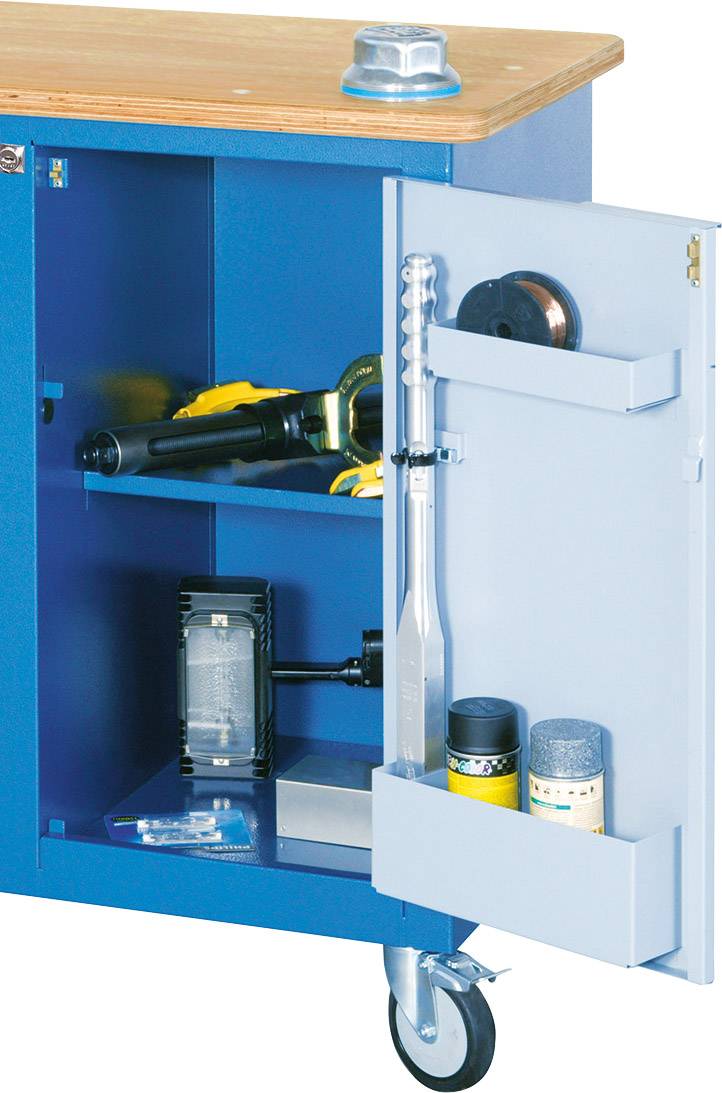

- Large storage space with shelf and door
- Heel protection for your safety
- Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue Drawers:
- Central locking with cylinder lock
- Wide drawers (W 480 x D 400 mm) fully extendable, removable
- Each drawer with safety locking, single-hand operation
- Ball-bearing guide rails
- Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
- Load capacity per drawer 40 kg, bottom heavy-duty drawer 60 kg (apart from no. 1504 1000)
- Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue GEDORE High-performance chassis:
- Total load capacity 700 kg, 500 kg when mobile
- 2 high-performance wheels on roller bearings (fixed castors Ø 200 mm)
- 2 smooth running wheels on ball bearings (swivel castors Ø 125 mm), both with total brake
- The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads Accessories:
- 4 distance modules no. 1500 ED-70 K
- Length- (LT) and crosswise (QT) dividers from zinc-plated sheet steel Options:
- Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
- Rear panel no. R 1504 L or RT 1504 L can be added
- Further drawer combinations on request
- Special colours and designs available on request
- Delivery without tools and accessories
Hints
Supplied without tools and accessories.
