Name: Gedore 7568-01 1210963 Torque wrench Pre-set 3/4" (20 mm) 155 - 760 Nm
Brand: Gedore
SKU: 1908472
Availability: BackOrder

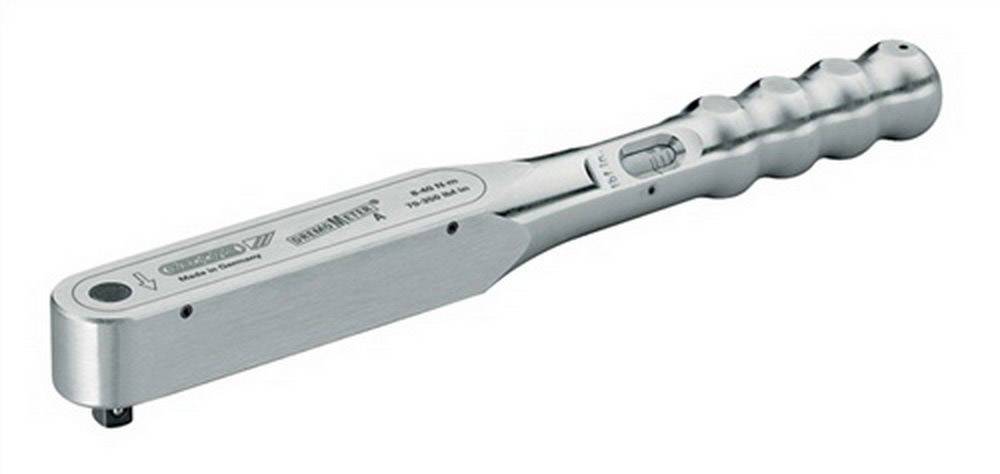

Metallic torque wrench with a knurled grip and graduated scale, for use in precision screw-tightening applications.

EAN:

Part number:

Item no:

Dispatches on Thu 10 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,395.00 / piece)

€ 1,395.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

7568-01 - GEDORE - Torque wrench DREMOMETER DRL A+S 3/4" 155-760 Nm
Technical advantage/function:
Locking and securing (A+S) prevents accidental or manipulated adjustment, thus more process safety
for the user classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is easily exceeded for your safety
, but robust (since housing made of one piece of aluminum) and insensitive, very workshop-friendly
no value shifts and influence of the accuracy by working both-handed or operating outside the grip (as with conventional torque wrenches).
Both the drive square as a pivot point are in an axis thus highly reliable for use, Extendable to work load of the user reduce
extremely low wear by reducing the force of the lever mechanics
forged lever chain from the Group's own quality forge
highest precision even with strong continuous use
long life and long service life
simple operation - fast and safe torque tightening
simple and double square for controlled right or left-handed tightening
Use:
Controlled screw suit in the range of 6 - 3000 N
m
Use in almost all industrial production areas
Design:
With certificate according to DIN EN ISO 6789, traceable to the national standard via the company's own DAkkS laboratory
Automatic short-travel release with sensitive and audible signal
Double scale with corresponding scale division (see table)
Type B, BC, C
with push button release Fixed threshing meter for series production, Where the same value must be set If
factory default setting is required, please specify N
m value when ordering (price on request)

Product type: Torque wrench

Features: Pre-set

Downforce: 3/4" (20 mm)

Torque (min.): 155 Nm

Torque (max.): 760 Nm

Trigger accuracy: 3 %

Graduation: 10 Nm

Length: 800 mm

DIN standard: DIN ISO 1174

Width: 45 mm

Height: 35 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Downforce

Length

Torque (max.)

Torque (min.)

Gedore 7568-01 1210963 Torque wrench Pre-set 3/4" (20 mm) 155 - 760 Nm

Item no:1908472

Dispatches on Thu 10 Dec

Conrad Electronic

This article

3/4" (20 mm)

800 mm

760 Nm

155 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,395.00^*

Gedore 7460-01 1427067 Torque wrench Calibrated to (DAkkS standards) For socket bits 8 - 40 Nm

Item no:1908453

Dispatches on Thu 10 Dec

Conrad Electronic

354 mm

40 Nm

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Gedore 7461-01 1427075 Torque wrench Calibrated to (DAkkS standards) For socket bits 25 - 120 Nm

Item no:1908454

Dispatches on Tue 10 Nov

1 Piece(s)Conrad Electronic

477.5 mm

120 Nm

25 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Gedore 7462-01 1225669 Torque wrench Calibrated to (DAkkS standards) For socket bits 80 - 400 Nm

Item no:1908455

Dispatches on Thu 10 Dec

Conrad Electronic

633 mm

400 Nm

80 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

Gedore 7463-10 1427083 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm

Item no:1908456

Dispatches on Tue 10 Nov

5 Piece(s)Conrad Electronic

834.5 mm

620 Nm

140 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,245.00^*

Gedore 7471-01 1521977 Torque wrench Calibrated to (DAkkS standards) For socket bits 520 - 1000 Nm

Item no:1908457

Dispatches on Thu 10 Dec

Conrad Electronic

1319.00 mm

1000 Nm

520 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,765.00^*

Gedore 7480-01 1427059 Torque wrench 9 x 12 mm socket square 8 - 40 Nm

Item no:1908458

Dispatches on Tue 10 Nov

2 Piece(s)Conrad Electronic

9 x 12 mm socket square

350 mm

40 Nm

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Gedore 7481-01 1427091 Torque wrench 9 x 12 mm socket square 25 - 120 Nm

Item no:1908459

Dispatches on Thu 10 Dec

Conrad Electronic

9 x 12 mm socket square

474 mm

120 Nm

25 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 585.00^*

Gedore 7482-01 1427105 Torque wrench 14 x 18 mm socket square 80 - 400 Nm

Item no:1908460

Dispatches on Tue 10 Nov

8 Piece(s)Conrad Electronic

14 x 18 mm socket square

642 mm

400 Nm

80 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

Gedore 7554-01 1210891 Torque wrench Calibrated to (ISO standards) 1/4" (6.3 mm) 6 - 30 Nm

Item no:1908461

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

1/4" (6.3 mm)

256 mm

30 Nm

6 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1908472 Gedore 7568-01 1210963 Torque wrench Pre-set 3/4" (20 mm) 155 - 760 Nm

Information

Information 1908472 Gedore 7568-01 1210963 Torque wrench Pre-set 3/4" (20 mm) 155 - 760 Nm

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Single- and double-square drive for controlled bi-directional tightening Use:
Controlled screw tightening in the range 6 - 3000 N
m
For use in almost all industrial manufacturing areas Features:
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with corresponding scale graduation (see table)
Type B, BC, C with push-button release
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)

Description

Features

Technical advantage/function:
Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Single- and double-square drive for controlled bi-directional tightening Use:
Controlled screw tightening in the range 6 - 3000 N
m
For use in almost all industrial manufacturing areas Features:
With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with corresponding scale graduation (see table)
Type B, BC, C with push-button release
Pre-set DREMOMETER for serial production wherever the same value always needs to be applied
The pre-setting can be made at the factory or by the user on suitable torque testers
If ordering, please specify the N
m value - if a fixed factory pre-setting is desired (price on request)
