Name: Gedore 8566-01 7683400 Torque wrench 1/2" (12.5 mm) 25 - 120 Nm
Brand: Gedore
SKU: 1908550
Availability: BackOrder

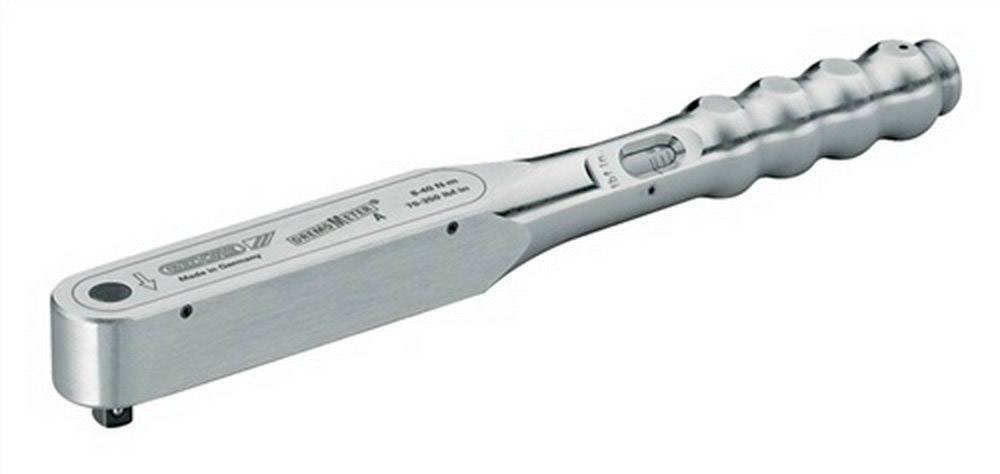

Metal torque wrench with a knurled grip, suitable for precise tightening torques in technical applications.

EAN:

Part number:

Item no:

Dispatches on Fri 11 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 535.00 / piece)

€ 535.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

8566-01 - GEDORE - Torque wrench DREMOMETER BL 1/2" 25-120 Nm
Application:
Controlled screw suit in the range of 25 - 120 N
m / 18 - 90 lbf
ft
Application in almost all industrial production areas
Design:
Classified according to DIN EN ISO 6789:2003 Type II Class A, with a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4 %) is exceeded for your safety
1/2" square with ball lock DIN 3120 - A 12.5, ISO 1174
automatic short-travel release with sensitive and audible signal
double scale with a division of 5 N
m and 5 lbf
ft
with push-button release
Technical advantage/function:
Light and robust - housing made of high-quality aluminum alloy
no value shifts and influence of the accuracy by working on both sides or operating outside the grip (as with conventional torque wrenches).
Both the drive square as a pivot point are in an axis thus highly reliable for use, Can be extended to reduce the work load of the user
extremely low wear by reducing the force of the lever mechanism
forged lever chain from the company's own quality forge
highest precision even with strong continuous use
long life and long service life
simple operation - fast and safe torque tightening
pleasant setting through shapely, Captive adjustment button at the end of the grip
single and double square for controlled right or left suit

Product type: Torque wrench

Downforce: 1/2" (12.5 mm)

Torque (min.): 25 Nm

Torque (max.): 120 Nm

Trigger accuracy: 3 %

Graduation: 5 Nm

Length: 462 mm

DIN standard: DIN ISO 1174

Weight: 1.85 kg

Width: 35 mm

Height: 55 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Downforce

Length

Torque (max.)

Torque (min.)

Gedore 7560-01 7708920 Torque wrench Pre-set 3/8" (10 mm) 8 - 40 Nm

Item no:1908463

Dispatches on Tue 10 Nov

1 Piece(s)Conrad Electronic

3/8" (10 mm)

326.5 mm

40 Nm

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 485.00^*

Gedore 7561-01 7709060 Torque wrench 1/2" (12.5 mm) 25 - 120 Nm

Item no:1908464

Dispatches on Tue 10 Nov

2 Piece(s)Conrad Electronic

1/2" (12.5 mm)

450 mm

120 Nm

25 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 559.00^*

Gedore 7562-10 7709650 Torque wrench Pre-set 1/2" (12.5 mm) 60 - 300 Nm

Item no:1908465

Dispatches on Tue 10 Nov

5 Piece(s)Conrad Electronic

1/2" (12.5 mm)

605 mm

300 Nm

60 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

Gedore 8460-01 7703610 Torque wrench Calibrated to (DAkkS standards) For socket bits 8 - 40 Nm

Item no:1908504

Dispatches on Tue 10 Nov

2 Piece(s)Conrad Electronic

366 mm

40 Nm

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Gedore 8461-01 7704260 Torque wrench Calibrated to (DAkkS standards) For socket bits 25 - 120 Nm

Item no:1908505

Dispatches on Fri 11 Dec

Conrad Electronic

489 mm

120 Nm

25 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 519.00^*

Gedore 8462-01 7704340 Torque wrench Calibrated to (DAkkS standards) For socket bits 80 - 400 Nm

Item no:1908506

Dispatches on Fri 11 Dec

Conrad Electronic

645 mm

400 Nm

80 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 649.00^*

Gedore 8463-10 7703020 Torque wrench Calibrated to (DAkkS standards) For socket bits 140 - 620 Nm

Item no:1908507

Dispatches on Tue 10 Nov

19 Piece(s)Conrad Electronic

846 mm

620 Nm

140 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,219.00^*

Gedore 8480-01 7714060 Torque wrench 9 x 12 mm socket square 8 - 40 Nm

Item no:1908509

Dispatches on Tue 10 Nov

6 Piece(s)Conrad Electronic

9 x 12 mm socket square

361 mm

40 Nm

8 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 499.00^*

Gedore 8481-01 7714140 Torque wrench 9 x 12 mm socket square 25 - 120 Nm

Item no:1908510

Dispatches on Tue 10 Nov

2 Piece(s)Conrad Electronic

9 x 12 mm socket square

484 mm

120 Nm

25 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 555.00^*

Gedore 8482-01 7714220 Torque wrench 14 x 18 mm socket square 80 - 400 Nm

Item no:1908511

Dispatches on Fri 11 Dec

Conrad Electronic

14 x 18 mm socket square

653 mm

400 Nm

80 Nm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 739.00^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1908550 Gedore 8566-01 7683400 Torque wrench 1/2" (12.5 mm) 25 - 120 Nm

Information

Information 1908550 Gedore 8566-01 7683400 Torque wrench 1/2" (12.5 mm) 25 - 120 Nm

Features

Use:
Controlled screw tightening in the range 25-120 N
m / 18-90 lbf
ft
For use in almost all industrial manufacturing areas Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 5 N
m and 5 lbf
ft
With push-button release
Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single- and double-square drive for controlled bi-directional tightening

Description

Features

Use:
Controlled screw tightening in the range 25-120 N
m / 18-90 lbf
ft
For use in almost all industrial manufacturing areas Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
Automatic short-path actuation with tactile impulse and audible signal
Dual scale with a scale graduation of 5 N
m and 5 lbf
ft
With push-button release
Technical advantage/Function:
Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
Extremely low wear attributable to reduced forces in a unique lever mechanism
Forged lever chain from our own quality forge
Maximum precision even when subjected to extreme continuous use
Long life cycles and tool lives
Easy operation - fast and safe torque tightening
Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Single- and double-square drive for controlled bi-directional tightening
