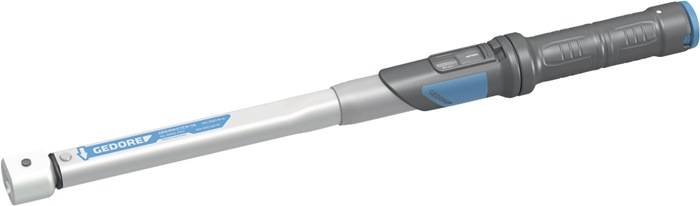

Name: Gedore DMSE 100 2641445 Torque wrench 9 x 12 mm socket square 20 - 100 Nm
Brand: Gedore
SKU: 1908339
Availability: BackOrder

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

19 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Technical specifications

DMSE 100 - GEDORE - torque wrench DREMASTER SE 9x12, 20-100 Nm
controlled screw suit in the most common range of 20-100 N
m / 15-75 lbf
ft (guide value screws M7-10.9 to M20-6.9)
Adjustable, triggering and robust pipe torque wrench with square-wave holder for industry and trade
classified according to DIN EN ISO 6789:2003 Type II Class A, With a traceable factory certificate. Calibrated for a permissible deviation of +/- 3 % and better. The specification of the standard (+/- 4%) is exceeded for your safety.
For the controlled right and left suit robust, semi-gloss chrome-plated steel tube construction, with chrome-plated square holder (9x12 mm) and high-quality plastic parts
ergonomically shaped, 2-component plastic handle with calibration aid
Switching between main scale N
m and secondary scale lbf
ft, for avoiding reading errors when setting the desired torque.
With micrometer scale for N
m main scale for setting scale-wiping values
of the embrittlement system generates a sensitive and audible trigger signal
ergonomic system for torque adjustment with indicator symbol
Possibility of quick adjustment by angle screwdriver,
not included in the delivery secured adjustment system
Factory calibration jig measure: 17.5 mm (9x12)
actuation only with push-in tools with a uniform pitch - otherwise, value shifts may occur
depending on the tool insert, both forwards (e.g. Open-end wrenches) or to the side (e.g. Reversible ratchet and socket wrench insert).
Patent pending

Documents & Downloads

User & Safety Instructions 1908339 Gedore DMSE 100 2641445 Torque wrench 9 x 12 mm socket square 20 - 100 Nm

Information 1908339 Gedore DMSE 100 2641445 Torque wrench 9 x 12 mm socket square 20 - 100 Nm

Use:
Controlled screw tightening in the most common range of 20 - 400 N
m / 15 - 300 lbf
ft (guide for screws M7-10.9 to M20-6.9)
Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
For controlled bi-directional tightening
Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts
Ergonomically shaped plastic grip with calibration aid
Change-over between N
m main scale and lbf
ft ancillary scale to avoid reading errors when setting the torque wanted.
With micrometre scale for main N
m scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment with reference symbol
Provision for rapid setting with hexagon allen key, not included
Secured adjusting/setting system
Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)

Use:
Controlled screw tightening in the most common range of 20 - 400 N
m / 15 - 300 lbf
ft (guide for screws M7-10.9 to M20-6.9)
Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades Features:
Classified to DIN EN ISO 6789:2017 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
For controlled bi-directional tightening
Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18mm) and high-grade plastic parts
Ergonomically shaped plastic grip with calibration aid
Change-over between N
m main scale and lbf
ft ancillary scale to avoid reading errors when setting the torque wanted.
With micrometre scale for main N
m scale for setting interim values
Release system triggers a tactile and audible signal
Ergonomic system for torque adjustment with reference symbol
Provision for rapid setting with hexagon allen key, not included
Secured adjusting/setting system
Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
