Gesipa 1433939 Blind rivet Stainless steel Stainless steel Stainless steel 250 pc(s)

Heavy-duty metal screw with a ribbed shaft and thread, suitable for secure fixings in concrete or masonry.

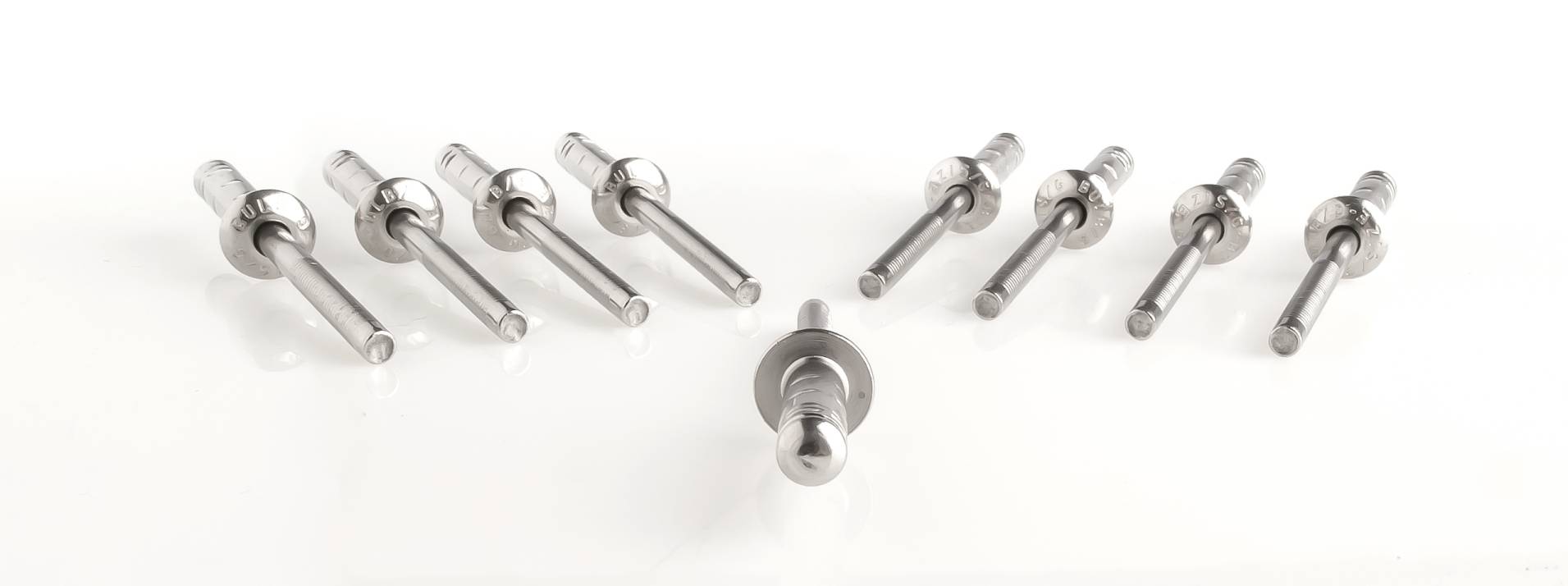

Eight screws in a row on a white background, with one screw centrally positioned and lying horizontally.

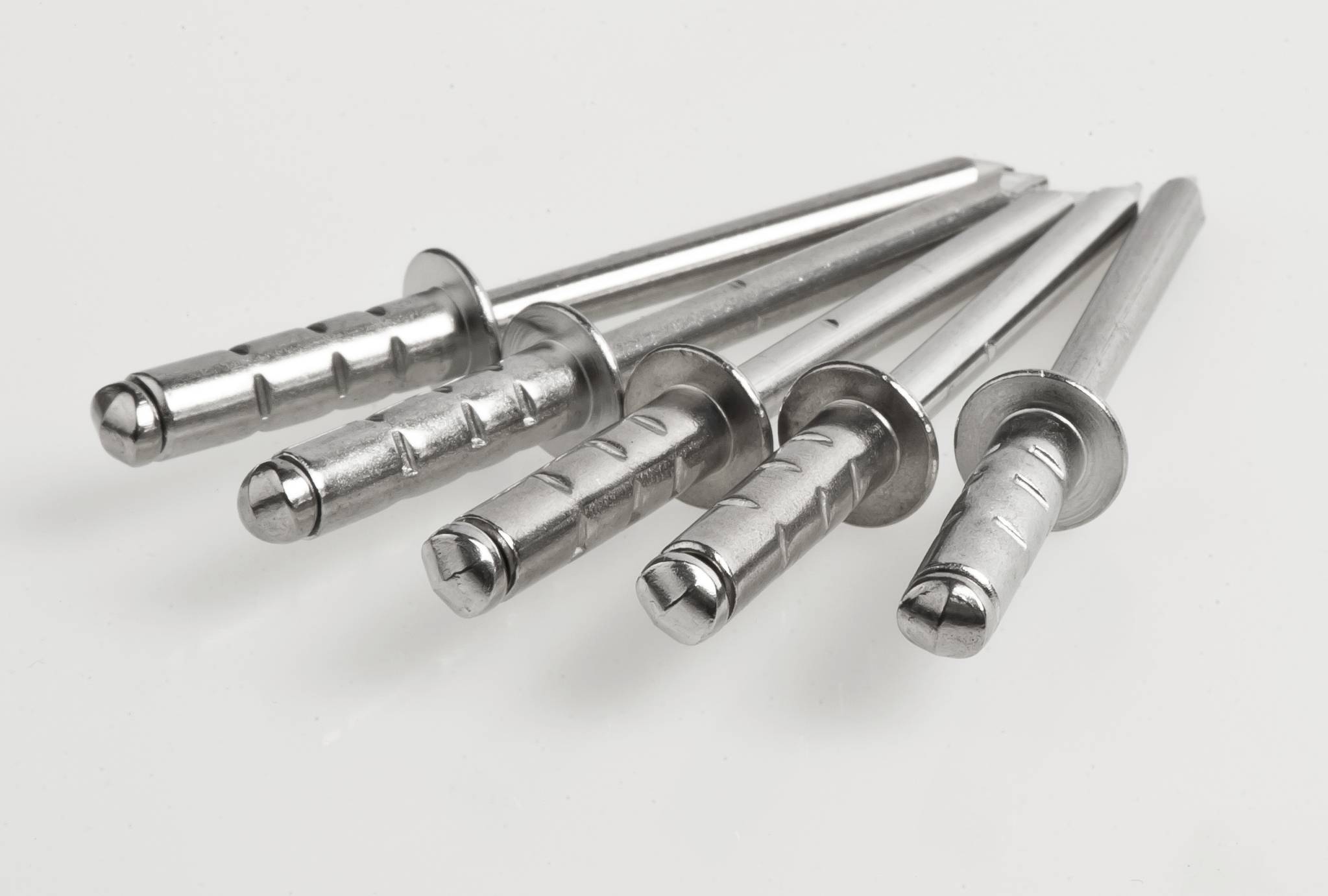

Five metal wall plugs are lying in a row on a white surface. The wall plugs are silvery and have ribbed surfaces.

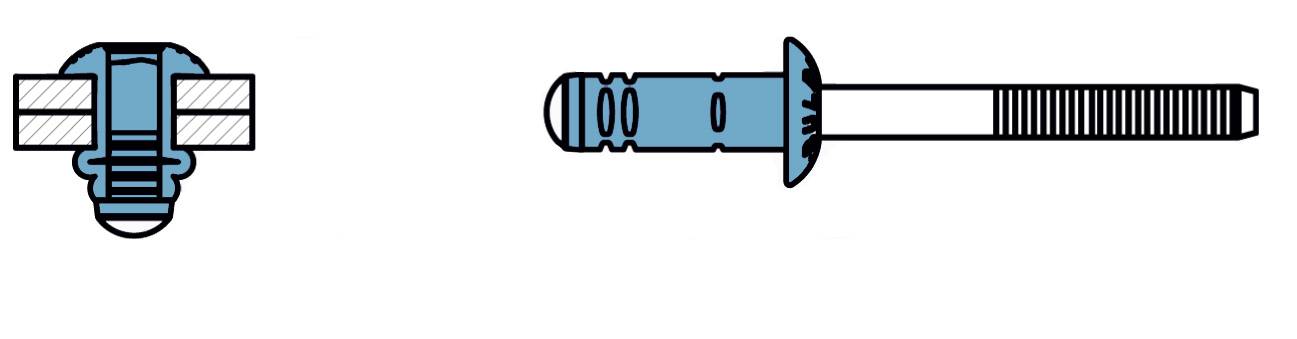

Drawing of a blind rivet: Left, the rivet in cross-section, right, the rivet in full profile. Shows structure and mode of operation.
1/4
Product type
Blind rivet
Material (spike)
Stainless steel
Material (sleeve)
Stainless steel
Material
Stainless steel
Max. clamping range
8.0 mm
EAN:
Part number:
Item no:
Dispatches on Mon 30 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 250 pc(s))
Total (€ 0.60 / piece)
€ 149.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Blind rivet

Content

250 pc(s)

Material (spike)

Stainless steel

Material (sleeve)

Stainless steel

Material

Stainless steel

Max. clamping range

8.0 mm

Min. clamping range

6.0 mm

Tubular rivet diameter

6.4 mm

Tubular rivet length

17 mm

Clamping range

6.0 - 8.0 mm

Head Ø

13

Head height

3 mm

Material properties

A2

Material properties (spikes)

A2

Material properties (sleeves)

A2

Rivet mandrel diameter

4.25 mm

Shear force

10000 N

Head shape

Truss head

Tensile force (max.)

8800 N
